Machine Information

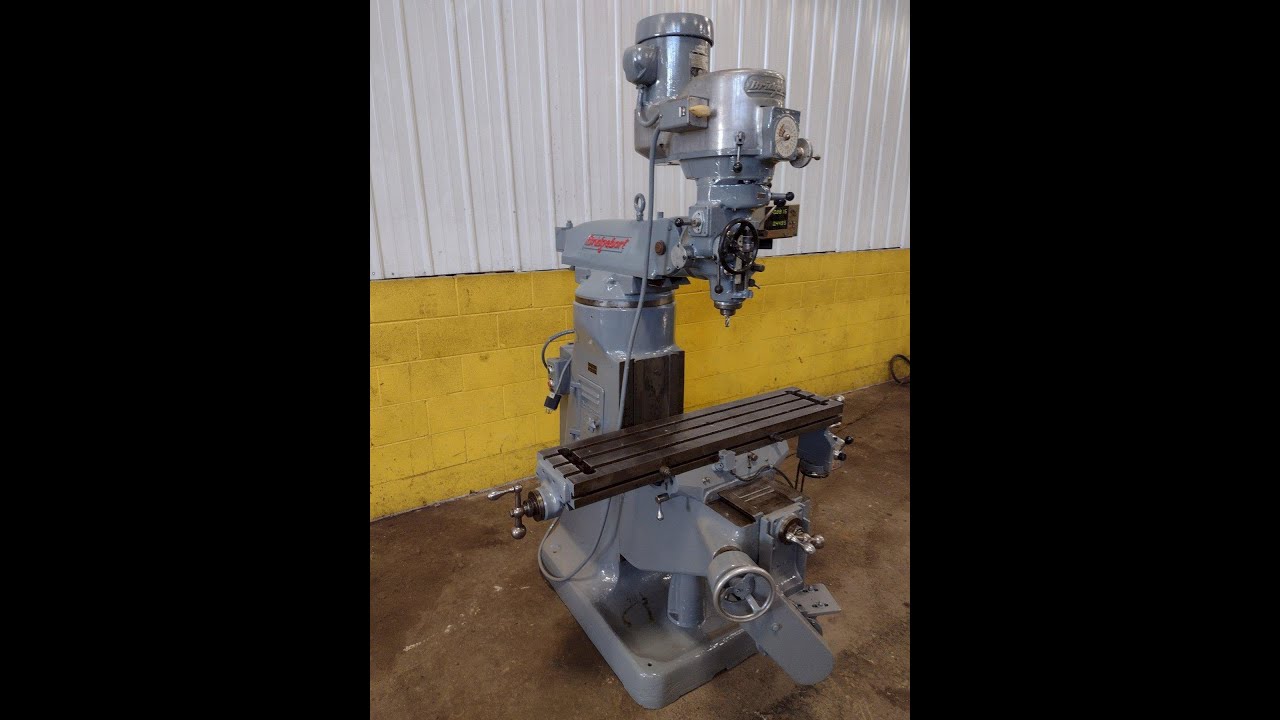

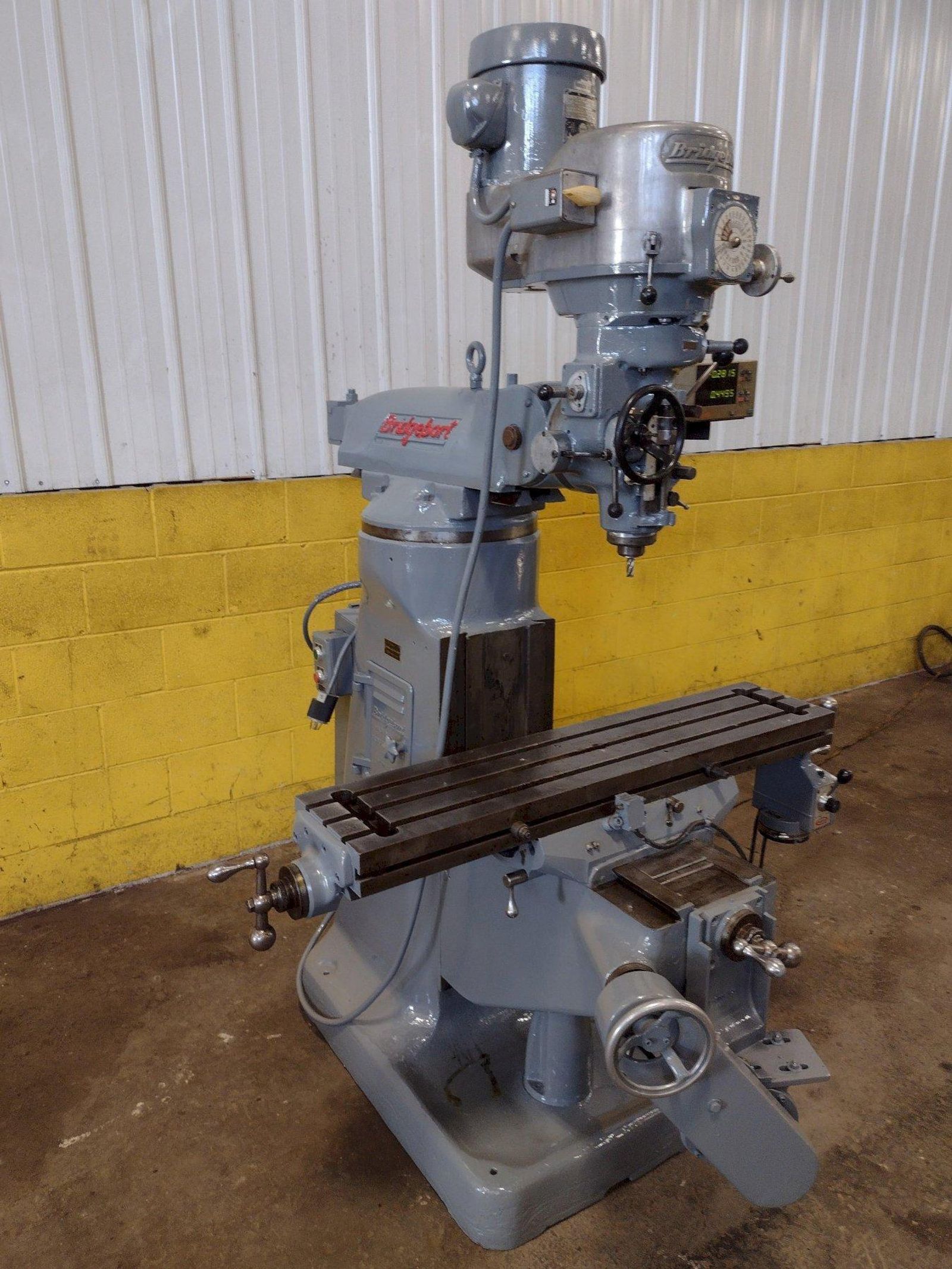

1.5 HP BRIDGEPORT RAM TYPE VERTICAL MILL: STOCK #18810

Stock #: 18810

Equipped With

SERIAL .............................. J139861
MODEL ............................... SERIES I
AREA OF TABLE ....................... 42" X 9"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
CHROME WAYS ......................... YES
2 AXIS DIGITAL READOUT .............. YES
POWER FEEDS ......................... 2 AXIS
1 SHOT LUBE ......................... YES
MOTOR ............................... 1-1/2 HORSEPOWER

1.5 HP BRIDGEPORT RAM TYPE VERTICAL MILL: STOCK #18810

Stock # 18810

Request a Quote

Share Machine

Print Details

Make an Offer
























Download Images

View All Images

Machine Specifications

SERIAL .............................. J139861

MODEL ............................... SERIES I

AREA OF TABLE ....................... 42" X 9"

SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM

SPINDLE FEEDS ....................... .0015, .003, .006 IPR

LONGITUDINAL TABLE TRAVEL ........... 30"

CROSS TRAVEL ........................ 12"

VERTICAL KNEE TRAVEL ................ 16"

QUILL TRAVEL ........................ 5"

RAM TRAVEL .......................... 12"

DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"

TAPER IN SPINDLE .................... R8

HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY

HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY

CHROME WAYS ......................... YES

2 AXIS DIGITAL READOUT .............. YES
POWER FEEDS ......................... 2 AXIS

1 SHOT LUBE ......................... YES

MOTOR ............................... 1-1/2 HORSEPOWER
