Machine Information

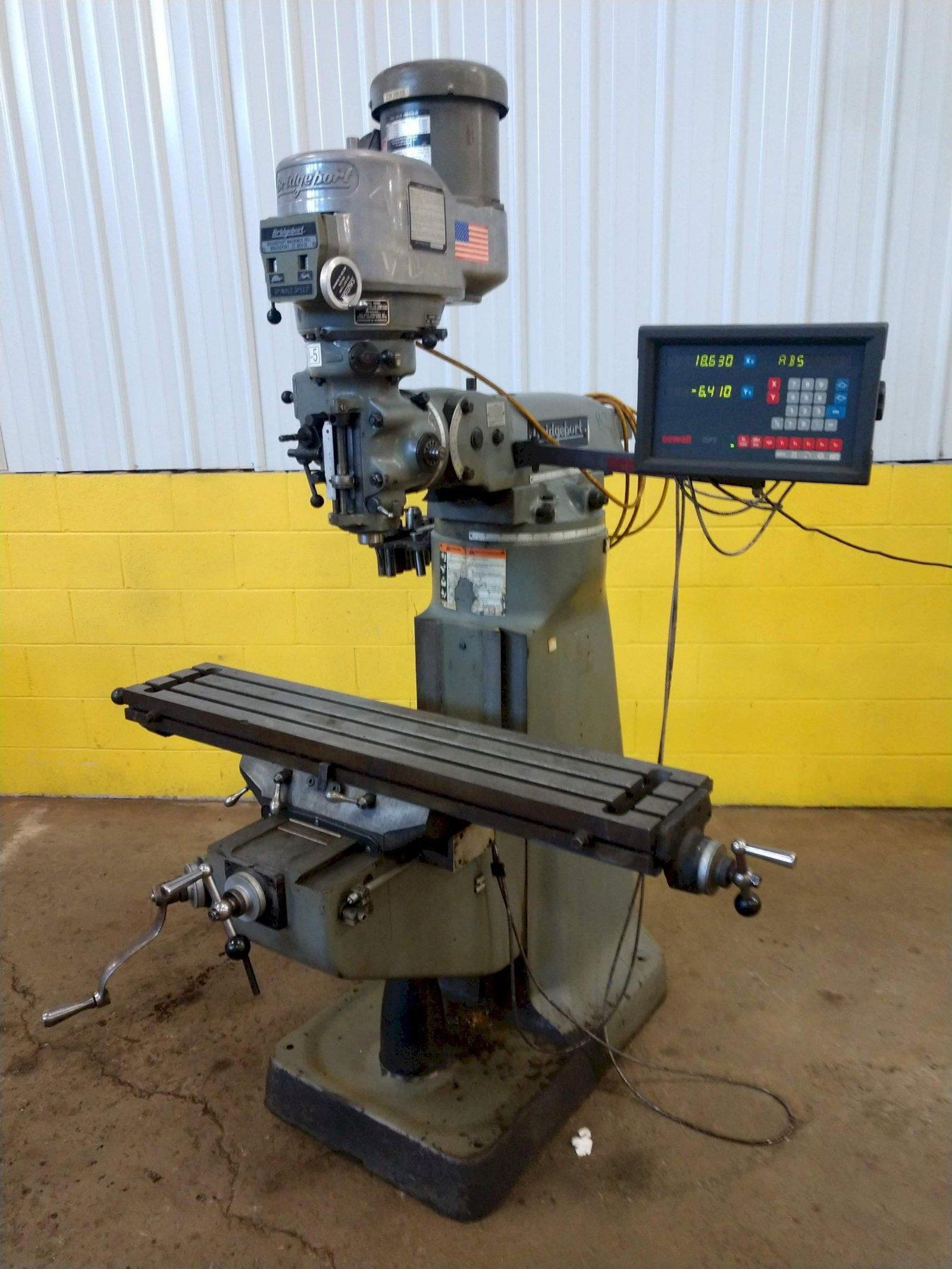

2 HP BRIDGEPORT SERIES I VERTICAL KNEE MILL: STOCK #13117

Stock #: 13117

Equipped With

SERIAL .............................. 12BR259412
MODEL ............................... SERIES I
HEAD SERIAL # ....................... J284778
HEAD YEAR NEW ....................... 1994
AREA OF TABLE ....................... 9" X 42"
SPINDLE SPEEDS, VARIABLE ............ 60 TO 4200 RPM
SPINDLE FEEDS ....................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........... 30"
CROSS TRAVEL ........................ 12"
VERTICAL KNEE TRAVEL ................ 16"
QUILL TRAVEL ........................ 5"
RAM TRAVEL .......................... 12"
DEPTH OF THROAT ..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE .................... R8
HEAD TILTS, FRONT/BACK .............. 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............ 90 DEGREE EITHER WAY
DIGITAL READ OUTS ................... 2 AXIS
CHROME WAYS ......................... YES
1 SHOT LUBE ......................... YES
MOTOR ............................... 2 HORSEPOWER
