Machine Information

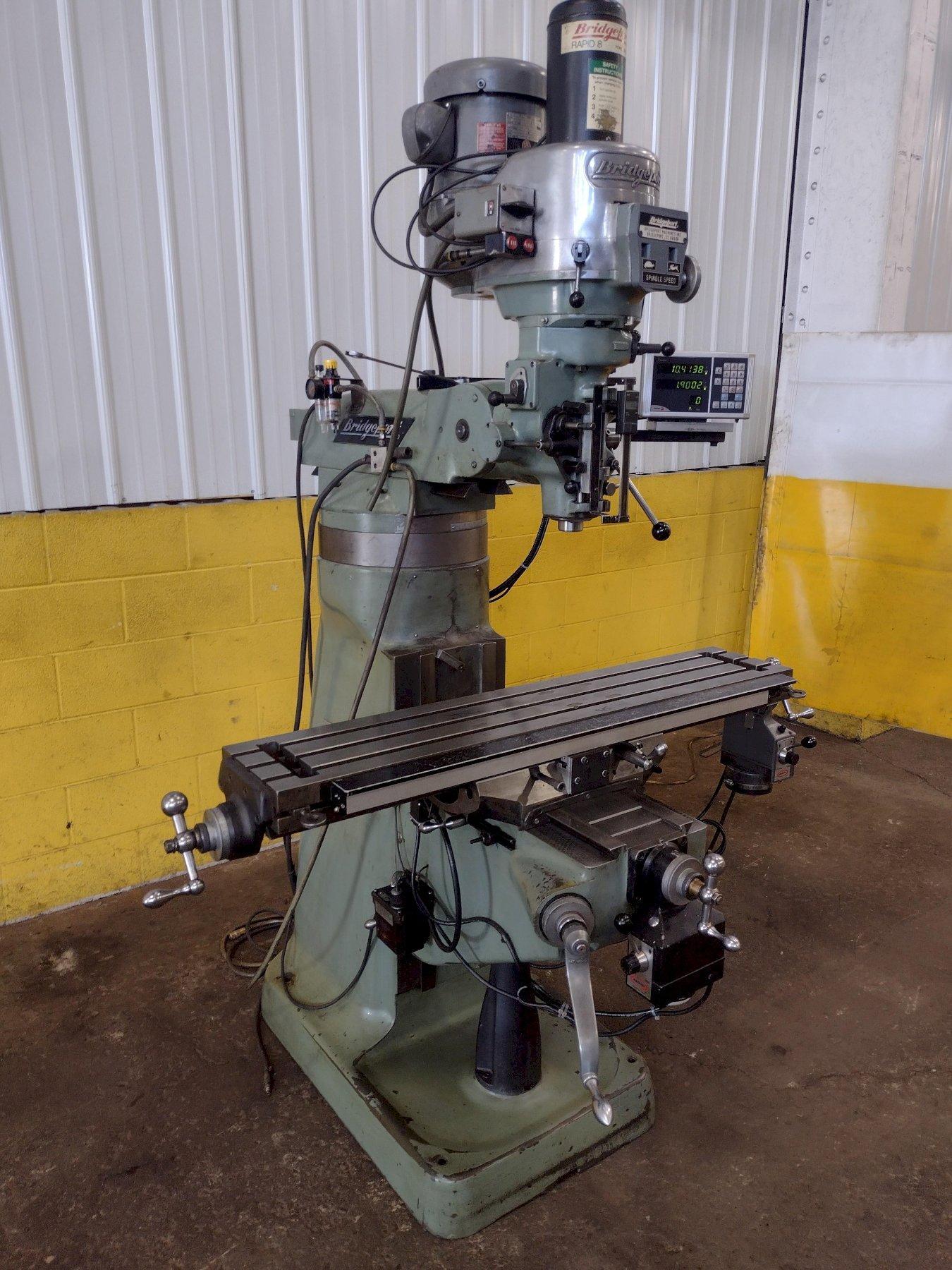

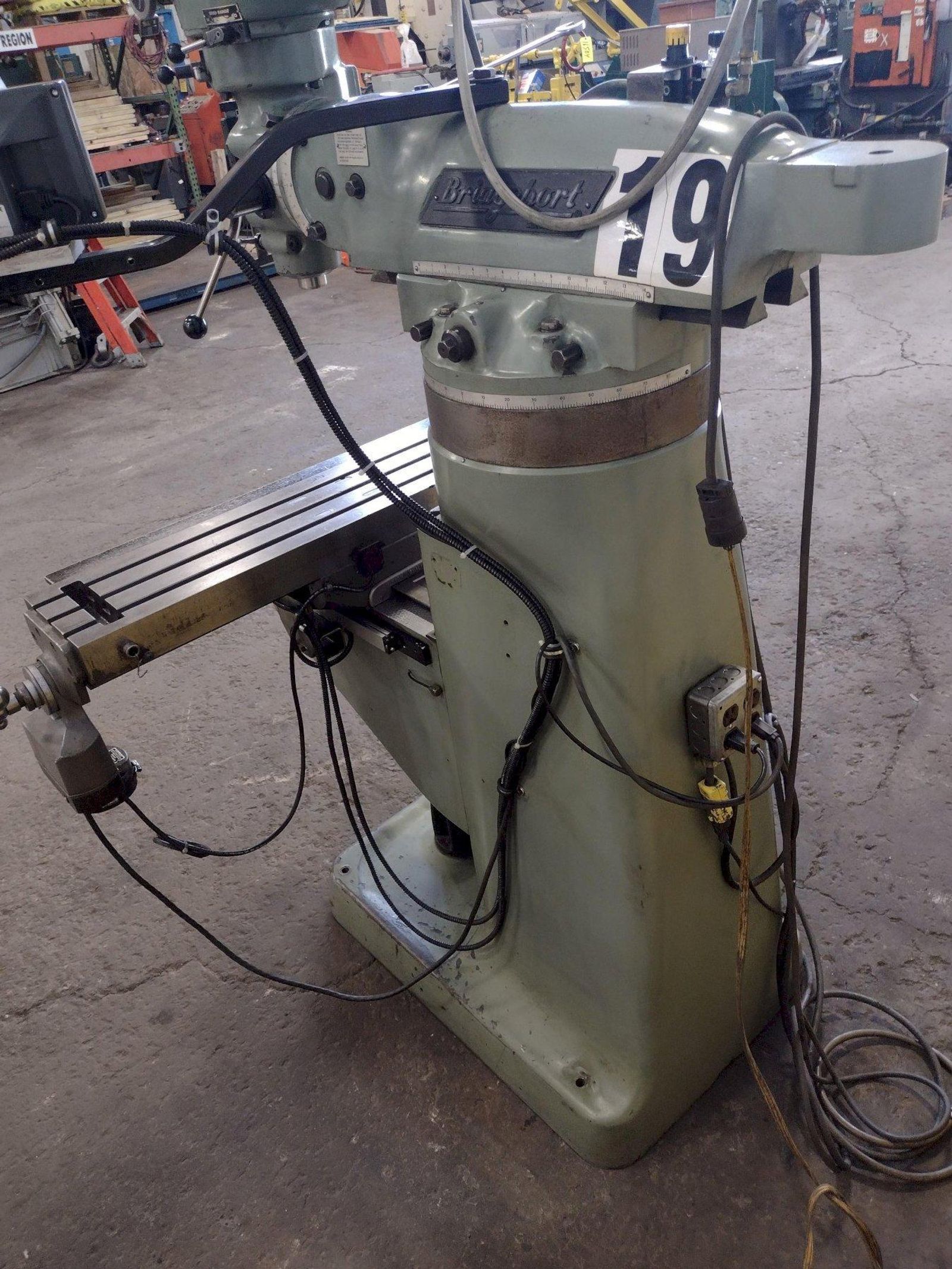

2 HP BRIDGEPORT 2J SERIES I VERTICAL RAM TYPE MILL WITH DRO & POWER FEED: STOCK 16746

Stock #: 16746

Equipped With

SERIAL ...................... 120222
MODEL ....................... SERIES I 2J
AREA OF TABLE ............... 42" X 9"
SPINDLE SPEEDS, VARIABLE .... 60 TO 4200 RPM
SPINDLE FEEDS ............... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ... 30"
CROSS TRAVEL ................ 12"
VERTICAL KNEE TRAVEL ........ 16"
QUILL TRAVEL ................ 5"
RAM TRAVEL .................. 12"
DEPTH OF THROAT ............. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ............ R8
HEAD TILTS, FRONT/BACK ...... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT .... 90 DEGREE EITHER WAY
CHROME WAYS ................. YES
2 AXIS DIGITAL READOUTS ..... YES
POWER FEED .................. YES
1 SHOT LUBE ................. YES
MOTOR ....................... 2 HORSEPOWER

Buy Machines

2 HP BRIDGEPORT 2J SERIES I VERTICAL RAM TYPE MILL WITH DRO & POWER FEED: STOCK 16746

Stock # 16746

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 120222

MODEL ....................... SERIES I 2J
AREA OF TABLE ............... 42" X 9"
SPINDLE SPEEDS, VARIABLE .... 60 TO 4200 RPM
SPINDLE FEEDS ............... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ... 30"
CROSS TRAVEL ................ 12"
VERTICAL KNEE TRAVEL ........ 16"
QUILL TRAVEL ................ 5"
RAM TRAVEL .................. 12"
DEPTH OF THROAT ............. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ............ R8
HEAD TILTS, FRONT/BACK ...... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT .... 90 DEGREE EITHER WAY
CHROME WAYS ................. YES
2 AXIS DIGITAL READOUTS ..... YES
POWER FEED .................. YES
1 SHOT LUBE ................. YES
MOTOR ....................... 2 HORSEPOWER
