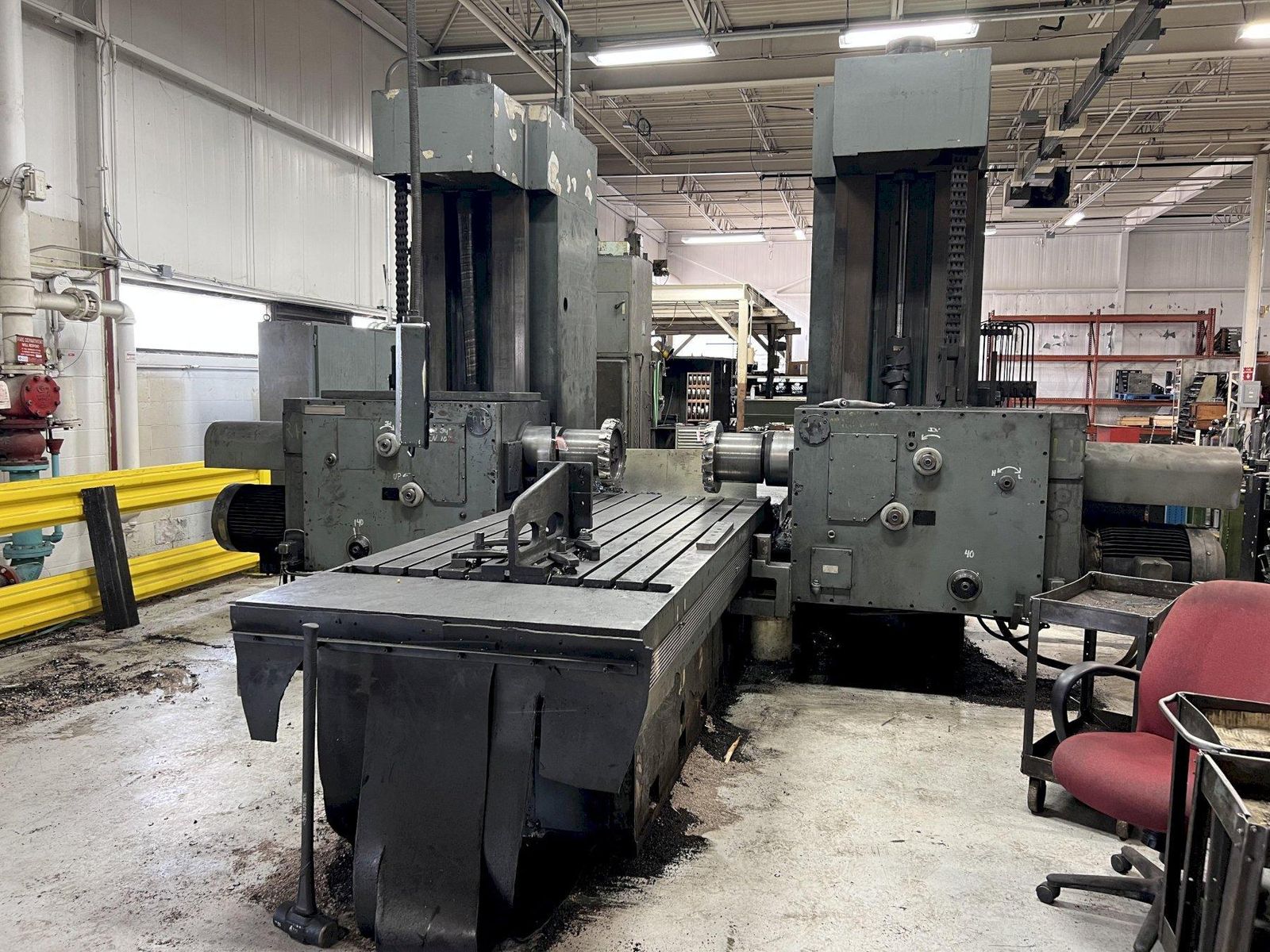

Stock #: 18377
SERIAL ............................... 21-393MODEL ................................ FP7V2
SPINDLE FACE TO TABLE CENTER ......... 9.5" TO 13.5"SPINDLE SPEEDS ....................... (16) 12 TO 560 RPMSPINDLE MOTORS (EACH) ................ 50 HPSPINDLE TAPER ........................ 60 ISO
DIAMETER OF QUILL .................... 12"QUILL TRAVEL ......................... 12-1/2"
QUILL ADVANCE & RETRACT .............. YES
QUILL INFEED FEEDS ................... 0.02 TO 0.394 IPM
QUILL CLAIMPING ...................... HYDRAULIC
FACING MILL HEADS ON MACHINE ......... (2) 16" DIAMETERTABLE SIZE ........................... 49" x 128"T-SLOTTED WORKING SURFACE AREA ....... 49" x 98"
NUMBER OF T-SLOTS .................... 9TABLE LONGITUDINAL TRAVEL (X-AXIS) ... 87"
TABLE TRABVERSE FEEDS ................ (16) 1-1/4 TO 40 IPMTABLE RAPID TRAVERSE ................. 160 IPM
TABLE TRAVERSING MOTOR ............... 10 HPHEAD VERTICAL TRAVEL ON COLUMNS ...... 50"
HEAD VERTICAL FEEDS .................. (16) 5/8 TO 20 IPMHEAD VERTICAL RAPID TRAVERSE ......... 80 IPM
HEAD VERTICAL TRAVERSING MOTORS ...... 6 HP
DISTANCE BETWEEN COLUMNS ............. 60"OPERATORS PENDANT CONTROL ............ YESCOOLANT .............................. YES
Stock # 18377
SERIAL ............................... 21-393
MODEL ................................ FP7V2
SPINDLE FACE TO TABLE CENTER ......... 9.5" TO 13.5"
SPINDLE SPEEDS ....................... (16) 12 TO 560 RPM
SPINDLE MOTORS (EACH) ................ 50 HP
SPINDLE TAPER ........................ 60 ISO
DIAMETER OF QUILL .................... 12"
QUILL TRAVEL ......................... 12-1/2"
QUILL ADVANCE & RETRACT .............. YES
QUILL INFEED FEEDS ................... 0.02 TO 0.394 IPM
QUILL CLAIMPING ...................... HYDRAULIC
FACING MILL HEADS ON MACHINE ......... (2) 16" DIAMETERTABLE SIZE ........................... 49" x 128"
T-SLOTTED WORKING SURFACE AREA ....... 49" x 98"
NUMBER OF T-SLOTS .................... 9TABLE LONGITUDINAL TRAVEL (X-AXIS) ... 87"
TABLE TRABVERSE FEEDS ................ (16) 1-1/4 TO 40 IPM
TABLE RAPID TRAVERSE ................. 160 IPM
TABLE TRAVERSING MOTOR ............... 10 HPHEAD VERTICAL TRAVEL ON COLUMNS ...... 50"
HEAD VERTICAL FEEDS .................. (16) 5/8 TO 20 IPM
HEAD VERTICAL RAPID TRAVERSE ......... 80 IPM
HEAD VERTICAL TRAVERSING MOTORS ...... 6 HP
DISTANCE BETWEEN COLUMNS ............. 60"OPERATORS PENDANT CONTROL ............ YES
COOLANT .............................. YES
