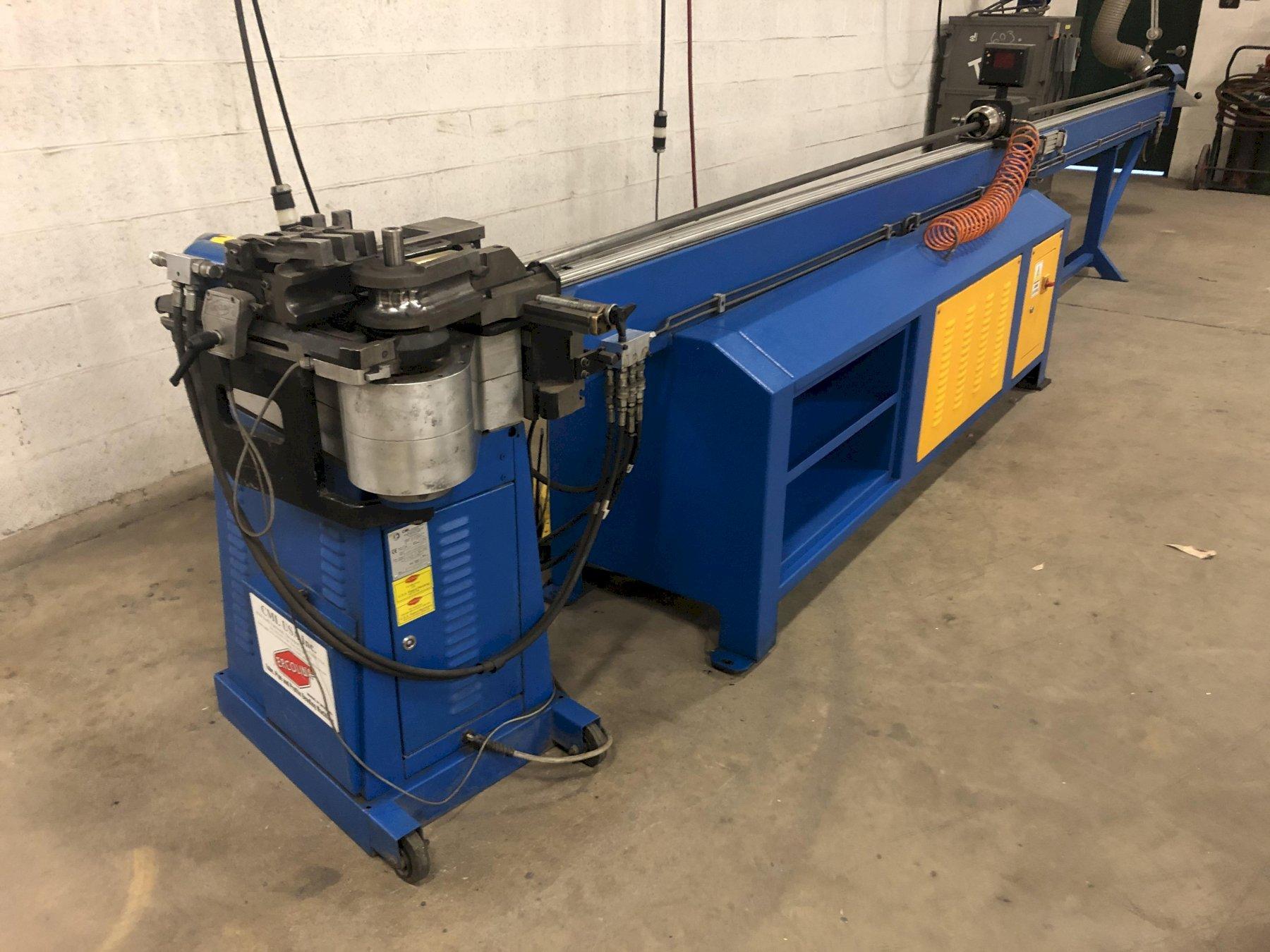

2.5" ERCOLINA MODEL #030 ROTARY DRAW TUBE BENDER WITH MANDREL TABLE, NEW 2005: STOCK 13500

Stock #: 13500

Equipped With

SERIAL  3005088
NEW 2005
MODEL 030



Tube Capacity: Mild Steel: 2 1/2″; Stainless: 2 1/2″; Square Tube: 2″

Pipe Capacity: 1 1/2″, Sch. 40

Bending Radius: 1.5 x Ø

Shaft Rotation: 210°

Bending Angle: 180°

Tailstock Capacity: 2 3/8″

Material Length: (20′ Table) 240″

Mandrel Table: 165″

Number of Programs: (30) Standard

Precision of Bend Angle: +/- 1°

Motor: 220v, 480v / 3ph



Variable Bending Speed

Ideal for Bending Handrail, Thin Wall Mild Steel, Stainless Steel, Bend Grade Aluminum, and Other Materials

Programmable Bend Sequencing and Mandrel Retraction

Independent Clamp and Pressure Die Adjustment

Reinforced Tool Mounting Shaft with Heavy Duty Swing Arm for Maximum Rigidity

Micrometer Wiper Die Adjustment

Secondary Hydraulic Pressure Die Stabilization System

Quick-Change Tooling Reduces Set-Up Time

Table Standard with Pneumatic Material Clamping and DRO System for Linear and Rotational Positioning

Bending Software Available for Part Layout Guide

Base Machine Converts to Accept Ercolina Non-Mandrel Tooling

Reference Display of Y & B Axis to Assist Set-Up

Y – Feeding Manual with Adjustable Stops

B – Feeding Manual with Adjustable Stops

C – NC Programmable Bend Angle



Mandrel Die Parts to Bend to Following Material:

1 1/4″ Sch. 10, 63mm CLR

1 1/4″ Sch. 40, 63mm CLR

1 1/4″ Sch. 10, 76mm CLR

1 1/4″ Sch. 40, 76mm CLR

1 1/2″ Sch. 10, 76mm CLR

1 1/2″ Sch. 40, 76mm CLR

Draw Bender:

1/2″ Sch. 40 Pipe, 46mm CLR

3/4″ Sch. 40 Pipe, 56mm CLR

1″ Sch. 40 Pipe, 67mm CLR

1 1/4″ Sch. 40 Pipe, 90mm CLR

1 1/4″ Sch. 40 Pipe, 90mm CLR (Polished Die with Nylon Shoe)

1 1/4″ Sch. 40 Pipe, 150mm CLR

1 1/4″ Sch. 40 Pipe, 150mm CLR (Polished Die with Nylon Shoe)

1 1/2″ Sch. 40 Pipe, 100mm CLR

2″ Sch. 40 Pipe, 150mm CLR

1″ Tube, 82mm CLR

1 1/4″ Tube, 112mm CLR

1″ Rectangular Tube, 82mm CLR



Buy Machines

2.5" ERCOLINA MODEL #030 ROTARY DRAW TUBE BENDER WITH MANDREL TABLE, NEW 2005: STOCK 13500

Stock # 13500

Share Machine
Print Details

Machine Specifications

SERIAL  3005088
NEW 2005
MODEL 030



Tube Capacity: Mild Steel: 2 1/2″; Stainless: 2 1/2″; Square Tube: 2″

Pipe Capacity: 1 1/2″, Sch. 40

Bending Radius: 1.5 x Ø

Shaft Rotation: 210°

Bending Angle: 180°

Tailstock Capacity: 2 3/8″

Material Length: (20′ Table) 240″

Mandrel Table: 165″

Number of Programs: (30) Standard

Precision of Bend Angle: +/- 1°

Motor: 220v, 480v / 3ph



Variable Bending Speed

Ideal for Bending Handrail, Thin Wall Mild Steel, Stainless Steel, Bend Grade Aluminum, and Other Materials

Programmable Bend Sequencing and Mandrel Retraction

Independent Clamp and Pressure Die Adjustment

Reinforced Tool Mounting Shaft with Heavy Duty Swing Arm for Maximum Rigidity

Micrometer Wiper Die Adjustment

Secondary Hydraulic Pressure Die Stabilization System

Quick-Change Tooling Reduces Set-Up Time

Table Standard with Pneumatic Material Clamping and DRO System for Linear and Rotational Positioning

Bending Software Available for Part Layout Guide

Base Machine Converts to Accept Ercolina Non-Mandrel Tooling

Reference Display of Y & B Axis to Assist Set-Up

Y – Feeding Manual with Adjustable Stops

B – Feeding Manual with Adjustable Stops

C – NC Programmable Bend Angle



Mandrel Die Parts to Bend to Following Material:

1 1/4″ Sch. 10, 63mm CLR

1 1/4″ Sch. 40, 63mm CLR

1 1/4″ Sch. 10, 76mm CLR

1 1/4″ Sch. 40, 76mm CLR

1 1/2″ Sch. 10, 76mm CLR

1 1/2″ Sch. 40, 76mm CLR

Draw Bender:

1/2″ Sch. 40 Pipe, 46mm CLR

3/4″ Sch. 40 Pipe, 56mm CLR

1″ Sch. 40 Pipe, 67mm CLR

1 1/4″ Sch. 40 Pipe, 90mm CLR

1 1/4″ Sch. 40 Pipe, 90mm CLR (Polished Die with Nylon Shoe)

1 1/4″ Sch. 40 Pipe, 150mm CLR

1 1/4″ Sch. 40 Pipe, 150mm CLR (Polished Die with Nylon Shoe)

1 1/2″ Sch. 40 Pipe, 100mm CLR

2″ Sch. 40 Pipe, 150mm CLR

1″ Tube, 82mm CLR

1 1/4″ Tube, 112mm CLR

1″ Rectangular Tube, 82mm CLR



Specifications
Capacity 2.5 inches
Dimensions 260 X 32 X 44 H
Weight 1600 pounds
