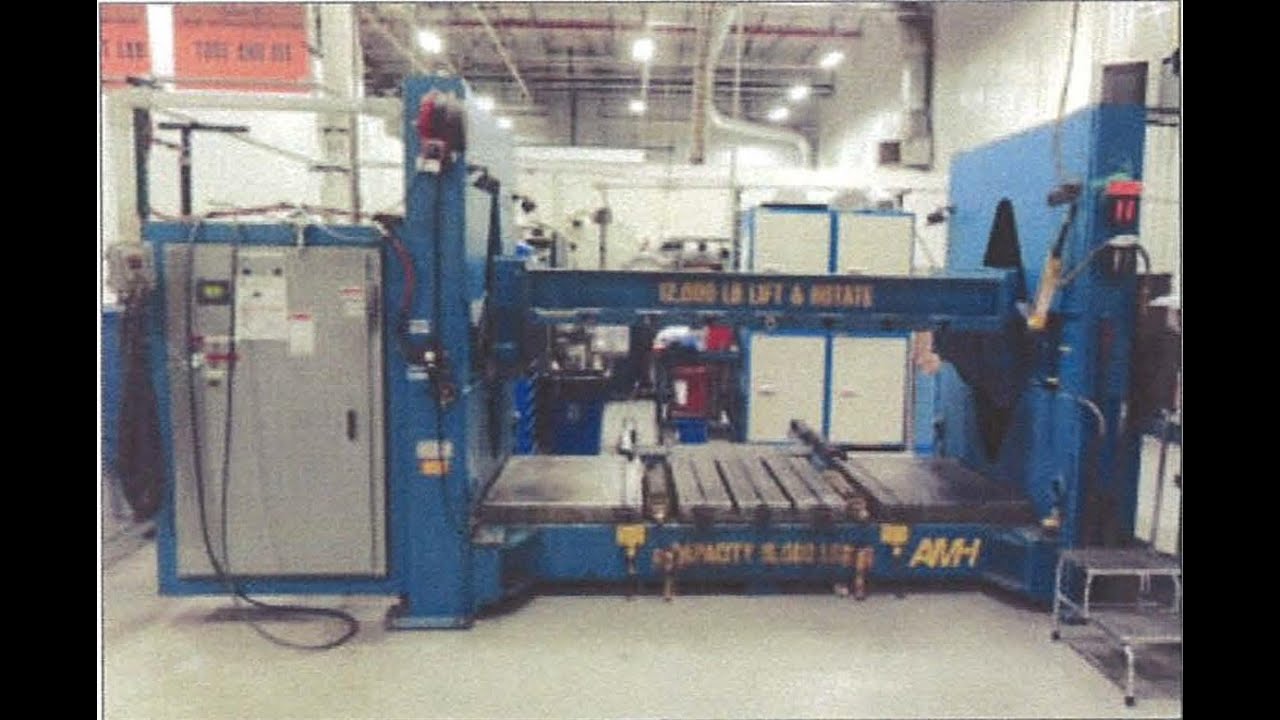

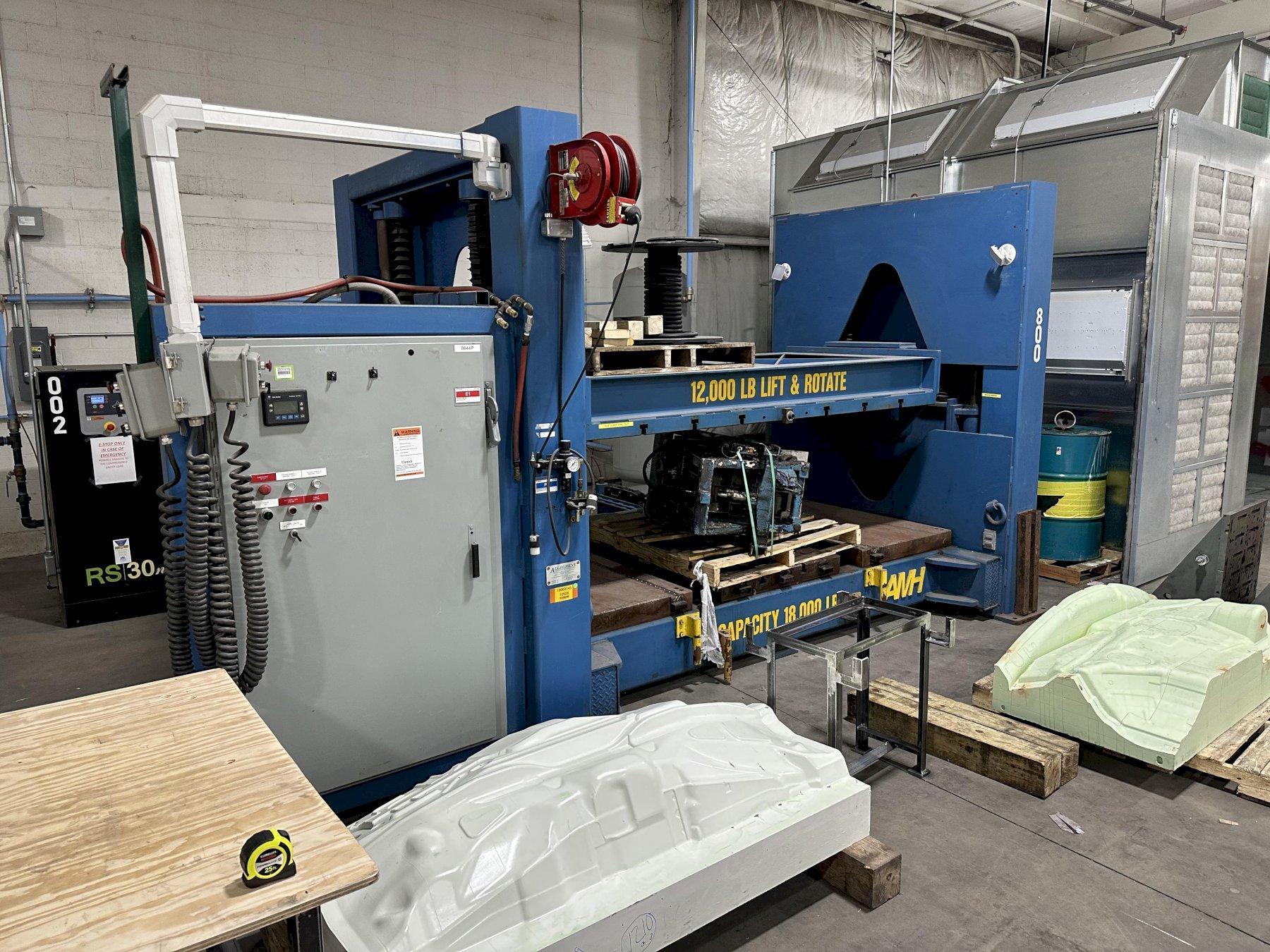

Stock #: 18395
SERIAL ............................ 1485A-05MODEL ............................. DS-180-96-48YEAR .............................. 2005LOAD CAPACITY ..................... 18,000 LBSLIFT & ROTATE CAPACITY ............ 12,000 LBSPLATEN SIZE ....................... 96" X 48" L-R X F-BMAX OPEN HEIGHT ................... 60"MAX UPPER PLATEN LIFT TRAVEL ...... 42"ROTATING POSITION UPPER PLATEN .... 0 TO 180 DEGREES
MOTORS ........................... 5 & 2HPEQUIPPED WITH:ALLEN BRADLEY PANELVIEW 300 MICRO CONTROLT SLOTTED SLIDING BOLSTER WITH ROLLER SUPPORTST SLOTTED UPPER PLATENPOWERED LIFT AND ROTATE ADJUSTMENTREMOTE HAND PUSH BUTTON CONTROL PENDANT
Stock # 18395
SERIAL ............................ 1485A-05
MODEL ............................. DS-180-96-48
YEAR .............................. 2005
LOAD CAPACITY ..................... 18,000 LBS
LIFT & ROTATE CAPACITY ............ 12,000 LBS
PLATEN SIZE ....................... 96" X 48" L-R X F-B
MAX OPEN HEIGHT ................... 60"
MAX UPPER PLATEN LIFT TRAVEL ...... 42"
ROTATING POSITION UPPER PLATEN .... 0 TO 180 DEGREES
MOTORS ........................... 5 & 2HPEQUIPPED WITH:
ALLEN BRADLEY PANELVIEW 300 MICRO CONTROL
T SLOTTED SLIDING BOLSTER WITH ROLLER SUPPORTS
T SLOTTED UPPER PLATEN
POWERED LIFT AND ROTATE ADJUSTMENT
REMOTE HAND PUSH BUTTON CONTROL PENDANT
| Specifications | ||
|---|---|---|
| Dimensions | 188" X 100" X 100" | |
| Weight | 26000 pounds | |
