Machine Information

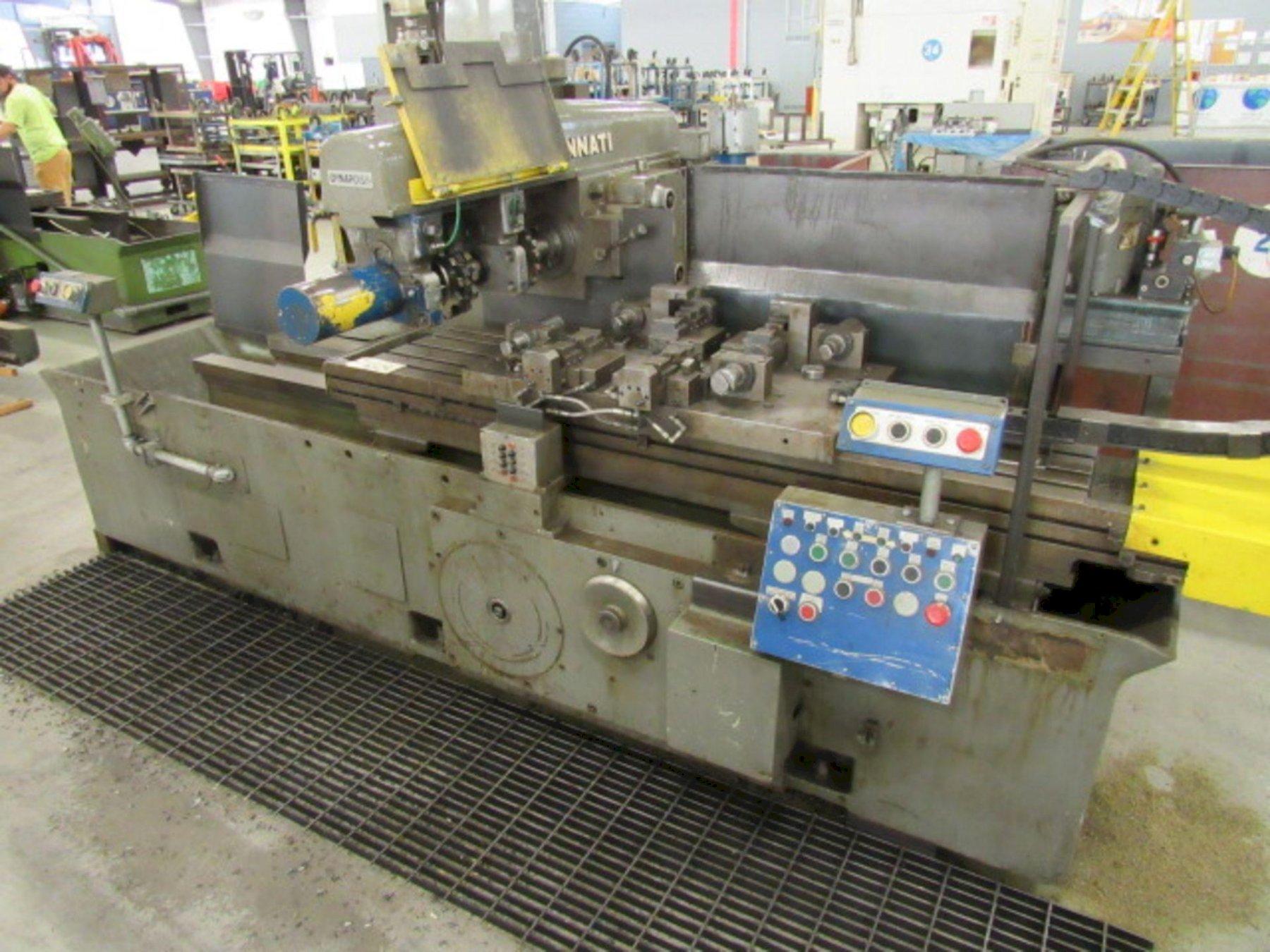

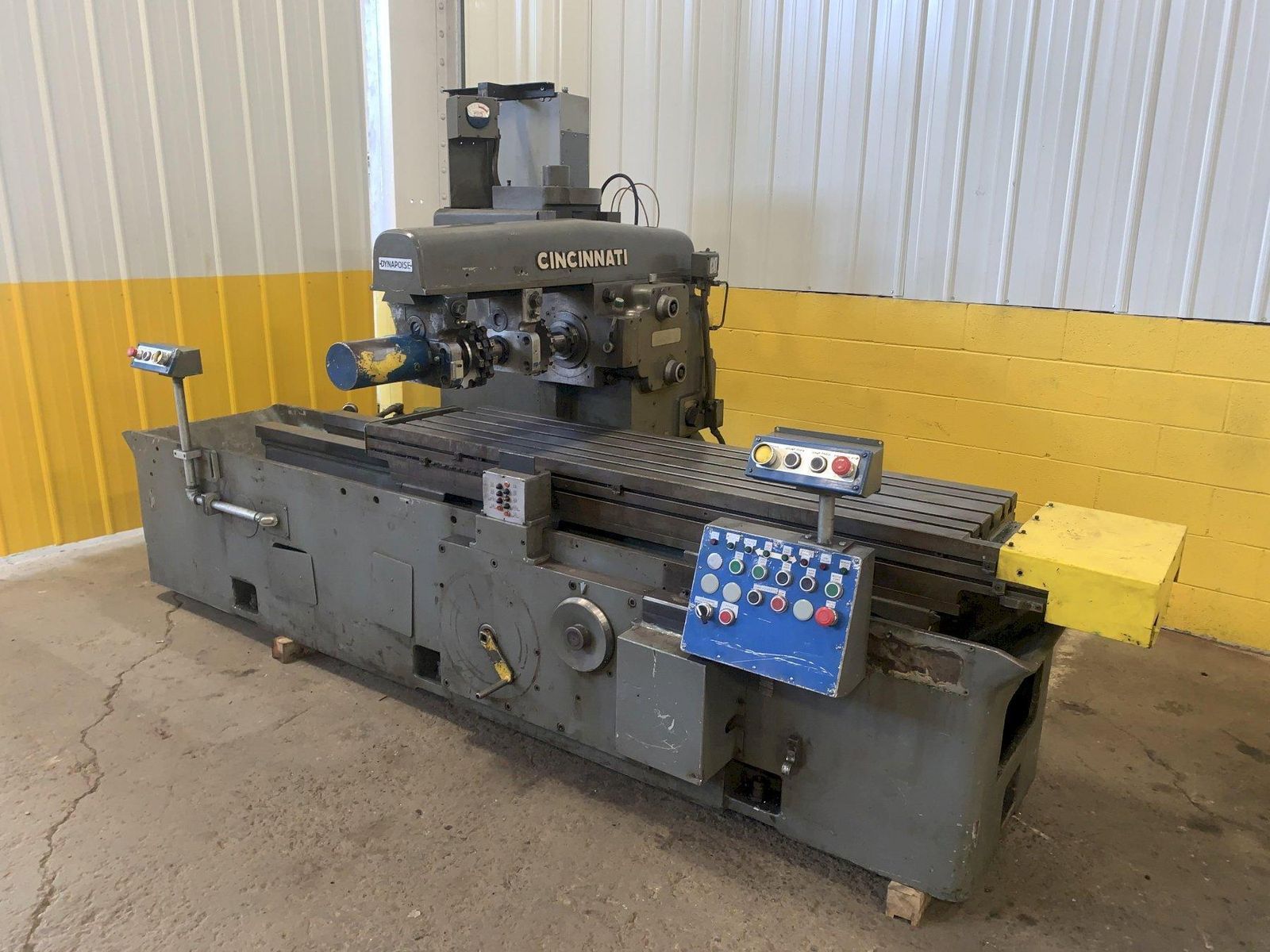

18" X 72" CINCINNATI HYPOWERMATIC HORIZONTAL SIMPLEX PRODUCTION MILL: STOCK #13111

Stock #: 13111

Equipped With

SERIAL ....................... 311431-P5U-10
MODEL ........................ 400-184
WORKGIN TABLE AREA ........... 18" X 72"
OVERALL TABLE SIZE ........... 18" X 80"
MAX WORKING WIDTH ............ 23-1/4"
TABLE TRAVEL ................. 48"
TABLE TO SPINDLE DISTANCE .... 6" TO 16"
HEAD VERTICAL ADJUSTMENT ..... 10"
SPINDLE TAPER ................ #50 NS
SPINDLE SPEEDS ............... (16) 50 TO 2000 RPM
HIGH & LOW GEAR .............. YES
CHANGE GEARS INCLUDED ........ YES
QUILL ADJUSTMENT ............. 6"
DIAMETER OF QUILL ............ 8-1/2"
TABLE FEEDS .................. 1/4 TO 150 IPM
RAPID TABLE TRAVEL ........... 300 IPM
FLOOR TO TABLE ............... 32"
MANUAL & AUTO CYCLE .......... YES
COOLANT ...................... YES
CONTROL CONSOLE STATION ...... YES
HYDRAULIC MOTOR .............. 5 HP
SPINDLE MOTOR ................ 20 HP
