Machine Information

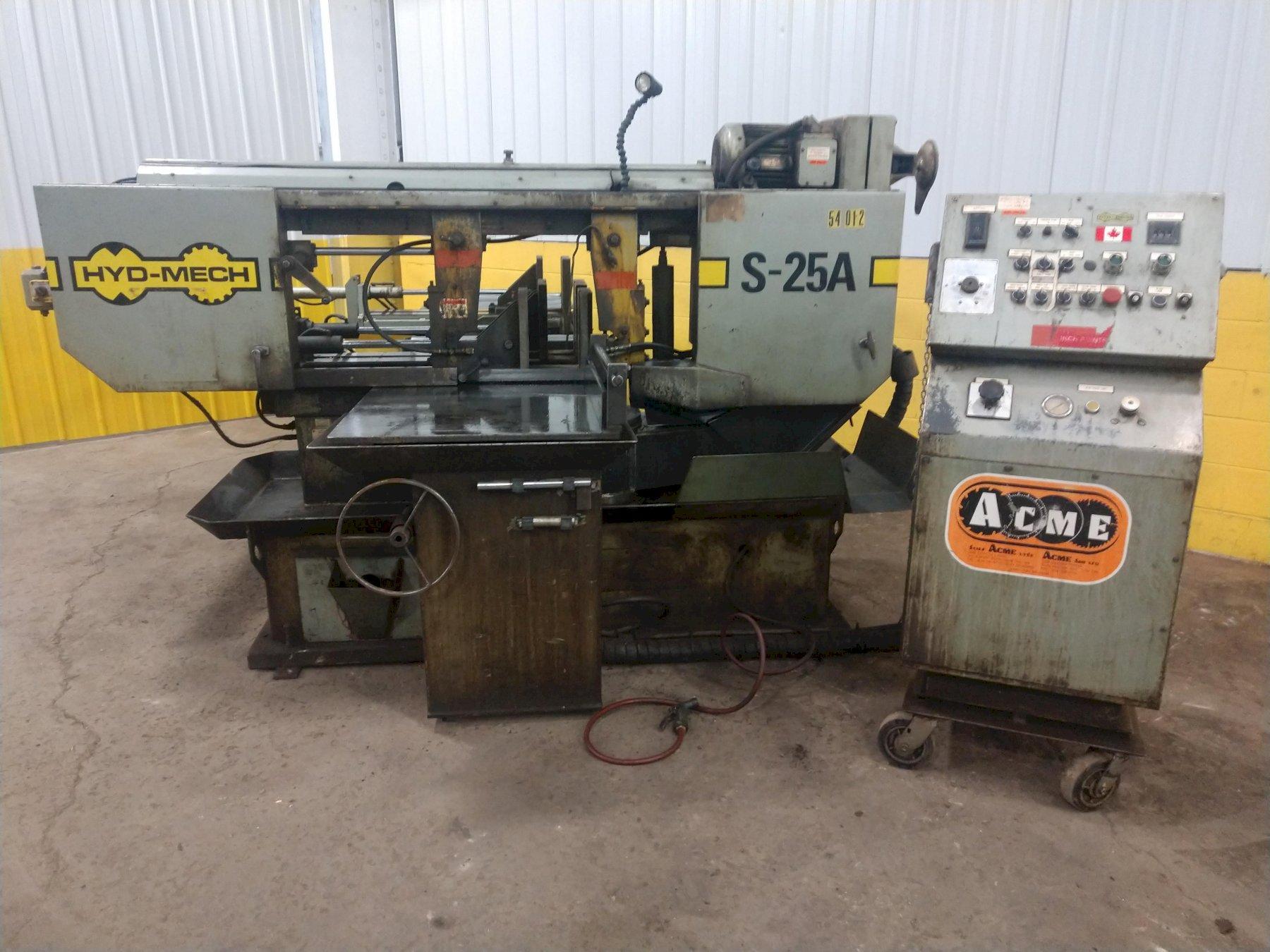

18" X 27" HYDMECH MODEL #S-25A AUTOMATIC HORIZONTAL SWIVEL MITER SAW: STOCK #13886

Stock #: 13886

Equipped With

SERIAL ........................ 91089166
MODEL ......................... S-25A
YEAR .......................... 1991
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
POWER MITERING ................ YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP

18" X 27" HYDMECH MODEL #S-25A AUTOMATIC HORIZONTAL SWIVEL MITER SAW: STOCK #13886

Stock # 13886

Request a Quote

Share Machine

Print Details

Make an Offer




































Download Images

View All Images

Machine Specifications

SERIAL ........................ 91089166

MODEL ......................... S-25A

YEAR .......................... 1991

ROUND CAPACITY ................ 18" DIAMETER

RECTANGULAR CAPACITY .......... 18" H X 27" W

CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER

CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER

BLADE WIDTH ................... 1.5"

BLADE LENGTH .................. 18'10"

BLADE SPEED ................... 75 TO 400 SFM

BLADE TENSION ................. HYDRAULIC

POWER MITERING ................ YES

AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES

WORK LOAD ..................... 8000 LBS

COOLANT ....................... 3.5 GPM

AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE

NUMBER OF FEED STROKES ........ 1 TO 99

BLADE DRIVE MOTOR ............. 10 HP

HYDRAULIC DRIVE MOTOR ......... 3 HP
