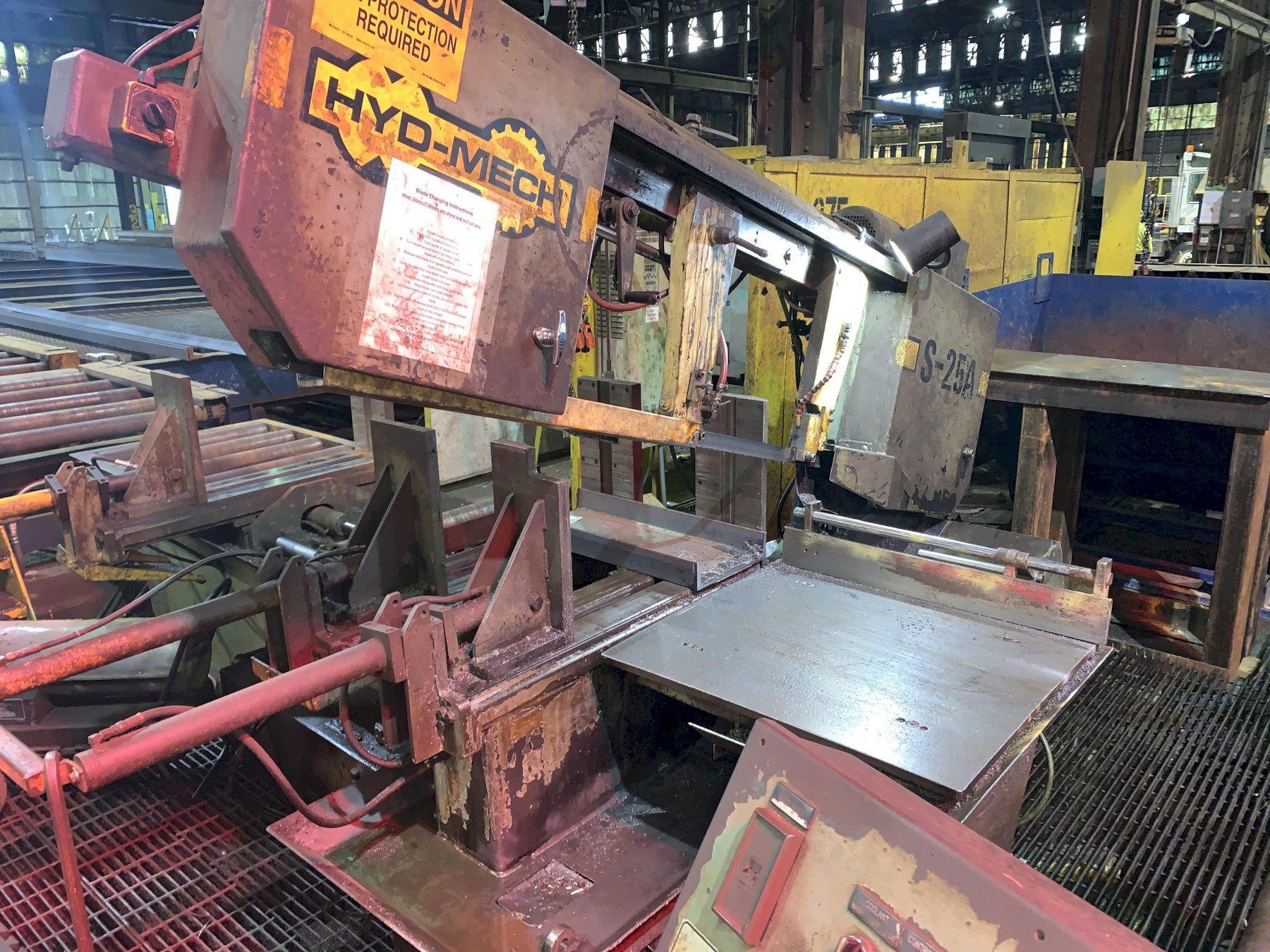

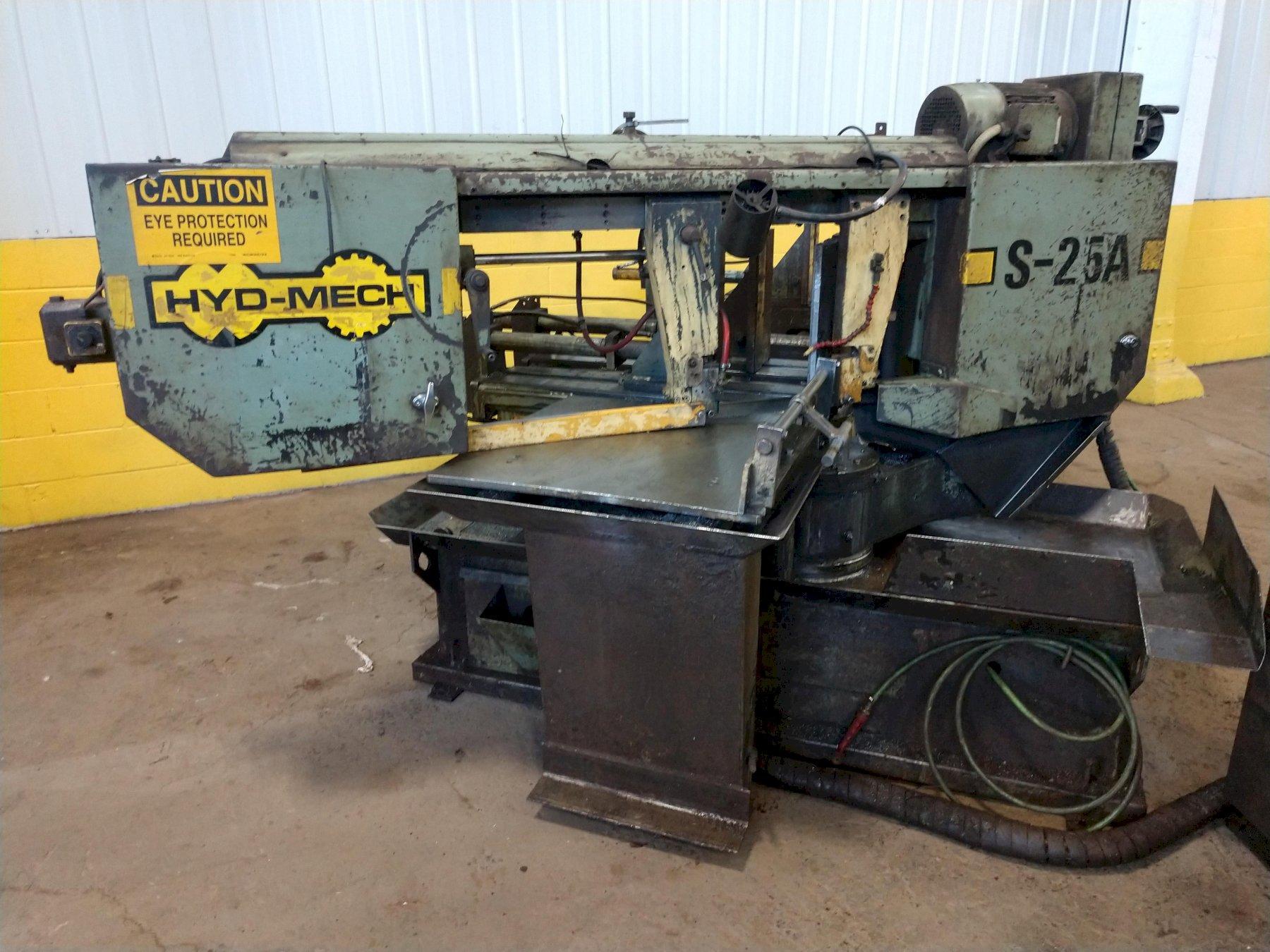

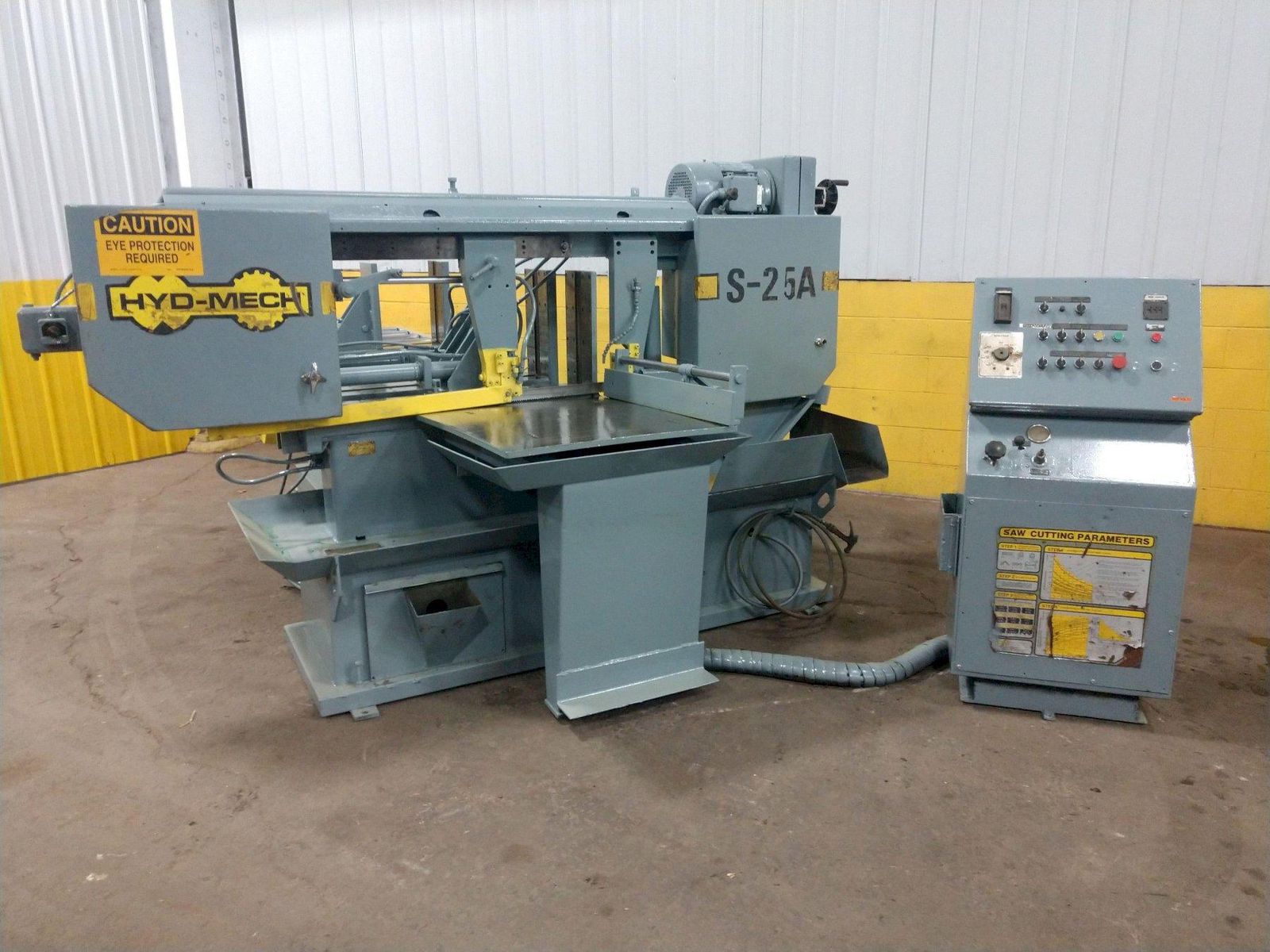

18" X 27" HYD MECH S-25A AUTOMATIC HORIZONTAL MITER SAW: STOCK #12945

Stock #: 12945

Equipped With

SERIAL ........................ 91196399
MODEL ......................... S-25A
YEAR .......................... 1996
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
POWER MITERING ................ YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP


Buy Machines

18" X 27" HYD MECH S-25A AUTOMATIC HORIZONTAL MITER SAW: STOCK #12945

Stock # 12945

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 91196399
MODEL ......................... S-25A
YEAR .......................... 1996
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
POWER MITERING ................ YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP


Specifications
Weight 7300 pounds
