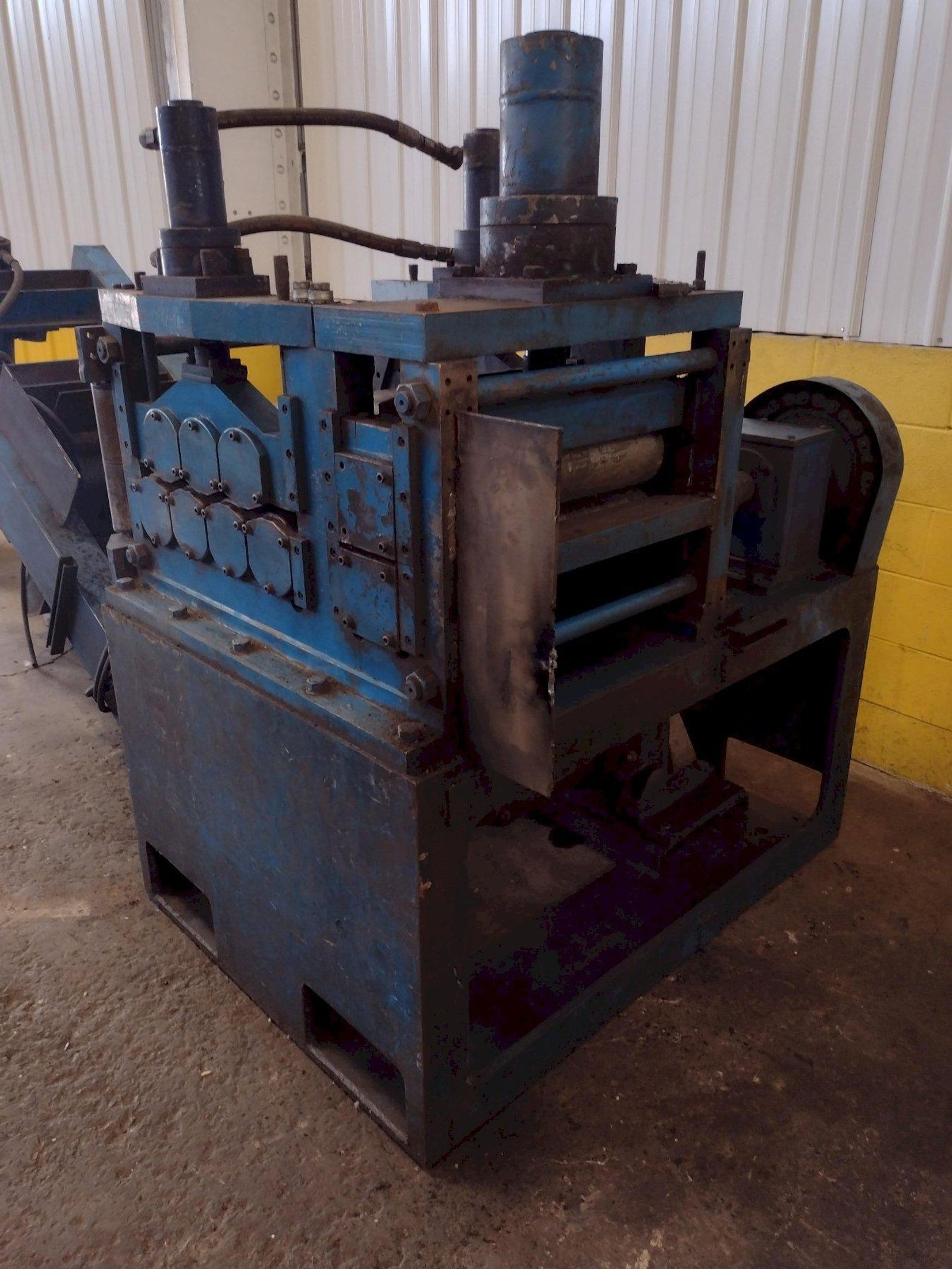

18" WIDE X 4.5" YODER 7-ROLL COIL STRIP STRAIGHTENER, FEED ROLL & PEELER: STOCK #16921

Overview

STRAIGHTENER:
NUMBER OF ROLLS .......... 7 (3 OVER 4)
WIDTH OF ROLLS ........... 18"
DIAMETER OF ROLLS ........ 4.5"
TOP ROLL ADJUSTMENT ...... HYDRAULIC, BOTH SIDES
GEARBOX DRIVES ........... YES
CHAIN DRIVEN ............. YES
FEED UP ROLL ............. YES
FEED UP ROLL ADJUSTMENT .. HYDRAULIC

PUSH BUTTON CONTROLS ..... YES

PEELER & HOLD DOWN:
HOLD DOWN ARM ............ HYDRAULIC
POWER FEED OFF ROLL ...... HYDRAULIC DRIVEN
PEELER WEDGE ............. HYDRAULIC ADJUSTMENT

"ES" HYDRAULIC UNIT ........... 30 HP

18" WIDE X 4.5" YODER 7-ROLL COIL STRIP STRAIGHTENER, FEED ROLL & PEELER: STOCK #16921

Brand
YODER

Type
Feeding & Straightening Machines

Stock No.
16921

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

18" WIDE X 4.5" YODER 7-ROLL COIL STRIP STRAIGHTENER, FEED ROLL & PEELER: STOCK #16921

Stock #: 16921

Equipped With

STRAIGHTENER:
NUMBER OF ROLLS .......... 7 (3 OVER 4)
WIDTH OF ROLLS ........... 18"
DIAMETER OF ROLLS ........ 4.5"
TOP ROLL ADJUSTMENT ...... HYDRAULIC, BOTH SIDES
GEARBOX DRIVES ........... YES
CHAIN DRIVEN ............. YES
FEED UP ROLL ............. YES
FEED UP ROLL ADJUSTMENT .. HYDRAULIC

PUSH BUTTON CONTROLS ..... YES

PEELER & HOLD DOWN:
HOLD DOWN ARM ............ HYDRAULIC
POWER FEED OFF ROLL ...... HYDRAULIC DRIVEN
PEELER WEDGE ............. HYDRAULIC ADJUSTMENT

"ES" HYDRAULIC UNIT ........... 30 HP
