Machine Information

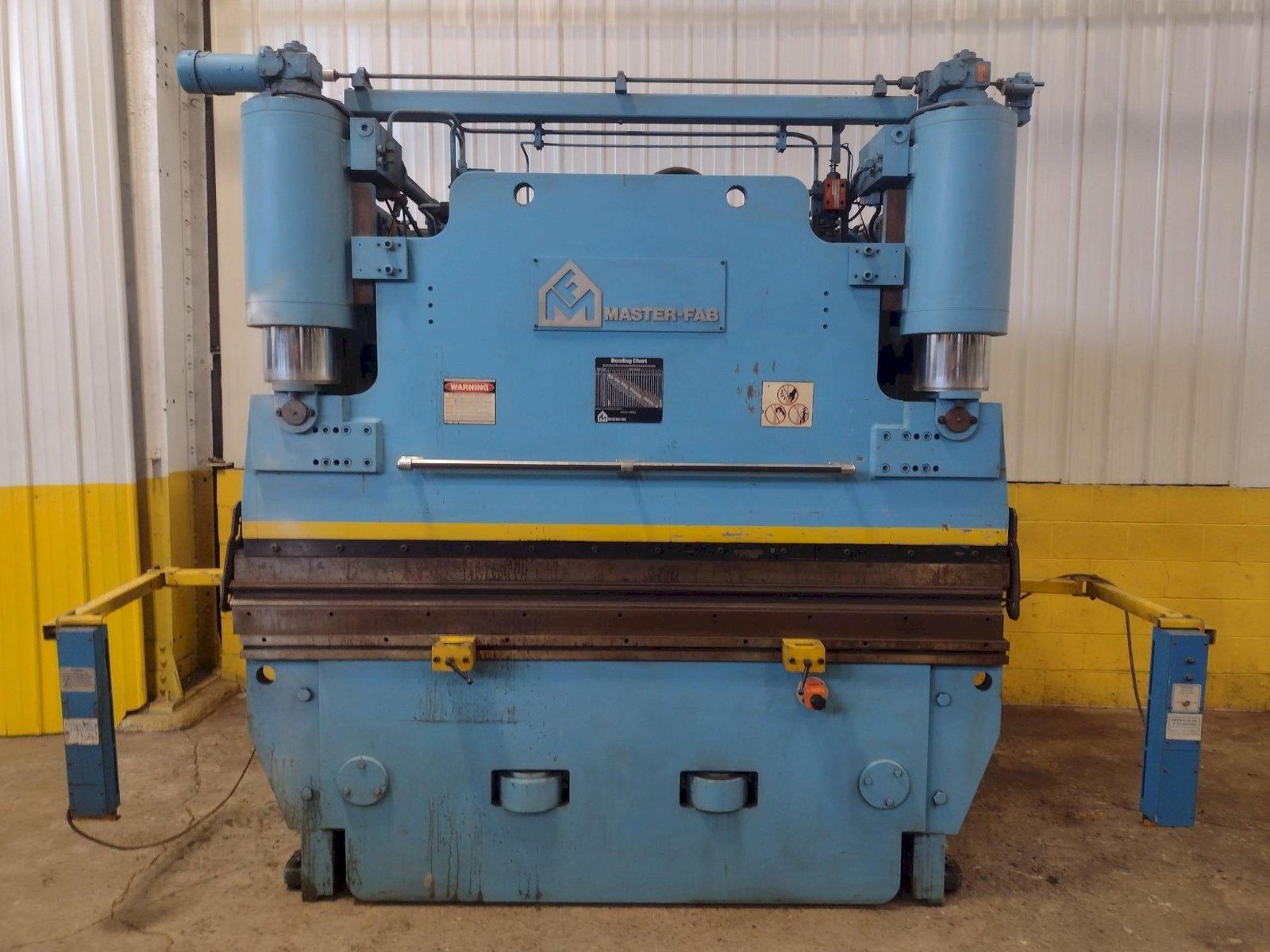

175 TON X 8' MASTER-FAB MODEL #PAB175-8 HYDRAULIC PRESS BRAKE: STOCK #18406

Stock #: 18406

Equipped With

SERIAL ....................... 9005224
MODEL ........................ PAB 175-8
SERIES ....................... AB PRESS BRAKE
CAPACITY ..................... 175 TONS
LENGTH OF BED & RAM .......... 96" (8')
BED / BOTTOM DIE CUSHIONS .... YES, 2
OPERATING MODES .............. INCH & PRODUCTION
STROKE - VARIABLE ............ 12" MAX
BOTTOM & TOP STROKE STOPS .... YES
FORMING TONNAGE DIAL ......... ADJUSTABLE
DEFECTIVE PRESSURE DIAL ...... ADJUSTABLE
PRESSURE GAUGES .............. YES
BACKGAUGE .................... 24"
STAND ALONE CONTROL STATION .. YES
PROGRAMMABLE CONTROLLER ...... OMRON SYSMAX C28K
SIDE PALM PUSH BUTTON TRIP ... YES
FOOT PEDAL TRIP .............. YES
RAM-UP BUTTON (TOP STOP) ..... YES
E-STOP BUTTON ................ YES
FRONT ARM SHEET SUPPORTS ..... YES
LIGHT CURTAINS ............... TRIAD, TR-18
MOTOR ........................ 25 HP

Buy Machines

175 TON X 8' MASTER-FAB MODEL #PAB175-8 HYDRAULIC PRESS BRAKE: STOCK #18406

Stock # 18406

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

SERIAL ....................... 9005224
MODEL ........................ PAB 175-8
SERIES ....................... AB PRESS BRAKE
CAPACITY ..................... 175 TONS
LENGTH OF BED & RAM .......... 96" (8')
BED / BOTTOM DIE CUSHIONS .... YES, 2
OPERATING MODES .............. INCH & PRODUCTION
STROKE - VARIABLE ............ 12" MAX
BOTTOM & TOP STROKE STOPS .... YES
FORMING TONNAGE DIAL ......... ADJUSTABLE
DEFECTIVE PRESSURE DIAL ...... ADJUSTABLE
PRESSURE GAUGES .............. YES
BACKGAUGE .................... 24"
STAND ALONE CONTROL STATION .. YES
PROGRAMMABLE CONTROLLER ...... OMRON SYSMAX C28K
SIDE PALM PUSH BUTTON TRIP ... YES
FOOT PEDAL TRIP .............. YES
RAM-UP BUTTON (TOP STOP) ..... YES
E-STOP BUTTON ................ YES
FRONT ARM SHEET SUPPORTS ..... YES
LIGHT CURTAINS ............... TRIAD, TR-18
MOTOR ........................ 25 HP

Videos
Specifications
Dimensions 9'L x 6'W x 9'6"H
Weight 19000 pounds
