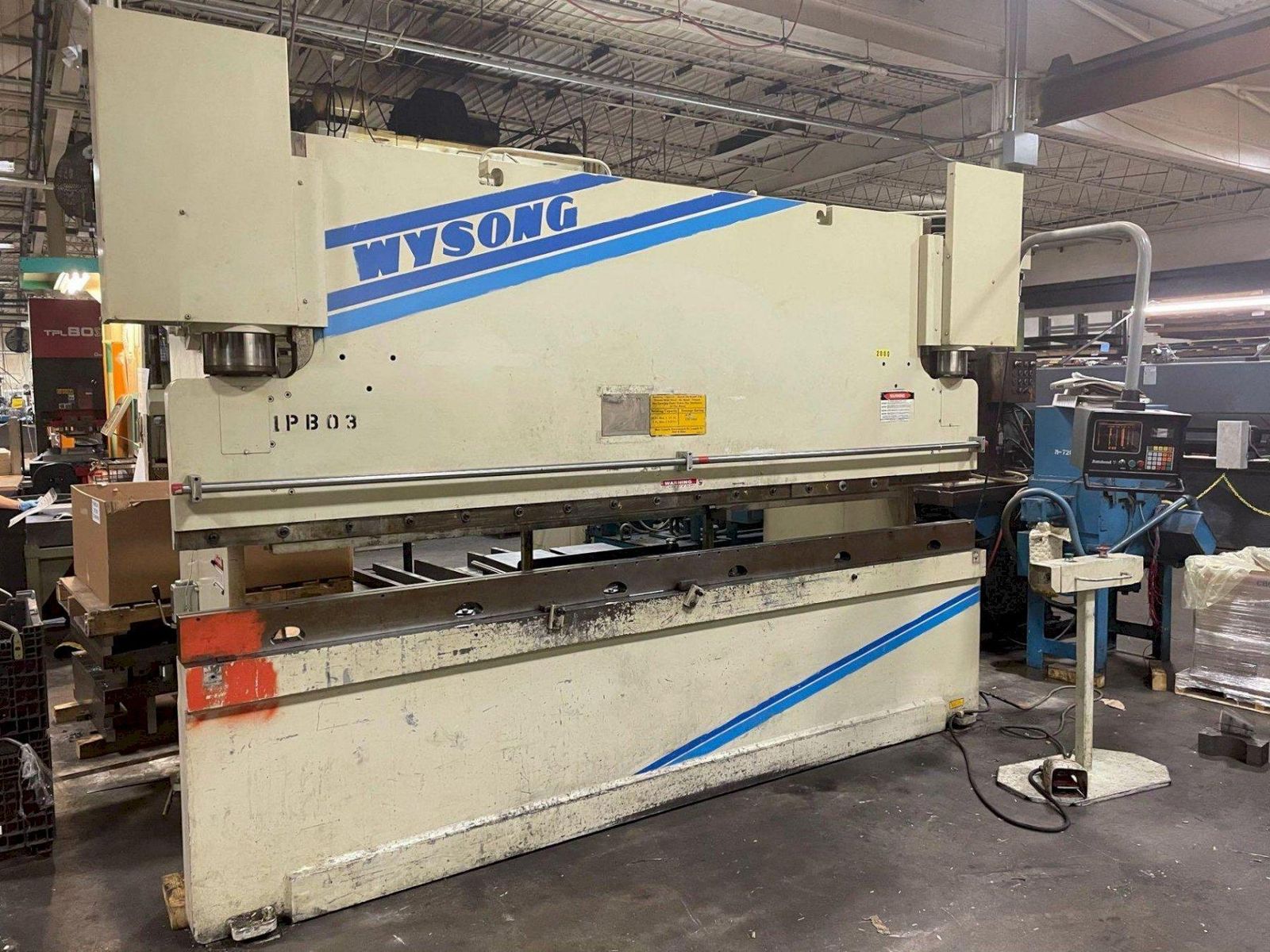

175 TON X 12' WYSONG MODEL #MTH175-144 HYDRAULIC PRESS BRAKE: STOCK #15923

Stock #: 15923

Equipped With

SERIAL ......................... MT2-184
MODEL .......................... MTH175-144
CAPACITY ....................... 175 TONS
BENDING CAPACITIES  ............ 10'MAX X 1/4"
OVERALL LENGTH OF BED & RAM .... 144"
DISTANCE BETWEEN HOUSINGS ...... 126"
RAM STROKE (VAR) ............... 0"-8"
OPEN HEIGHT .................... 17" (MAX DIE SPACE)
ADJUSTMENT ..................... 9"
RAM SPEED APPROACH ............. 300 IPM
RAM SPEED PRESS ................ 22 IPM
RAM SPEED RETURN ............... 250 IPM
THROAT ......................... 8"
HURCO CNC BACK GAGE ............ AUTOBEND 7
FOOT PEDAL & PEDESTAL CONTROL .. YES
ONE SHOT LUBE .................. YES
LOWER DIE RAIL ................. YES
ADJUSTABLE STROKE .............. YES
ADJUSTABLE RAM SPEED ........... YES
FLOOR FLUSH .................... YES
HYDRAULIC PUMP ................. 15HP
