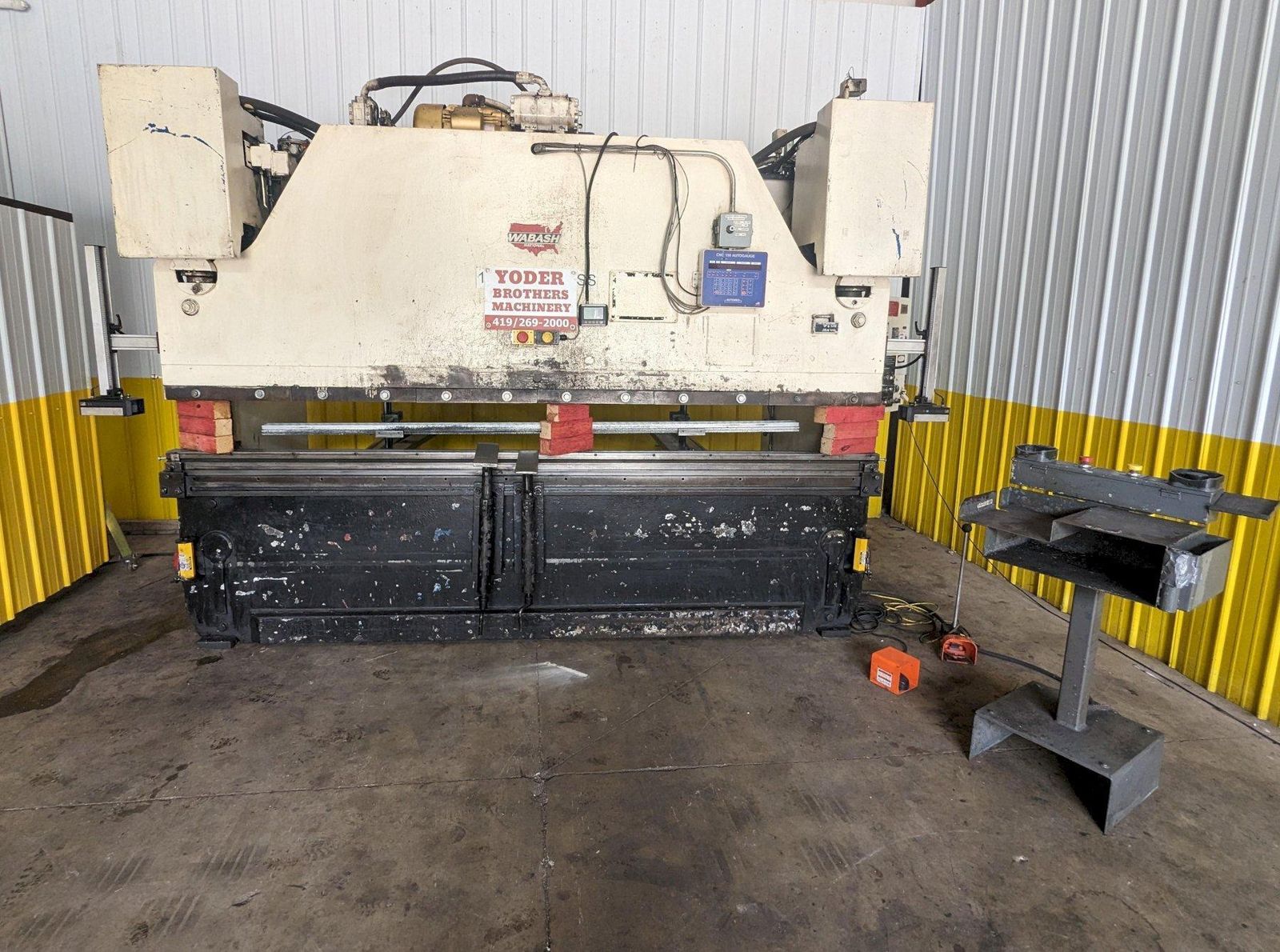

Stock #: 18530
SERIAL ....................... A1025
NEW .......................... 1993
MODEL ........................ J175-12
Capacity ..................... 175 tonBending ...................... 1/4" x 10'Length bed and ram ........... 12'Distance between housings .... 10'6"Stroke (adjustable) .......... 10"Open height .................. 15"Closed height ................ 5"Top of bed to floor .......... 36"Throat depth ................. 7"Rapid advance................. 230 ipmNormal press ................. 56 ipmAnti-whip .................... 15 ipmFast return .................. 182 ipmMOTOR ........................ 30 HP
Machine is equipped with:
- Automec Autogauge CNC 150 Back Gauge- Adjustable tonnage control- Single stroke with manual or auto return modes- Pressure reversal mode option- Micro adjustable stroke start- Stop & speed change points- Flush floor design- Lube system- Upper sectional ram clamps- Lower die rail- Foot pedal
Stock # 18530
SERIAL ....................... A1025
NEW .......................... 1993
MODEL ........................ J175-12
Capacity ..................... 175 tonBending ...................... 1/4" x 10'
Length bed and ram ........... 12'
Distance between housings .... 10'6"
Stroke (adjustable) .......... 10"
Open height .................. 15"
Closed height ................ 5"
Top of bed to floor .......... 36"
Throat depth ................. 7"
Rapid advance................. 230 ipm
Normal press ................. 56 ipm
Anti-whip .................... 15 ipm
Fast return .................. 182 ipm
MOTOR ........................ 30 HP
Machine is equipped with:
- Automec Autogauge CNC 150 Back Gauge- Adjustable tonnage control
- Single stroke with manual or auto return modes
- Pressure reversal mode option
- Micro adjustable stroke start
- Stop & speed change points
- Flush floor design
- Lube system
- Upper sectional ram clamps
- Lower die rail
- Foot pedal
