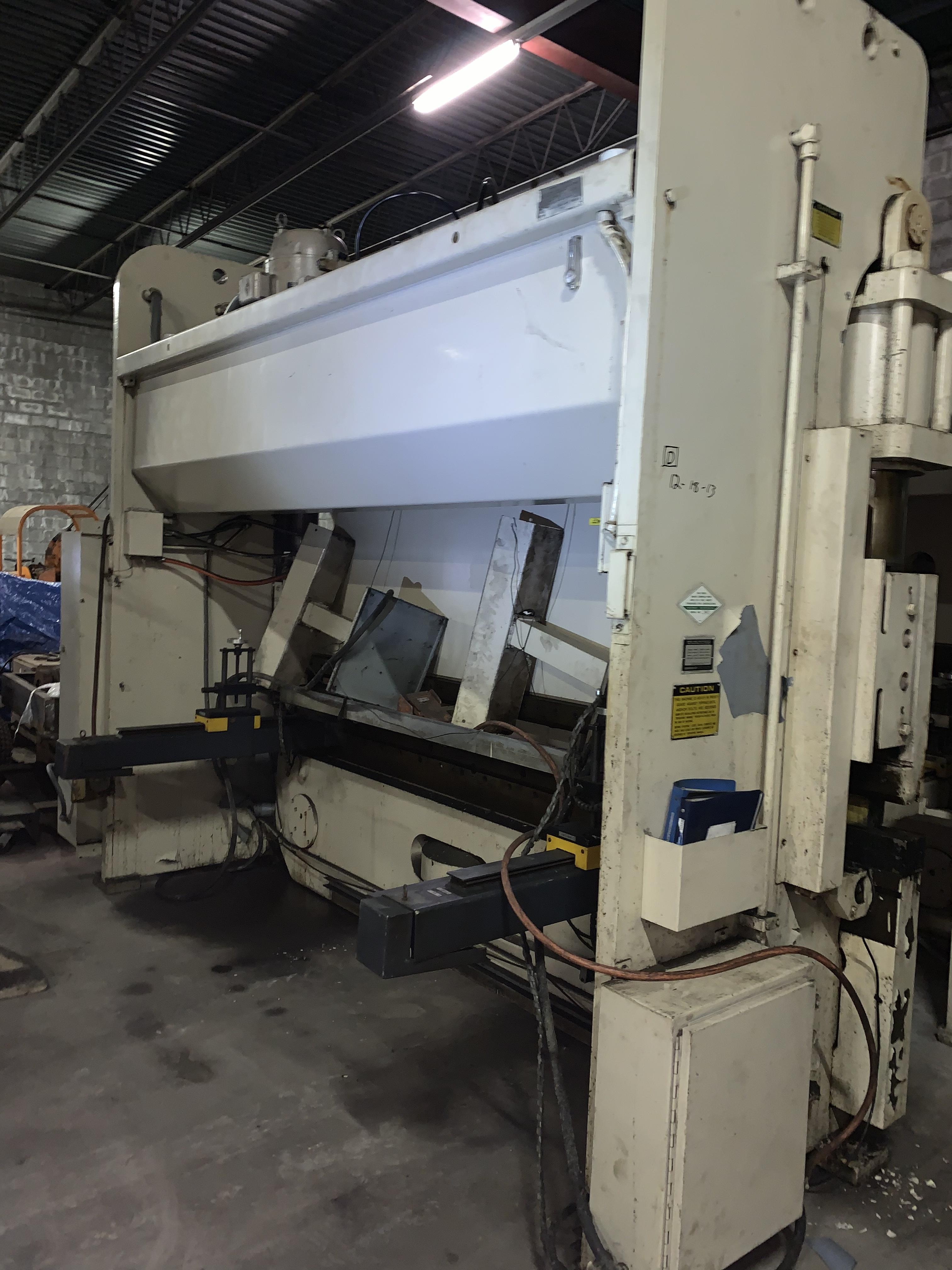

175 TON X 12' CINCINNATI MODEL FMII HYDRAULIC PRESS BRAKE: STOCK #10215

Stock #: 10215

Equipped With

SERIAL:...................................... 45364
MODEL:....................................... 175FMII X 10
YEAR NEW:.................................... 1990
CAPACITY:.................................... 175 TON
AUTO CROWNING
TOP DIE HYDRAULIC CLAMPING
OVERALL LENGTH OF BED:....................... 12'
DISTANCE BETWEEN HOUSINGS:................... 10'6"
STROKE:...................................... 10"
MAXIMUM DAYLIGHT:............................ 17"
MINIMUM DAYLIGHT:............................ 7"
THROAT:...................................... 8"
ADVANCED SPEED:.............................. 132 IPM
PRESSING SPEEDS:............................. 18 IPM
RETURN SPEED:................................ 190 IPM
BED AND RAM MILLED & DRILL:.................. YES
STROKE DEPTH CONTROL:........................ YES
PALM BUTTONS:................................ YES
ELECTRIC FOOT PEDAL:......................... YES
CNC BACKGAUGING
FORMASTER II CONTROL
MAIN MOTOR:.................................. 30 HORSEPOWER

Buy Machines

175 TON X 12' CINCINNATI MODEL FMII HYDRAULIC PRESS BRAKE: STOCK #10215

Stock # 10215

Share Machine
Print Details

Machine Specifications

SERIAL:...................................... 45364
MODEL:....................................... 175FMII X 10
YEAR NEW:.................................... 1990
CAPACITY:.................................... 175 TON
AUTO CROWNING
TOP DIE HYDRAULIC CLAMPING
OVERALL LENGTH OF BED:....................... 12'
DISTANCE BETWEEN HOUSINGS:................... 10'6"
STROKE:...................................... 10"
MAXIMUM DAYLIGHT:............................ 17"
MINIMUM DAYLIGHT:............................ 7"
THROAT:...................................... 8"
ADVANCED SPEED:.............................. 132 IPM
PRESSING SPEEDS:............................. 18 IPM
RETURN SPEED:................................ 190 IPM
BED AND RAM MILLED & DRILL:.................. YES
STROKE DEPTH CONTROL:........................ YES
PALM BUTTONS:................................ YES
ELECTRIC FOOT PEDAL:......................... YES
CNC BACKGAUGING
FORMASTER II CONTROL
MAIN MOTOR:.................................. 30 HORSEPOWER

Specifications
Tonnage 300 tons
Hyd/Mech hydraulic
OA Length 144 inches
OA (Overall) Length 144 inches
BH 126.75 inches
BH (Between Housings) 126.75 inches
Stroke 10 inches
# Axis 4
CNC Control yes
Type of CNC Control CINCINNATI FORMMASTER
Dimensions 144" X 48" X 123.5" H
Weight 25000 ounces
