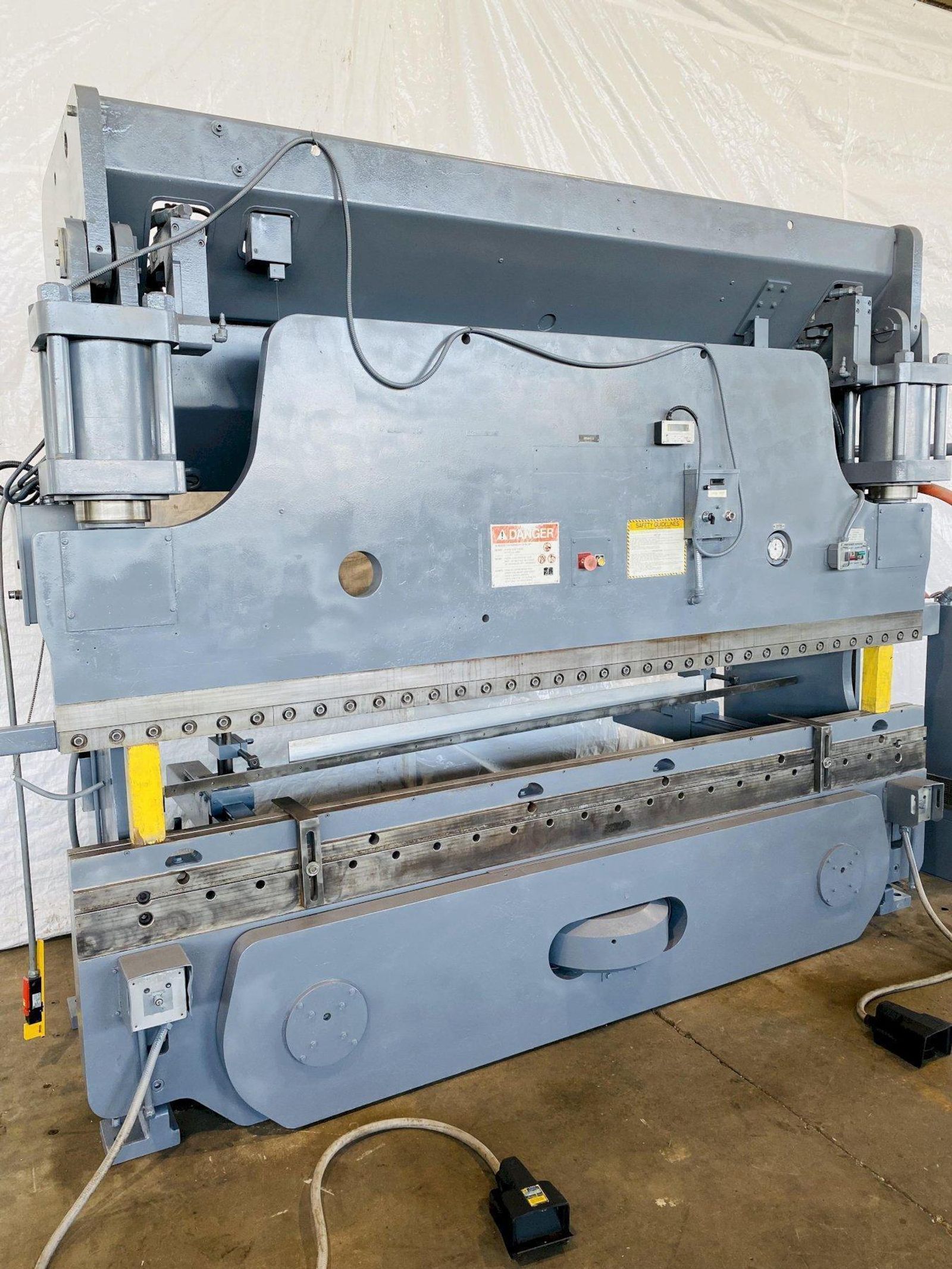

175 TON X 12' CINCINNATI MODEL AS175-10 AUTOSHAPE HYDRAULIC PRESS BRAKE: STOCK #10218

Overview

Serial Number ..................... 44173
Model ............................. 175 AS Autoshape

New ............................... 1986
Capacity .......................... 175 TONS
Overall Length of Bed & Ram ....... 12’
Distance Between Housings ......... 10’6 3/4”
Stroke ............................ 10”
Open Height ....................... 17”
Closed Height ..................... 7”
Throat Clearance .................. 8”
Speeds:
Approach .......................... 235 INCH PER MINUTE
Form .............................. 60  & 20 INCH PER MINUTE
Return ............................ 79 & 248  INCH PER MINUTE
Back Gage Speeds .................. X- AXIS’, 850 INCH PER MINUTE
Main Motor ........................ 35 HORSEPOWER

Autoshape CNC Control
24” CNC Programmable Back gage  (X) With Manual R Axis
Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping

Specifications
Tonnage 175 tons
Hyd/Mech hydraulic
OA Length 12 feet
BH 126.75 inches
OA (Overall) Length 144 inches
BH (Between Housings) 126.75 inches
Stroke 10 inches
# Axis 4
CNC Control yes
Type of CNC Control CINCINNATI AUTOSHAPE
Weight 25100 pounds

175 TON X 12' CINCINNATI MODEL AS175-10 AUTOSHAPE HYDRAULIC PRESS BRAKE: STOCK #10218

Brand
CINCINNATI INC

Type
Brakes, Press

Stock No.
10218

Related Listings

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

175 TON X 12' CINCINNATI MODEL AS175-10 AUTOSHAPE HYDRAULIC PRESS BRAKE: STOCK #10218

Stock #: 10218

Equipped With

Serial Number ..................... 44173
Model ............................. 175 AS Autoshape

New ............................... 1986
Capacity .......................... 175 TONS
Overall Length of Bed & Ram ....... 12’
Distance Between Housings ......... 10’6 3/4”
Stroke ............................ 10”
Open Height ....................... 17”
Closed Height ..................... 7”
Throat Clearance .................. 8”
Speeds:
Approach .......................... 235 INCH PER MINUTE
Form .............................. 60  & 20 INCH PER MINUTE
Return ............................ 79 & 248  INCH PER MINUTE
Back Gage Speeds .................. X- AXIS’, 850 INCH PER MINUTE
Main Motor ........................ 35 HORSEPOWER

Autoshape CNC Control
24” CNC Programmable Back gage  (X) With Manual R Axis
Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping
