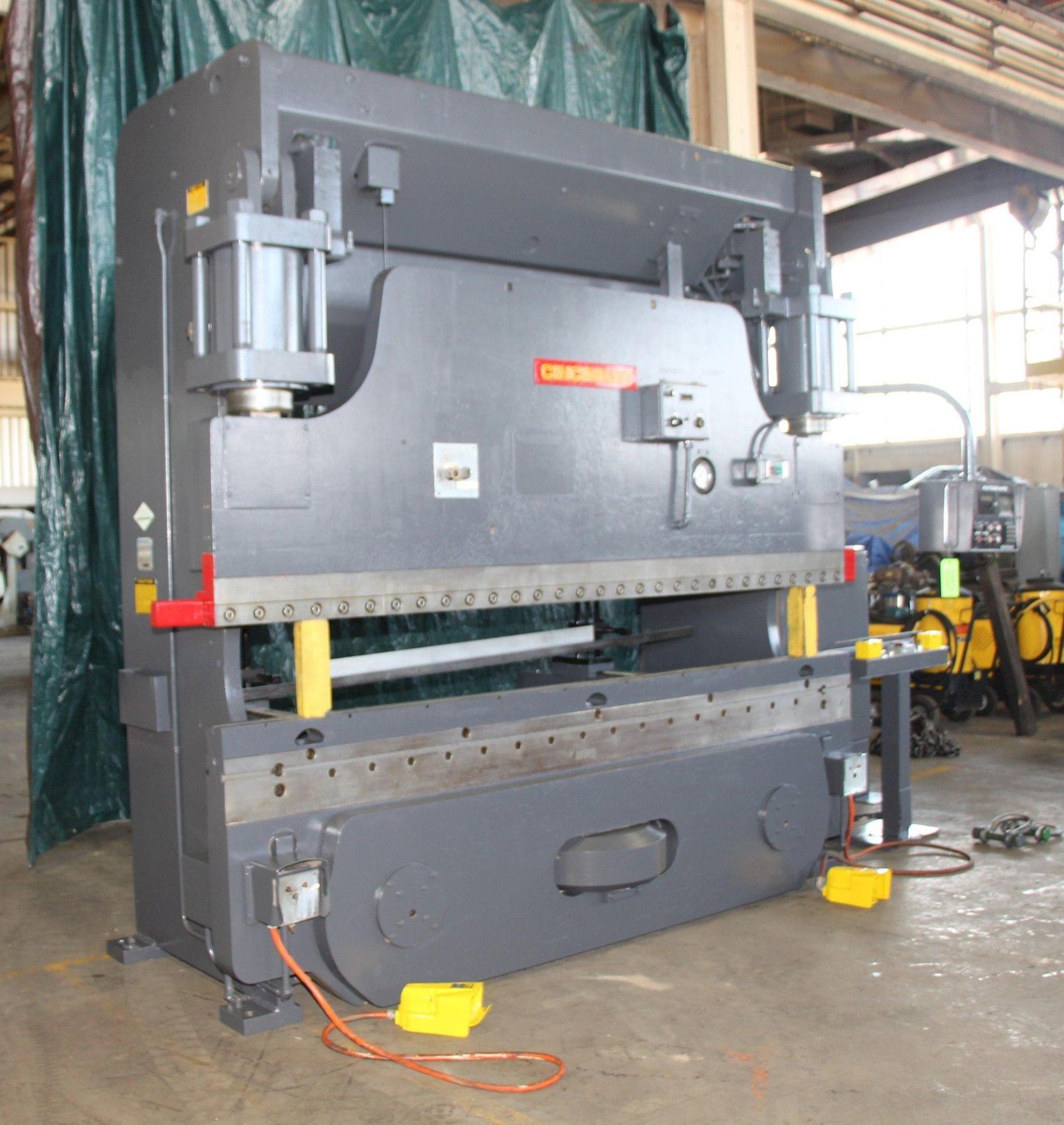

Serial ............................. Number 44188
Model .............................. 175 AS Autoshape
Capacity ........................... 175 TONS
Overall Length of Bed & Ram ........ 10’
Distance Between Housings .......... 8’6 3/4”
Stroke ............................. 10”
Open Height ........................ 17”
Closed Height ...................... 7”
Throat Clearance ................... 8”
Speeds:
Approach ........................... 235 INCH PER MINUTE
Form ............................... 60 & 20 INCH PER MINUTE
Return ............................. 79 & 248 INCH PER MINUTE
Back Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTE
Autoshape CNC Control
24” CNC Programmable Back gage
(X) With Manual R Axis
Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping
| Specifications | ||
|---|---|---|
| Tonnage | 175 tons | |
| Hyd/Mech | hydraulic | |
| OA Length | 10 inches | |
| BH | 102.75 inches | |
| OA (Overall) Length | 120 inches | |
| BH (Between Housings) | 102.75 inches | |
| Stroke | 10 inches | |
| CNC Control | yes | |
Brand
CINCINNATI INC
Type
Brakes, Press
Stock No.
10217
 |
419-269-2000 |
Stock #: 10217
Serial ............................. Number 44188
Model .............................. 175 AS Autoshape
Capacity ........................... 175 TONS
Overall Length of Bed & Ram ........ 10’
Distance Between Housings .......... 8’6 3/4”
Stroke ............................. 10”
Open Height ........................ 17”
Closed Height ...................... 7”
Throat Clearance ................... 8”
Speeds:
Approach ........................... 235 INCH PER MINUTE
Form ............................... 60 & 20 INCH PER MINUTE
Return ............................. 79 & 248 INCH PER MINUTE
Back Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTE
Autoshape CNC Control
24” CNC Programmable Back gage
(X) With Manual R Axis
Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping
