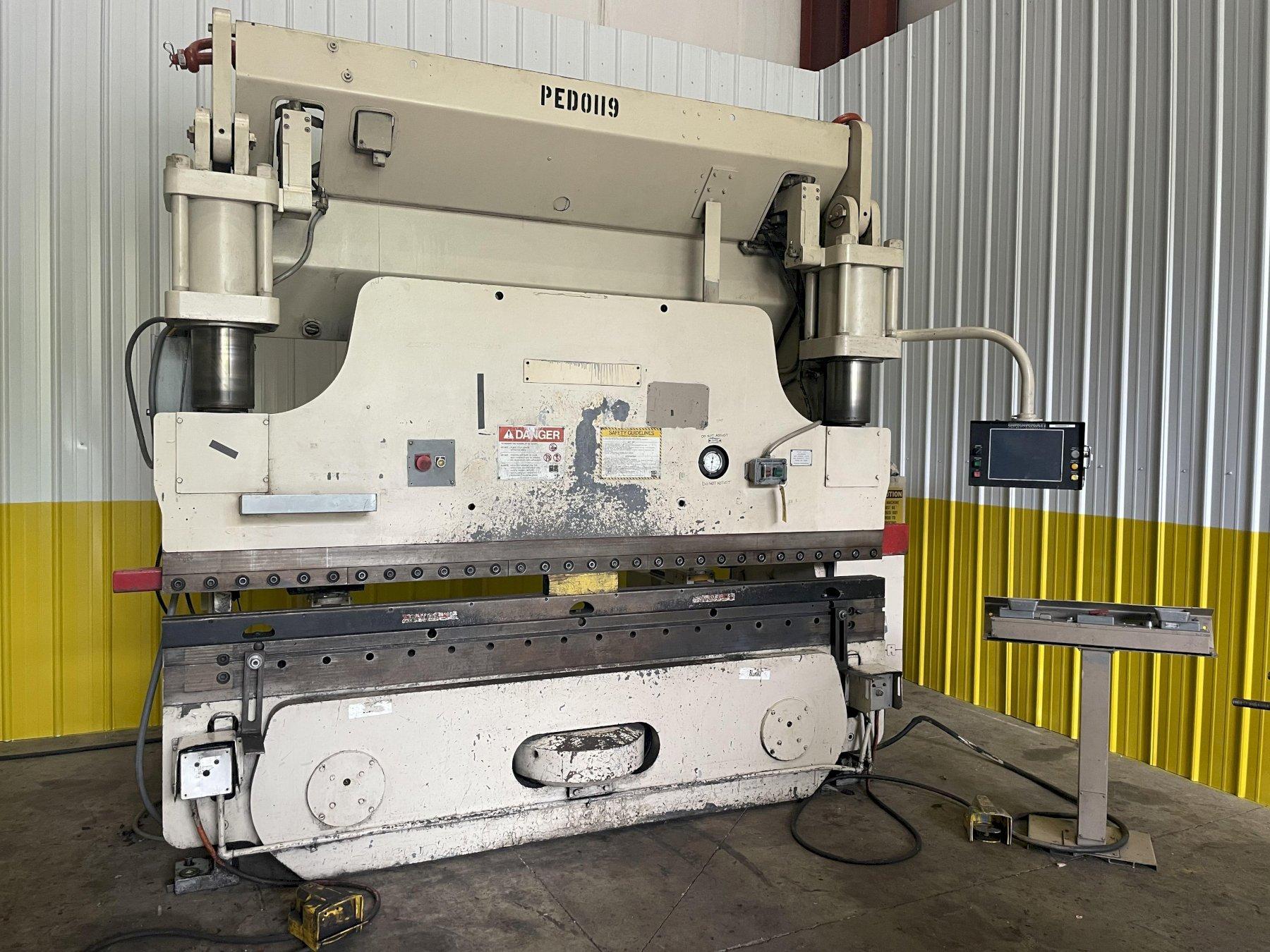

175 TON X 10' CINCINNATI MODEL #175-8AS HYDRAULIC CNC PRESS BRAKE WITH UPGRADED TOUCHSCREEN CONTROLS: STOCK 12996

Stock #: 12996

Equipped With

SERIAL ........................... 44169
YEAR NEW ......................... 1984
UPGRADED TOUCHSCREEN CONTROLS .... 04/2011
MODEL............................. 175AS X 8
CAPACITY ......................... 175 TON
OVERALL LENGTH OF BED AND RAM .... 10'
DISTANCE BETWEEN HOUSING ......... 8'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM ADVANCE SPEED ................ 132 IPM
RAM PRESSING SPEED  .............. 18 IPM
RAM RETURN SPEED ................. 190 IPM
POWER BACKGUAGES ................. 48"
AUTO CROWNING .................... YES
POWER CLAMPING ON DIE RAIL ....... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS ... YES
MOTOR ............................ 30 HP

Buy Machines

175 TON X 10' CINCINNATI MODEL #175-8AS HYDRAULIC CNC PRESS BRAKE WITH UPGRADED TOUCHSCREEN CONTROLS: STOCK 12996

Stock # 12996

Share Machine
Print Details

Machine Specifications

SERIAL ........................... 44169
YEAR NEW ......................... 1984
UPGRADED TOUCHSCREEN CONTROLS .... 04/2011
MODEL............................. 175AS X 8
CAPACITY ......................... 175 TON
OVERALL LENGTH OF BED AND RAM .... 10'
DISTANCE BETWEEN HOUSING ......... 8'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
RAM ADVANCE SPEED ................ 132 IPM
RAM PRESSING SPEED  .............. 18 IPM
RAM RETURN SPEED ................. 190 IPM
POWER BACKGUAGES ................. 48"
AUTO CROWNING .................... YES
POWER CLAMPING ON DIE RAIL ....... YES
FLOOR STANDING, NO PIT REQUIRED .. YES
ELECTRIC FOOT TRIP ............... YES
PEDESTAL STAND W/ PALM BUTTONS ... YES
MOTOR ............................ 30 HP
