Brand

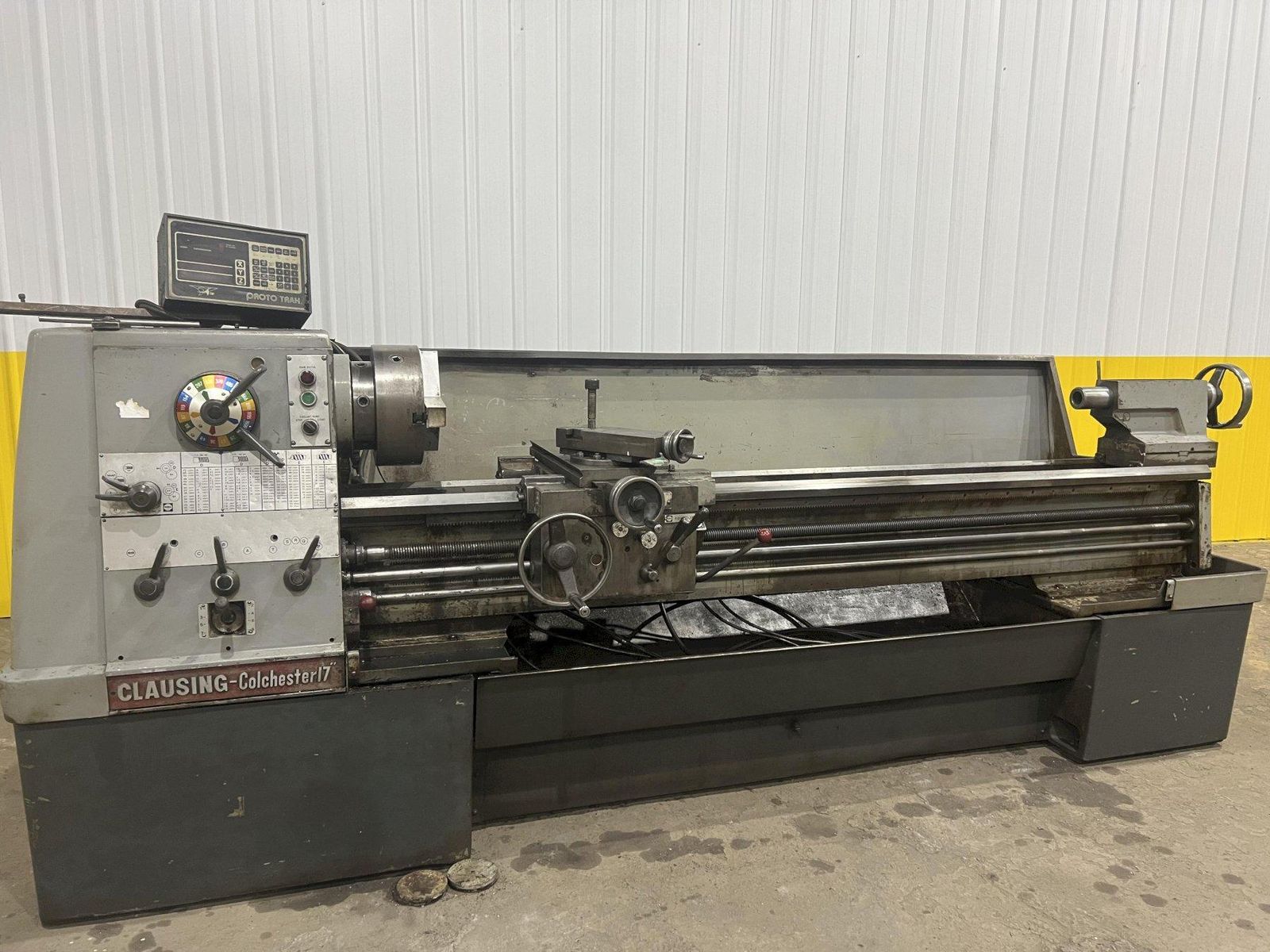

CLAUSING COLCHESTER
Type
Lathes, Engine
Stock No.
19820
 |
419-269-2000 |
Stock #: 19820
SERIAL ............................. 7/0017/07641MODEL .............................. 17"SWING OVER WAYS .................... 18"SWING OVER CROSS SLIDE ............. 10-1/2"DISTANCE BETWEEN CENTERS ........... 80"SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPMDIAMETER OF SPINDLE HOLE ........... 3-1/4"FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPRTHREADS (ENGLISH) .................. (38) 2 TO 72 TPITHREADS (METRIC) ................... (40) .4 TO 14 MMPICROSS FEEDS ........................ .001 TO .016CHUCK .............................. 12" 3-Jaw ChuckSTEADY REST ........................ YESHARDEN WAYS ........................ YESFORWARD & REVERSING ................ YESCOOLANT ............................ YESTRAVEL DIAL ........................ YESMOTOR .............................. 10 HORSEPOWER
