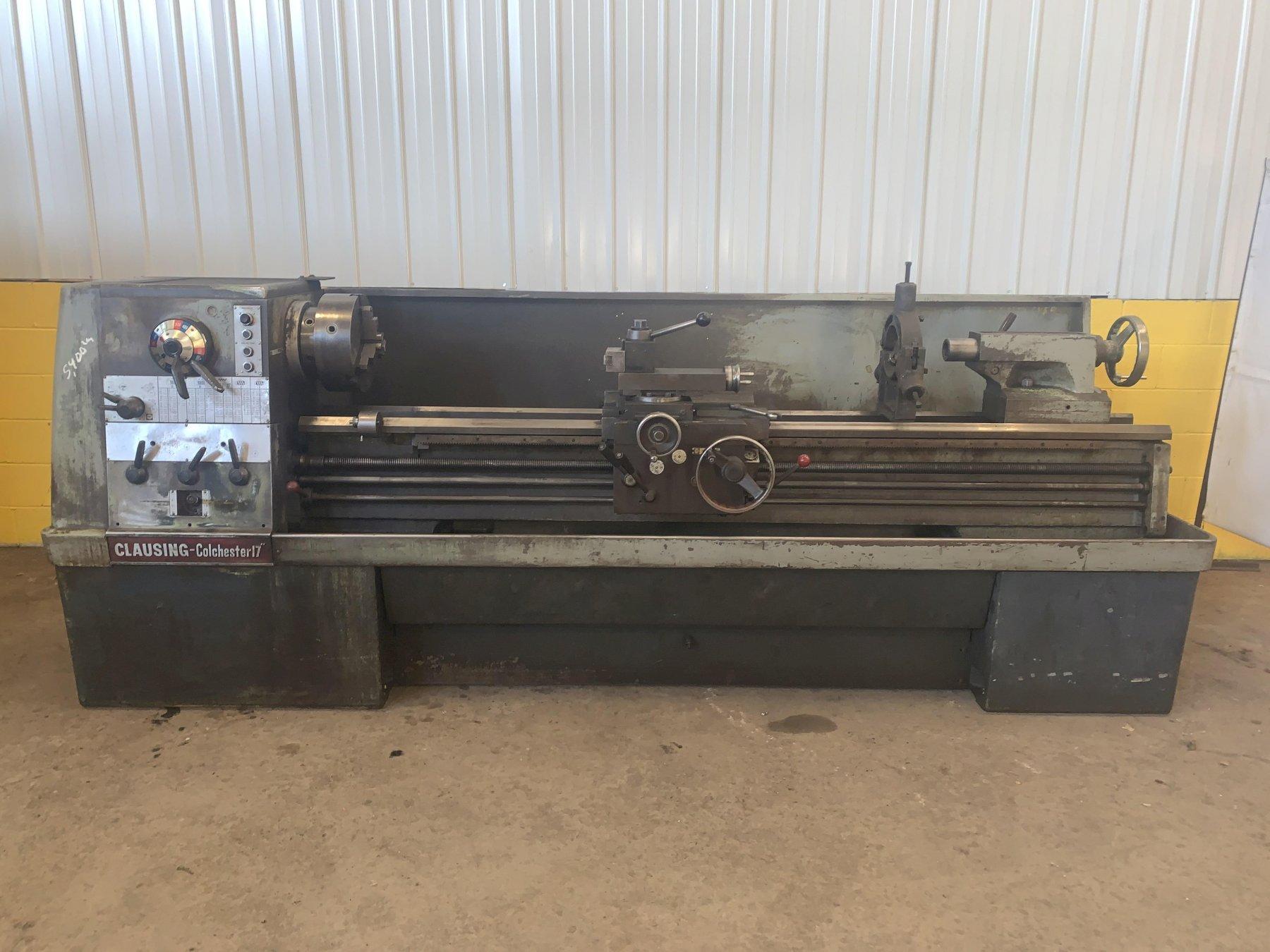

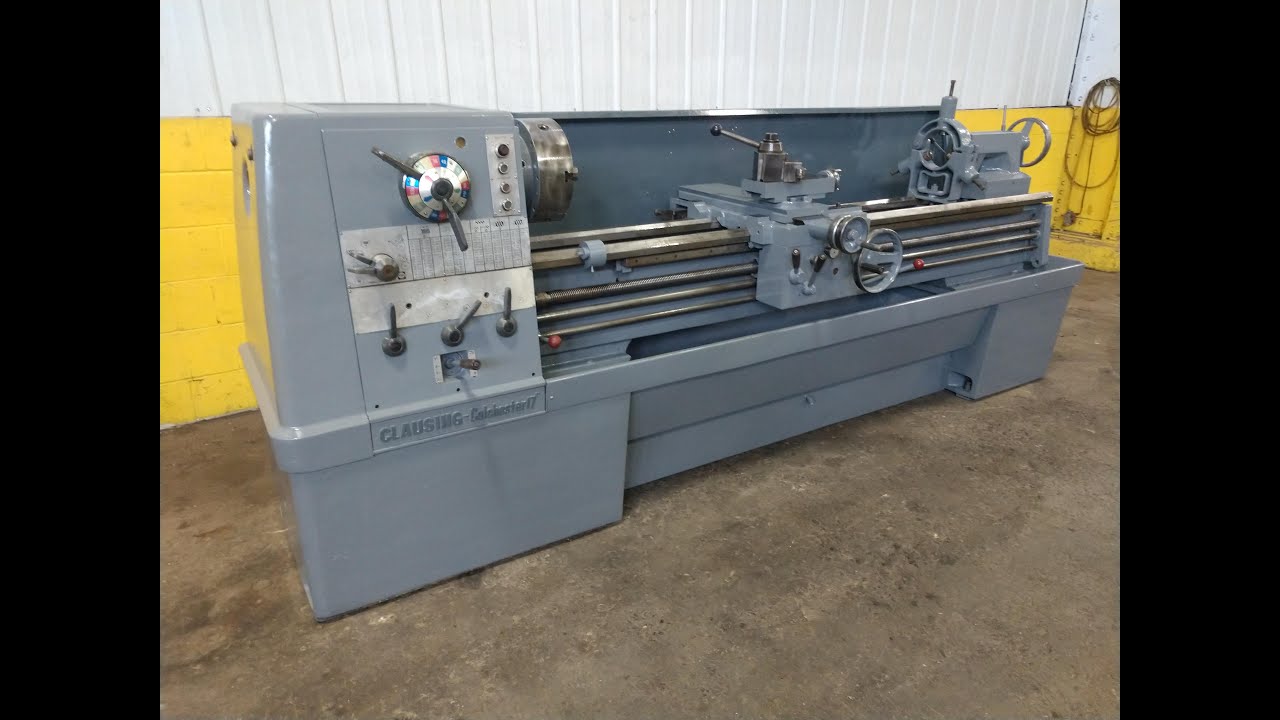

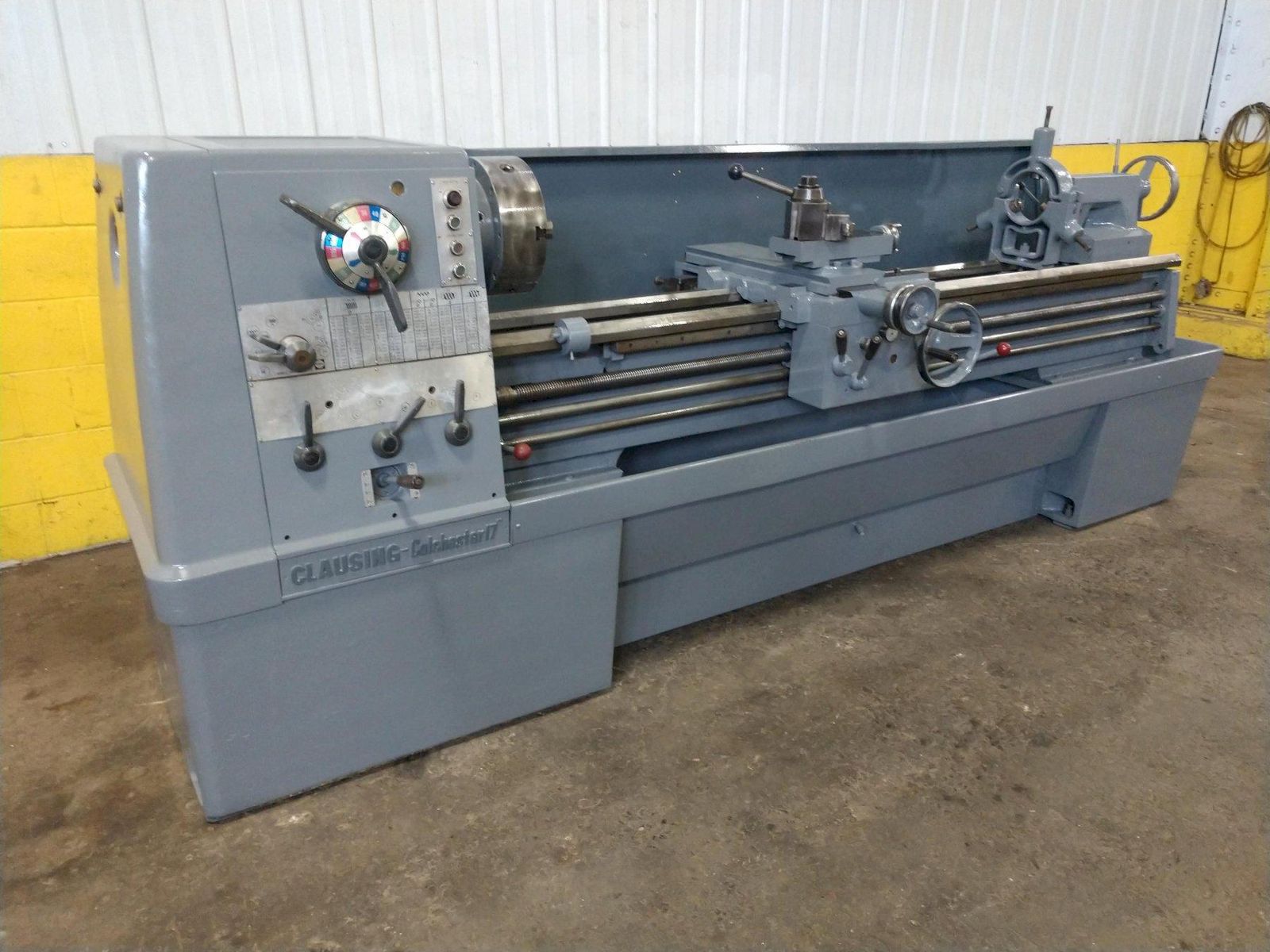

17" X 80" CLAUSING & COLCHESTER GAP BED ENGINE LATHE: STOCK #12420

Stock #: 12420

Equipped With

SERIAL .............................
MODEL .............................. 17"
SWING OVER WAYS .................... 18"
SWING IN GAP ....................... 28"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 80"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/16"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
TAPER ATTACHMENT ................... YES
CHUCK .............................. 12" 3 JAW
TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
CHIP PAN & BACK SPLASH GUARD ....... YES
COOLANT ............................ YES
MOTOR .............................. 10 HORSEPOWER





Buy Machines

17" X 80" CLAUSING & COLCHESTER GAP BED ENGINE LATHE: STOCK #12420

Stock # 12420

Share Machine
Print Details

Machine Specifications

SERIAL .............................
MODEL .............................. 17"
SWING OVER WAYS .................... 18"
SWING IN GAP ....................... 28"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 80"
SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/16"
FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI
CROSS FEEDS ........................ .001 TO .016
TAPER ATTACHMENT ................... YES
CHUCK .............................. 12" 3 JAW
TAPER IN TAIL STOCK ................ #5 MT
HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES
CHIP PAN & BACK SPLASH GUARD ....... YES
COOLANT ............................ YES
MOTOR .............................. 10 HORSEPOWER
