Machine Information

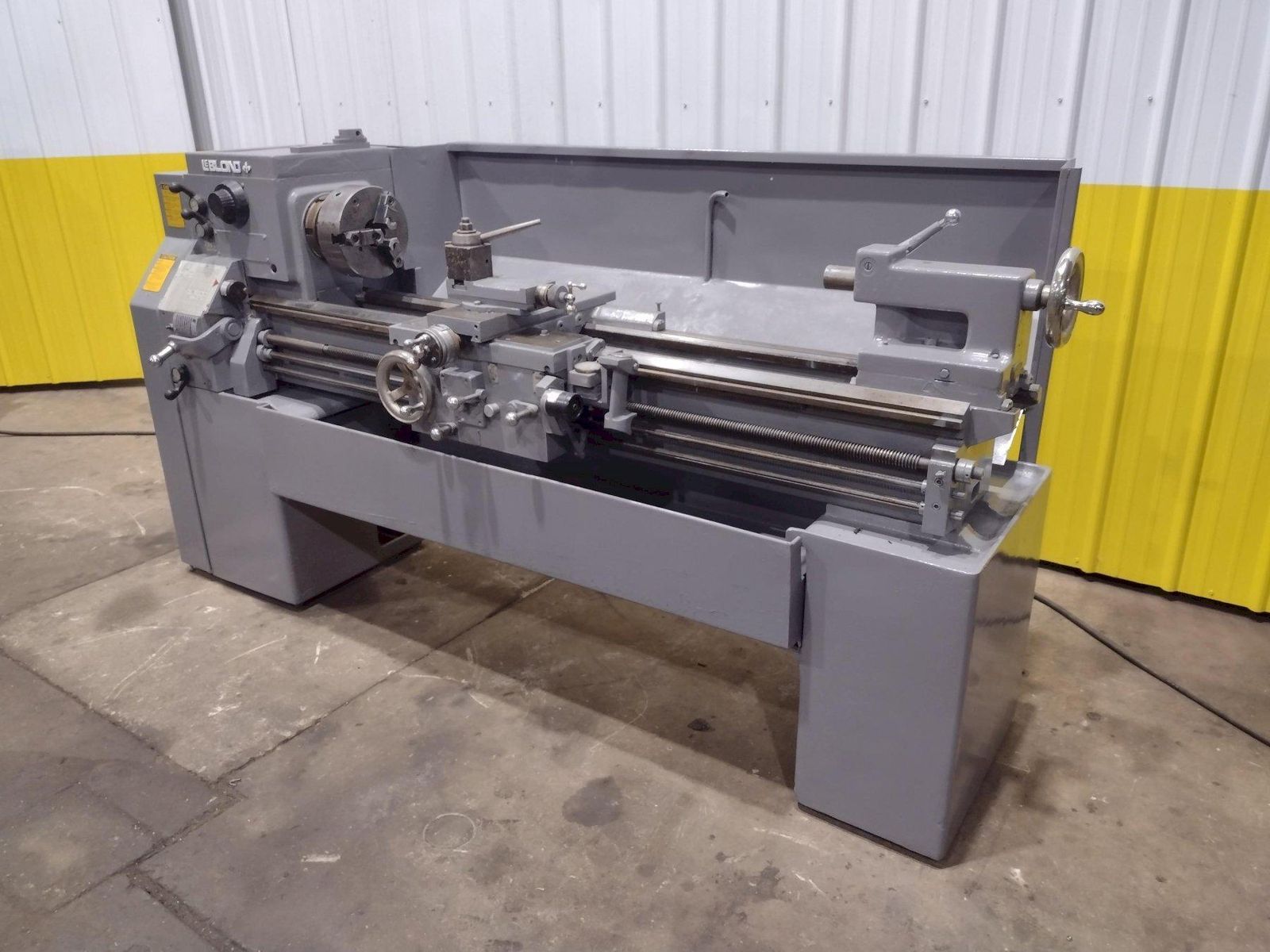

16" X 54" LEBLOND MODEL #12C REGAL SERVO SHIFT ENGINE LATHE, 2.25" HOLE : STOCK #22681

Stock #: 22681

Equipped With

SERIAL ............................ 12C-1261
MODEL ............................. REGAL SERVO SHIFT

ACTUAL SWING OVER BED ............. 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 54"
HOLE THRU SPINDLE ................. 2-9/32"
SPINDLE NOSE ...................... D-6 CAM-LOCK
SPINDLE SPEEDS .................... (12) 45 TO 1800 RPM
FEEDS (ENGLISH) ................... (48) .0018 TO .104 IPR
FEEDS (METRIC) .................... (48) .05 TO 2.6 MMPR
THREADS (ENGLISH) ................. (48) 2 TO 112 TPI
THREADS (METRIC) .................. (35) .25 TO 14 TPMM
THREAD DIAL ....................... YES
HARDENED REPLACEABLE WAYS ......... YES
CHUCK ............................. 3-JAW
CHIP PAN .......................... YES
MOTOR ............................. 7-1/2 HORSEPOWER
