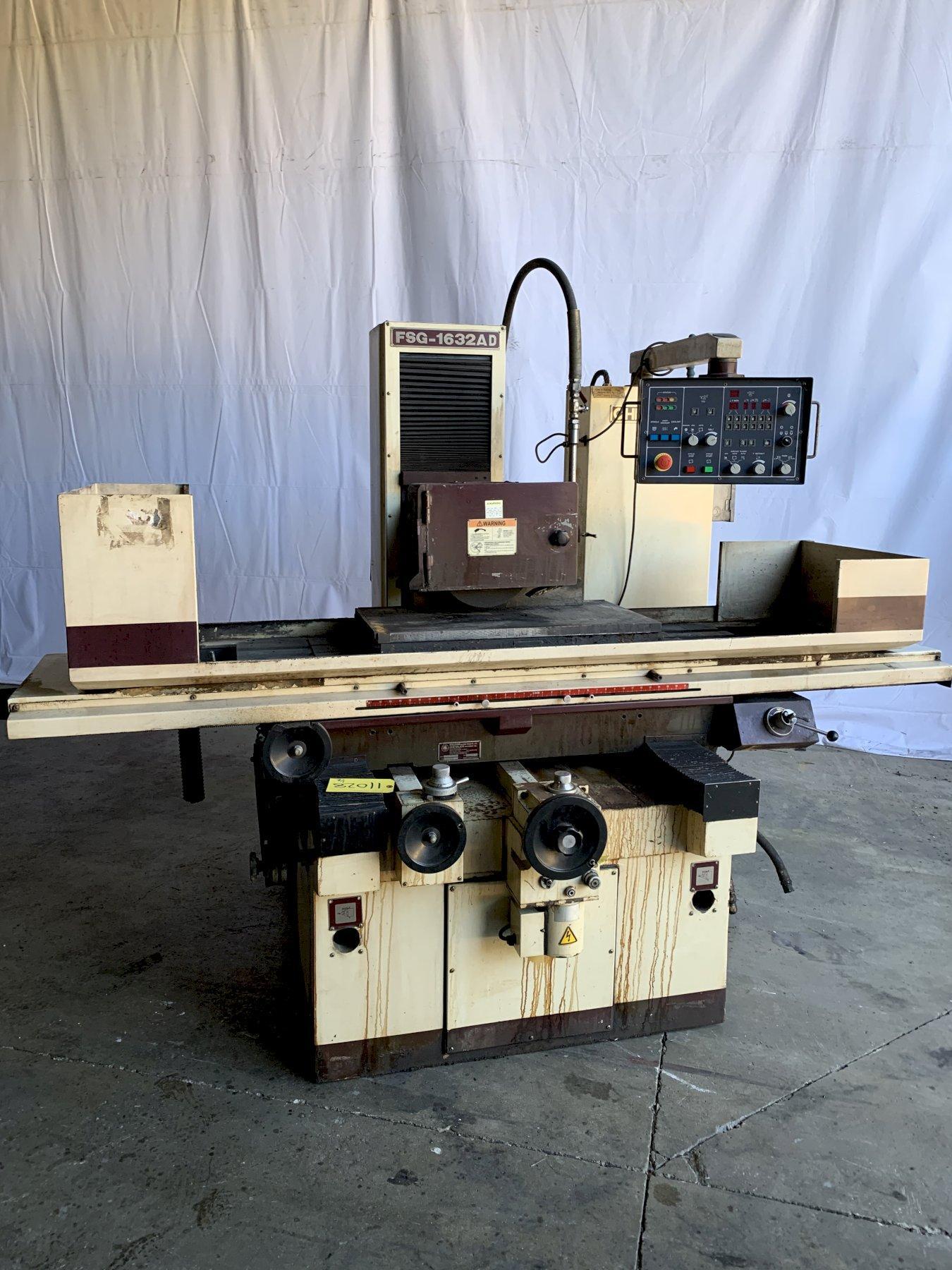

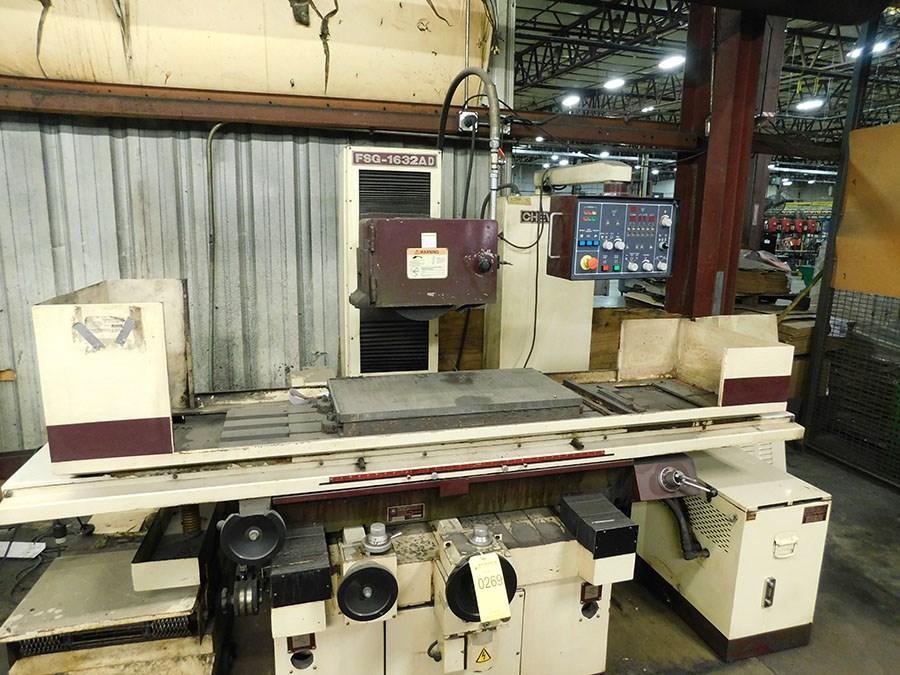

16" X 32" CHEVALIER MODEL #FSG-1632AD SURFACE GRINDER: STOCK 11028

Stock #: 11028

Equipped With

MODEL ................................. FSG-1632AD
GRINDING CAPACITY ..................... 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ............ 24"
LONGITUDINAL TABLE TRAVEL ............. 35-3/8"
CROSS TABLE TRAVEL .................... 18"
TABLE SPEED (VARIABLE) ................ 5 TO 25 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 14" X 2" X 5"
ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................... 0.005 IPR
POWER ELEVATION ....................... 12 FPM
COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 5 HORSEPOWER
HYDRAULIC MOTOR ....................... 2 HORSEPOWER
UPDATED CONTROLS

Buy Machines

16" X 32" CHEVALIER MODEL #FSG-1632AD SURFACE GRINDER: STOCK 11028

Stock # 11028

Share Machine
Print Details
Download Images

Machine Specifications

MODEL ................................. FSG-1632AD
GRINDING CAPACITY ..................... 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ............ 24"
LONGITUDINAL TABLE TRAVEL ............. 35-3/8"
CROSS TABLE TRAVEL .................... 18"
TABLE SPEED (VARIABLE) ................ 5 TO 25 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 14" X 2" X 5"
ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................... 0.005 IPR
POWER ELEVATION ....................... 12 FPM
COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES
ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 5 HORSEPOWER
HYDRAULIC MOTOR ....................... 2 HORSEPOWER
UPDATED CONTROLS
