Machine Information

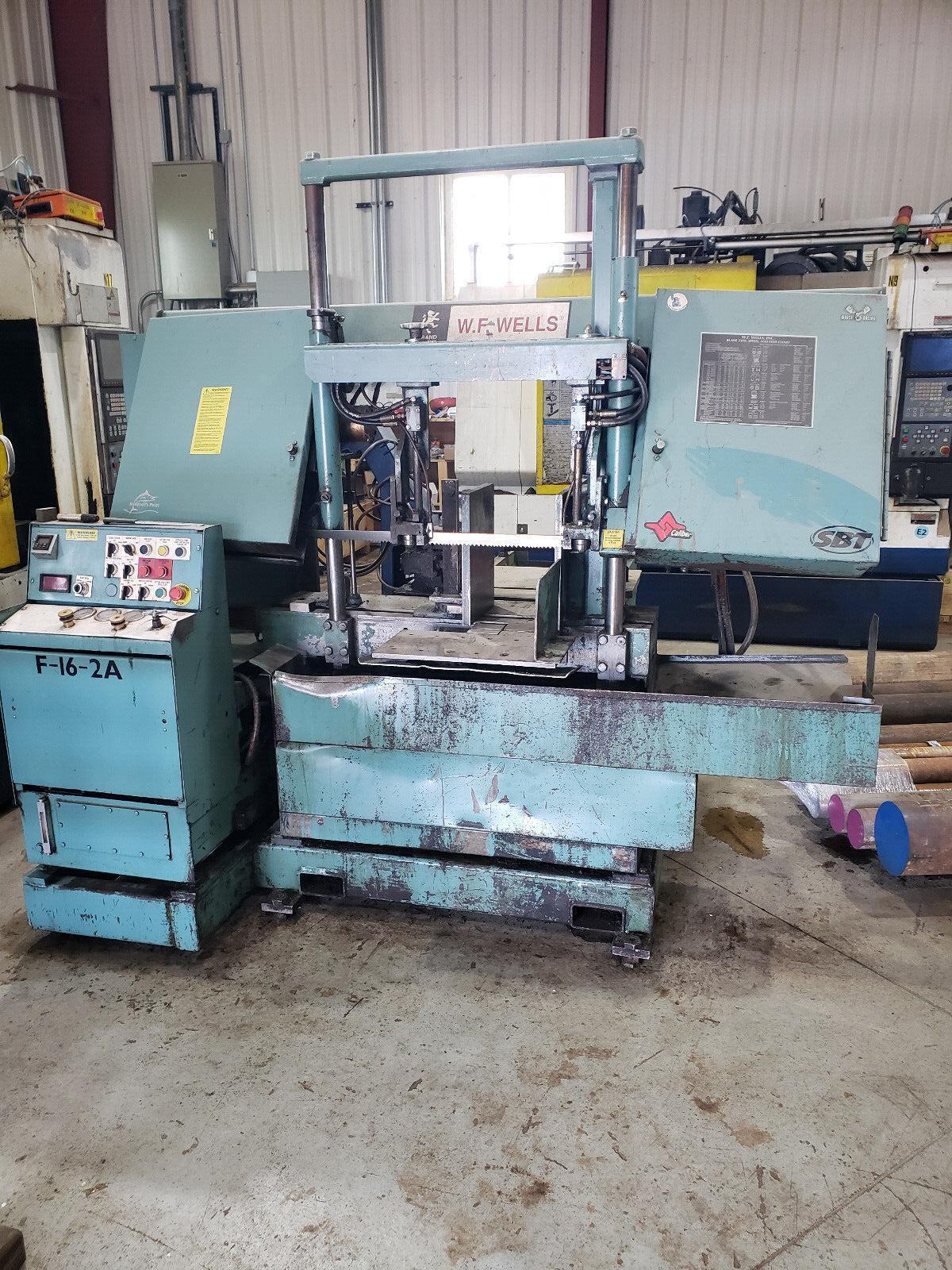

16" X 20" W. F. WELLS Model #F-16-2A TWIN POST AUTOMATIC FEED HORIZONTAL BAND SAW: STOCK 17210

Stock #: 17210

Equipped With

W. F. WELLS 16" X 20" Model F -16-2A TWIN POST HORIZONTAL BAND SAW.

SERIAL A2556/F00460
Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter
Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1¼” X .042″ X 15′
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Full Stroke Hydraulic, 8-1/2”
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force:0-750 lbs
Coolant Capacity:15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 26″
Shipping Weight: 2,450 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 97″ Length x 49″ Width x 83″ Height

Buy Machines

16" X 20" W. F. WELLS Model #F-16-2A TWIN POST AUTOMATIC FEED HORIZONTAL BAND SAW: STOCK 17210

Stock # 17210

Share Machine
Print Details

Machine Specifications

W. F. WELLS 16" X 20" Model F -16-2A TWIN POST HORIZONTAL BAND SAW.

SERIAL A2556/F00460
Capacity: Rectangular at 90° 16″ High x 20″ Wide, Round at 90° 16″ Diameter
Rectangular at 45° 16″ High X 9″ Wide, Round at 45° 9″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-425 SFPM
Blade Size: 1¼” X .042″ X 15′
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Full Stroke Hydraulic, 8-1/2”
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force:0-750 lbs
Coolant Capacity:15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 26″
Shipping Weight: 2,450 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 97″ Length x 49″ Width x 83″ Height
