Machine Information

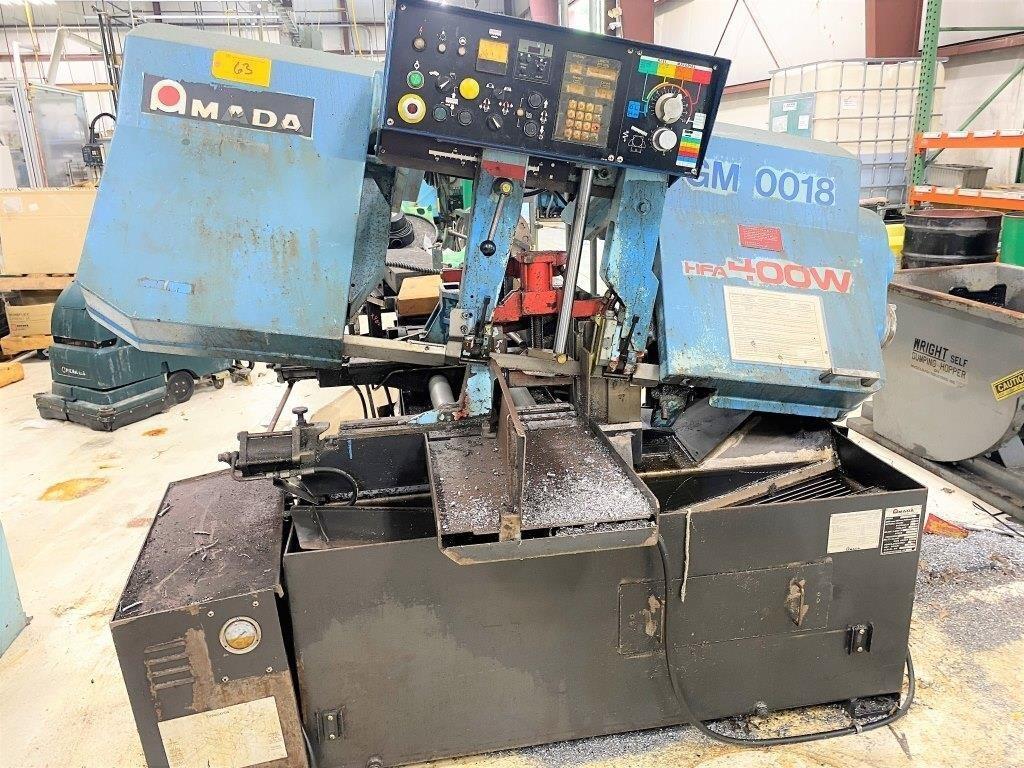

16" X 16" AMADA MODEL #HFA-400W AUTOMATIC HORIZONTAL BANDSAW: STOCK #15398

Stock #: 15398

Equipped With

SERIAL ..................... 4066-0285
MODEL ...................... HFA-400W
YEAR ....................... 1995
CAPACITY (RECTANGLE) ....... 16" X 16"
CAPACITY (ROUNDS) .......... 1.18" TO 16.54"
WORKLOAD CAPACITY .......... 5511 LBS
BLADE SPEEDS ............... (5) 50 TO 395 FPM

BLADE SIZE ................. 180" X 1.25" X .042"
FEED STROKE LENGTH ......... 19.6" SINGLE STROKE
AUTOMATIC MULTI SHUTTLE .... YES, UP TO 176"
TABLE HEIGHT ............... 31.5"

FRONT & REAR VISE .......... HYDRAULIC
COOLANT .................... YES
BLADE CLEANING BRUSH ....... YES
HYDRAULIC HEAD LIFT ........ YES
HYDRAULIC TENSION CONTROL .. YES

BLADE MOTOR ................ 7.5 HP
HYDRAULIC MOTOR ............ 2 HP
COOLANT MOTOR .............. 1/2 HP

Buy Machines

16" X 16" AMADA MODEL #HFA-400W AUTOMATIC HORIZONTAL BANDSAW: STOCK #15398

Stock # 15398

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ..................... 4066-0285
MODEL ...................... HFA-400W
YEAR ....................... 1995
CAPACITY (RECTANGLE) ....... 16" X 16"
CAPACITY (ROUNDS) .......... 1.18" TO 16.54"
WORKLOAD CAPACITY .......... 5511 LBS
BLADE SPEEDS ............... (5) 50 TO 395 FPM

BLADE SIZE ................. 180" X 1.25" X .042"
FEED STROKE LENGTH ......... 19.6" SINGLE STROKE
AUTOMATIC MULTI SHUTTLE .... YES, UP TO 176"
TABLE HEIGHT ............... 31.5"

FRONT & REAR VISE .......... HYDRAULIC
COOLANT .................... YES
BLADE CLEANING BRUSH ....... YES
HYDRAULIC HEAD LIFT ........ YES
HYDRAULIC TENSION CONTROL .. YES

BLADE MOTOR ................ 7.5 HP
HYDRAULIC MOTOR ............ 2 HP
COOLANT MOTOR .............. 1/2 HP
