Machine Information

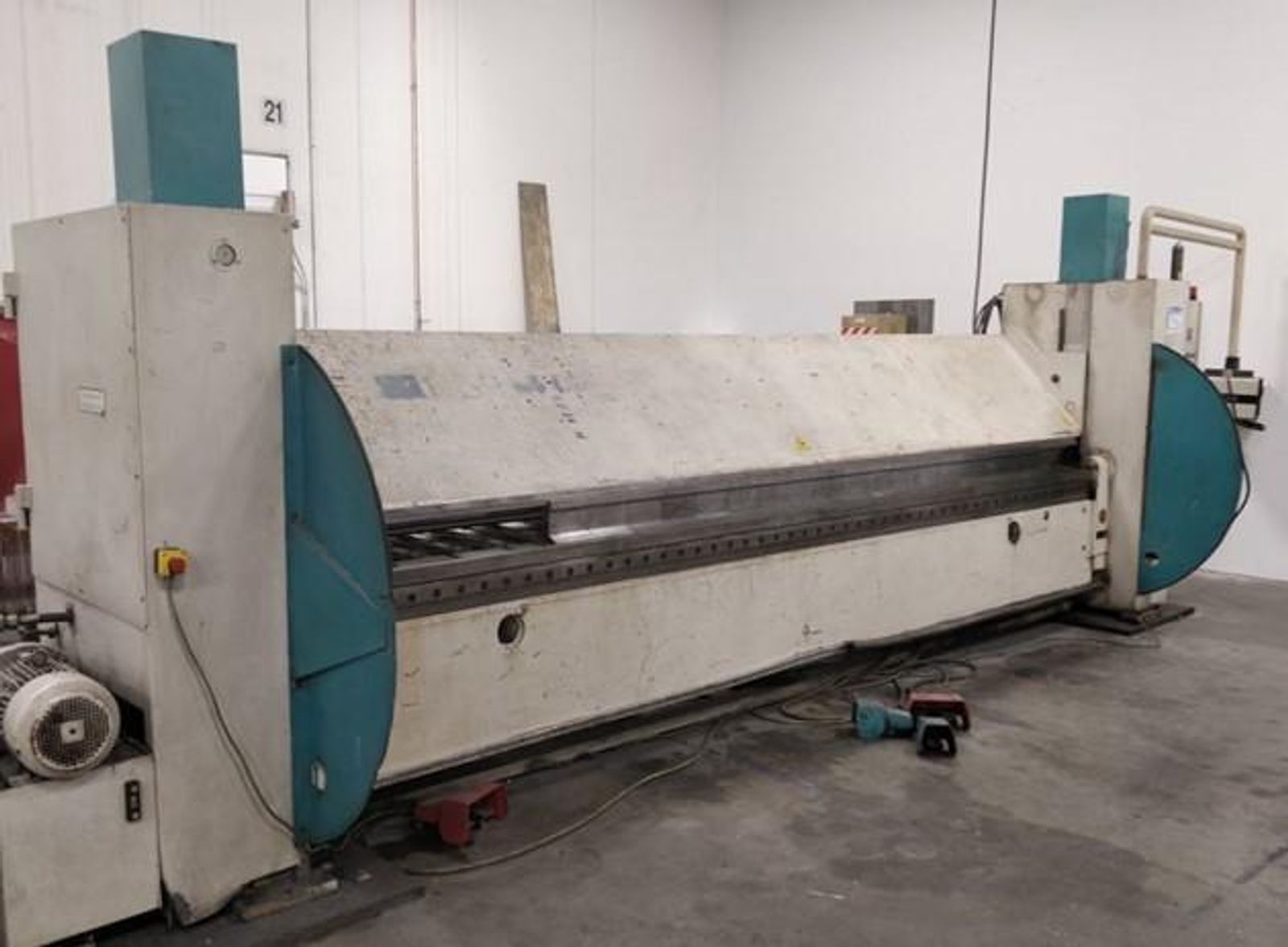

16' x .158” FASTI MODEL #215-50/4 CNC FOLDING MACHINE: STOCK #15556

Stock #: 15556

Equipped With

NEW ........................... 1998
OVERALL BENDING LENGTH ........ 198"

BENDING CAPACITY .............. 0.158"
BACK GAUGE DEPTH .............. 157"
SMALLEST INNER BEND RADIUS .... 1.5 x Thickness
MIN FLANGE HEIGHT  ............ 7 x Thickness
CLAMPING BEAM PROFILE ......... 45 Degrees
STROKE ........................ 19.69"
FOLDING BEAM ADJUSTMENT ....... 3.15"
ACCURACY ...................... +/- 0.5 Degrees
RANGE ......................... 0 – 180 Degrees
BACK GAUGE ACCURACY ........... +/- 0.004"
MOTOR - UPPER BEAM ............ 4.1 HP  3/60
LOWER BEAM .................... 10 HP  3/60

EQUIPPED WITH:
DELEM FM 200 BH CNC CONTROLLER
DUAL DRIVES
BACK GAUGE
