16 STAND x 3.5" x 20,000 LBS B&K "R-PANEL" RAFTED ROLLFORMER PANEL LINE: STOCK #16208

Stock #: 16208

Equipped With

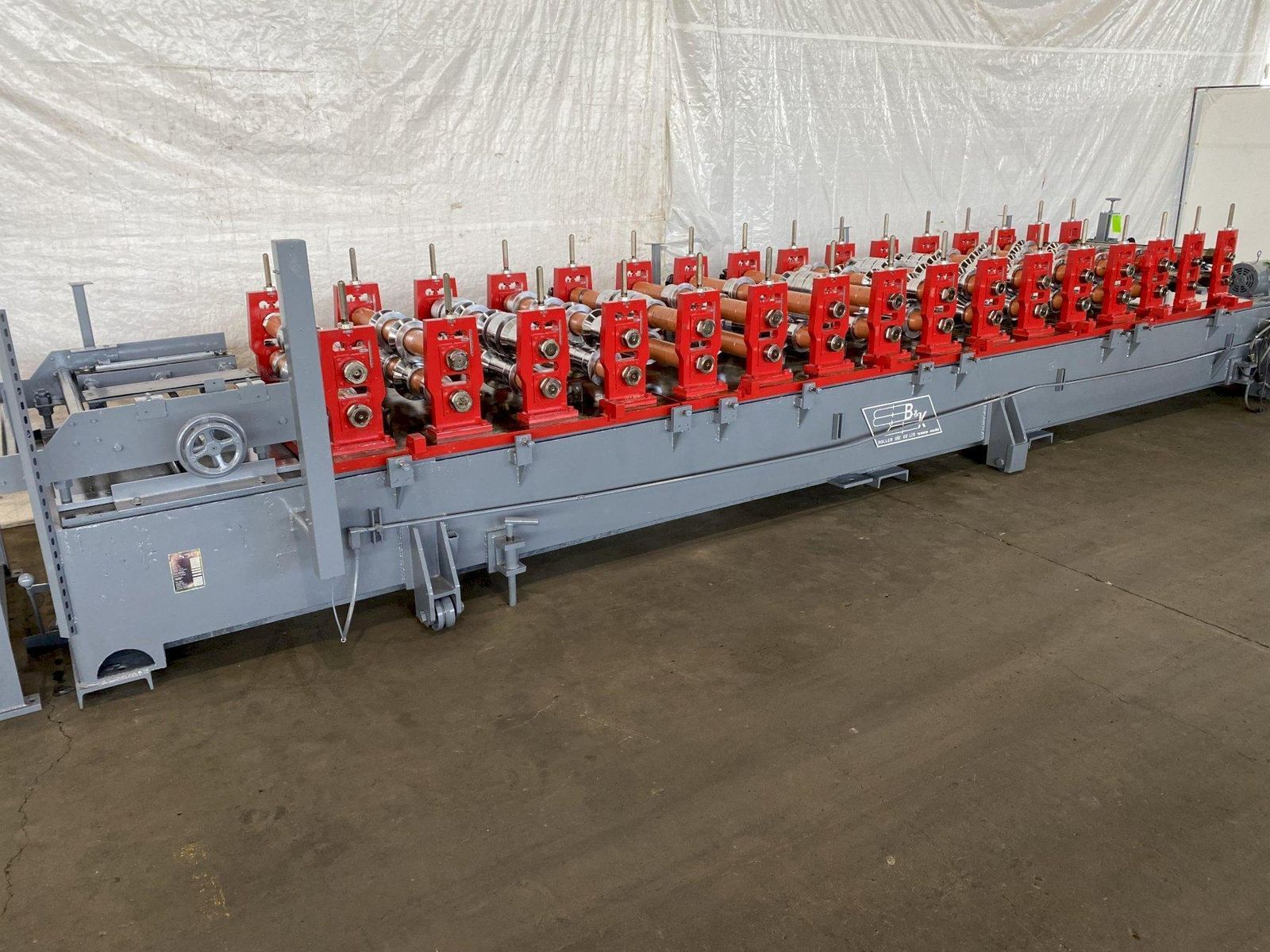

16 STAND B&K “R-PANEL” ROLLFORMER LINE


UNCOILER:
MAKE.................................: B&K
SERIAL...............................: 118
MODEL................................: 20UMKII
CAPACITY.............................: 20,000 LBS
MAX LENGTH...........................: 48"
MAX COIL O.D.........................: 60"
COIL I.D.............................: 14" - 20"
DRIVE MOTOR HP.......................: 3 HP
DRIVE MOTOR RPM......................: 1750
DRIVE REDUCTION RATIO................: 60:1
COIL CAR.............................: YES

ROLLFORMER:
MAKE.................................: B&K
SERIAL...............................: 100
MODEL................................: 2-1/2 BU
# OF STANDS..........................: 16
ARBOR DIAMETER.......................: 3-1/2"
ROLL SPACING.........................: 44"
HORIZONTAL CENTERS...................: 18"
VERTICAL ADJUSTMENT..................: 5" - 10"
EQUAL GEARING........................: YES
HP...................................: 50
MOTOR RPM............................: 0:1700
SPINDLE GEAR RATIO...................: 1:1
DRIVE HOUSING REDUCTION RATIO........: 7.2:1
BASE TO BOTTOM OF SPINDLE............: 6"
RAFTED:
4 SETS OF 4

FLYING SHEAR WITH AC SERVO ACCELERATOR

MACHINE IS SET UP FOR 36" R PANEL
BRADBURY TOOLING

Buy Machines

16 STAND x 3.5" x 20,000 LBS B&K "R-PANEL" RAFTED ROLLFORMER PANEL LINE: STOCK #16208

Stock # 16208

Share Machine
Print Details

Machine Specifications

16 STAND B&K “R-PANEL” ROLLFORMER LINE

  • 3.5” ARBOR DIAMETER
  • 44" ROLLSPACE
  • TOOLED FOR “R-PANEL”
  • B&K UNCOILER
  • B&K COIL CAR
  • B&K ROLLFORMER
  • B&K POST CUT SHEAR
  • EXIT BELT CONVEYOR
  • CONTROLS

UNCOILER:
MAKE.................................: B&K
SERIAL...............................: 118
MODEL................................: 20UMKII
CAPACITY.............................: 20,000 LBS
MAX LENGTH...........................: 48"
MAX COIL O.D.........................: 60"
COIL I.D.............................: 14" - 20"
DRIVE MOTOR HP.......................: 3 HP
DRIVE MOTOR RPM......................: 1750
DRIVE REDUCTION RATIO................: 60:1
COIL CAR.............................: YES

ROLLFORMER:
MAKE.................................: B&K
SERIAL...............................: 100
MODEL................................: 2-1/2 BU
# OF STANDS..........................: 16
ARBOR DIAMETER.......................: 3-1/2"
ROLL SPACING.........................: 44"
HORIZONTAL CENTERS...................: 18"
VERTICAL ADJUSTMENT..................: 5" - 10"
EQUAL GEARING........................: YES
HP...................................: 50
MOTOR RPM............................: 0:1700
SPINDLE GEAR RATIO...................: 1:1
DRIVE HOUSING REDUCTION RATIO........: 7.2:1
BASE TO BOTTOM OF SPINDLE............: 6"
RAFTED:
4 SETS OF 4

FLYING SHEAR WITH AC SERVO ACCELERATOR

MACHINE IS SET UP FOR 36" R PANEL
BRADBURY TOOLING
