16' X 5/8" CHICAGO DREIS & KRUMP AUTO-SELECT HYDRAULIC SHEAR: STOCK #15862

Stock #: 15862

Equipped With

MODEL ............................. OHS-16625

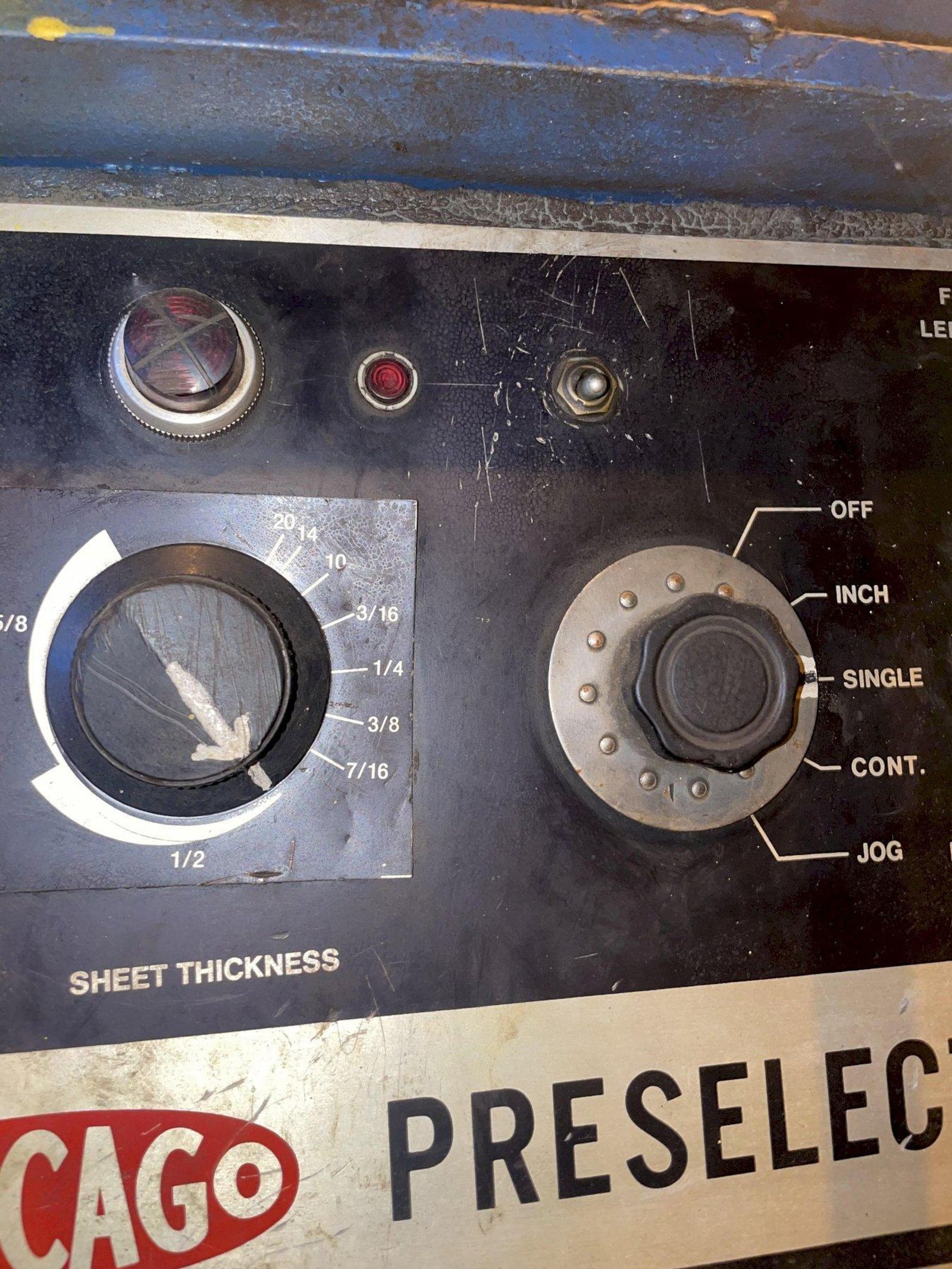

PRE-SELECT AUTO THICKNESS SELECT .. YES, 20 GA TO 5/8"
AUTO STROKE & RAKE AJUSTMENT ...... YES
MAX CUTTING CAPACITY .............. 5/8"
OVERALL LENGTH OF BLADES .......... 16'(192")
DEPTH OF THROAT ................... 20"
RAM SPEED DOWN .................... 120 IPM
RAM SPEED RETURN .................. 400 IPM
FRONT OPERATED POWER BACK GAUGE ... 60"
BACK GUAGE READOUT ................ YES
NUMBER OF HYDRAULIC HOLDDOWNS ..... 22
RUN MODES ......................... INCH, SINGLE, CONT, JOG
PNEUMATIC BALL TRANSFERS IN BED ... YES
SQUARING ARM ...................... YES
STROKE COUNTER DISPLAY ............ YES
CUT LIGHT BEAM .................... YES
ELECTRIC FOOT TRIP ................ YES
SQUARING ARM ...................... YES
MOTOR ............................. 30 HORSEPOWER
