Machine Information

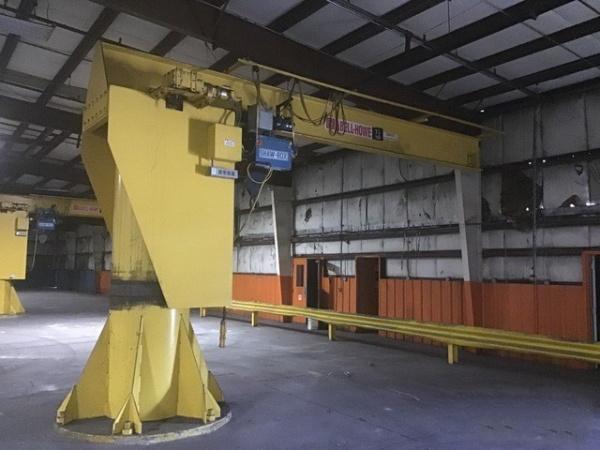

15,000 LB ABELL-HOWE / SHAW BOX POWERED ROTATION FREE STANDIND JIB CRANE: STOCK #15165

Stock #: 15165

Equipped With

SERIAL ...................... 74856-2
MODEL ....................... J-904-360-24HH-BMD
LIFTING CAPACITY ............ 7.5 TON (15,000 LBS)

ARM LENGTH .................. 21'6"
HEIGHT UNDER THE BEAM ....... 12'
BEAM HEIGHT ................. 2'-0 1/2"
OVERALL HEIGHT .............. 14'-0 1/2"
DIAMETER OF COLUMN .......... 36"
DIAMETER OF COLUMN BASE ..... 72"
DIAMETER OF FOUNDATION ...... 13'

POWERED ROTATION ON COLUMN .. YES
ROTATION .................... 360 DEGREES
PENDANT CONTROL ............. YES, 8 BUTTON

SHAW BOX HOIST .............. 7.5 TON CAPACITY
MODEL ....................... 72M07-012S14-1
HOIST ....................... WIRE ROPE
HOISTING SPEED .............. 14 FPM
HOIST MOTOR ................. 7.5 HP
POWER TROLLEY SPEED ......... 50 FPM
TROLLEY MOTOR ............... 1/2 HP

TOTAL WEIGHT ................ 8500 LBS

Buy Machines

15,000 LB ABELL-HOWE / SHAW BOX POWERED ROTATION FREE STANDIND JIB CRANE: STOCK #15165

Stock # 15165

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 74856-2
MODEL ....................... J-904-360-24HH-BMD
LIFTING CAPACITY ............ 7.5 TON (15,000 LBS)

ARM LENGTH .................. 21'6"
HEIGHT UNDER THE BEAM ....... 12'
BEAM HEIGHT ................. 2'-0 1/2"
OVERALL HEIGHT .............. 14'-0 1/2"
DIAMETER OF COLUMN .......... 36"
DIAMETER OF COLUMN BASE ..... 72"
DIAMETER OF FOUNDATION ...... 13'

POWERED ROTATION ON COLUMN .. YES
ROTATION .................... 360 DEGREES
PENDANT CONTROL ............. YES, 8 BUTTON

SHAW BOX HOIST .............. 7.5 TON CAPACITY
MODEL ....................... 72M07-012S14-1
HOIST ....................... WIRE ROPE
HOISTING SPEED .............. 14 FPM
HOIST MOTOR ................. 7.5 HP
POWER TROLLEY SPEED ......... 50 FPM
TROLLEY MOTOR ............... 1/2 HP

TOTAL WEIGHT ................ 8500 LBS
