Machine Information

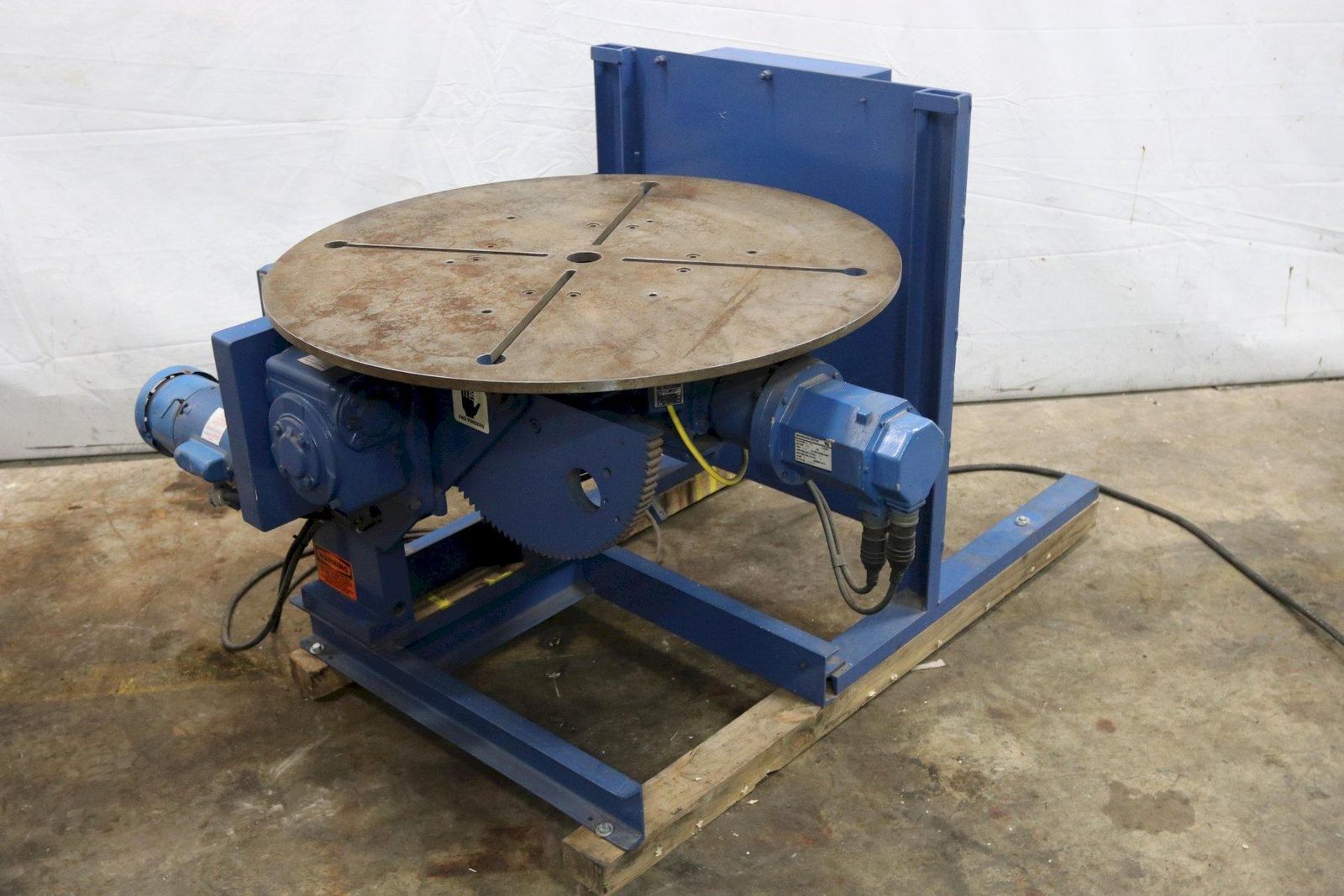

1500 LBS PANDJIRIS MODEL 15-4 SINGLE PHASE 110V WELDING POSITIONER: STOCK #12199

Stock #: 12199

Equipped With

SERIAL ........................ 12311E00
MODEL ......................... 15-4 SERVO
LOAD CAPACITY ................. 1500 LBS
DIAMETER OF TABLE ............. 36"
T SLOT IN TABLE ............... 4
FLOOR TO TABLE TOP IN FLAT .... 23-1/2" TO 37 -1/2" MAXIMUM
ROTATIONAL SPEED .............. 08 TO 1.60 RPM
VARIABLE SPEED CONTROL ........ YES
ROTATIONAL TORQUE ............. 6,000 INCH POUNDS
TILT RANGE .................... 0 TO 135 DEGREES, MOTORIZED
ELECTRIC FOOT PEDAL ........... YES
ADJUSTABLE BASE ............... 5"
PHASE ......................... 1
VOLTAGE ....................... 115
TILT MOTOR .................... 1/2 HORSEPOWER
SERVO ROTATION MOTOR .......... 3/4 HORSEPOWER
