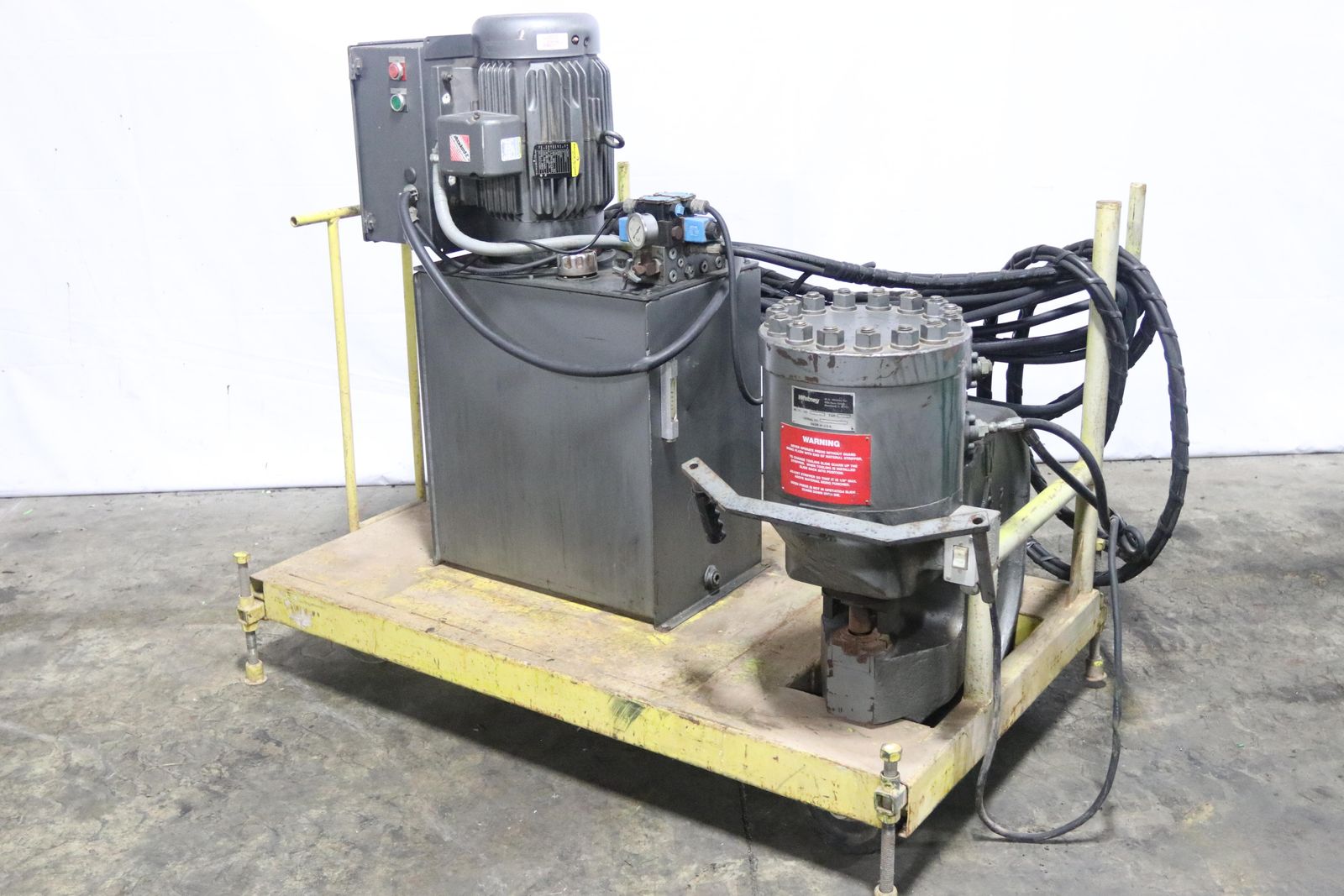

Portable Hydraulic Flange Press
Model 7150AX6
150 ton capacity
Hydraulic Tank
Portable cart
Support Springs
6.25" throat depth
2" stroke
Ram and die shoe keyed to align shaped tools.
Includes an electrical limit switch assembly, an adjustable ring stripper,
a selection of coupling nuts, a coupling nut wrench, a handgrip assembly.
Hydraulic Power Unit
Model 700-SV-20A
Approximate cycle time is 9 seconds with this unit.
700-SV-20A-1V (vertical design unit) ships with the following standard items:
- 20 H.P.,Motor.
- Magnetic starter and contactor.
- Lockwired relief valve.
- Solenoid operated control valve to operate one press.
- Control box with rocker switch for up/down press operation.
- Pressure gage (0 to 5000 P.S.I.).
- Hydraulic oil.
Hose and Control Wire Assembly
40' long. Available for 3, 10 & 20 HP power units.
Includes two (2) 3/8" I.D. hoses and control wire wrapped together
Suspension Spring for models 791AX18, 7150AX6, 7150AX12
Total package price would be over $48,000!
Brand
WHITNEY
Type
Flangers
Stock No.
10532
 |
