Machine Information

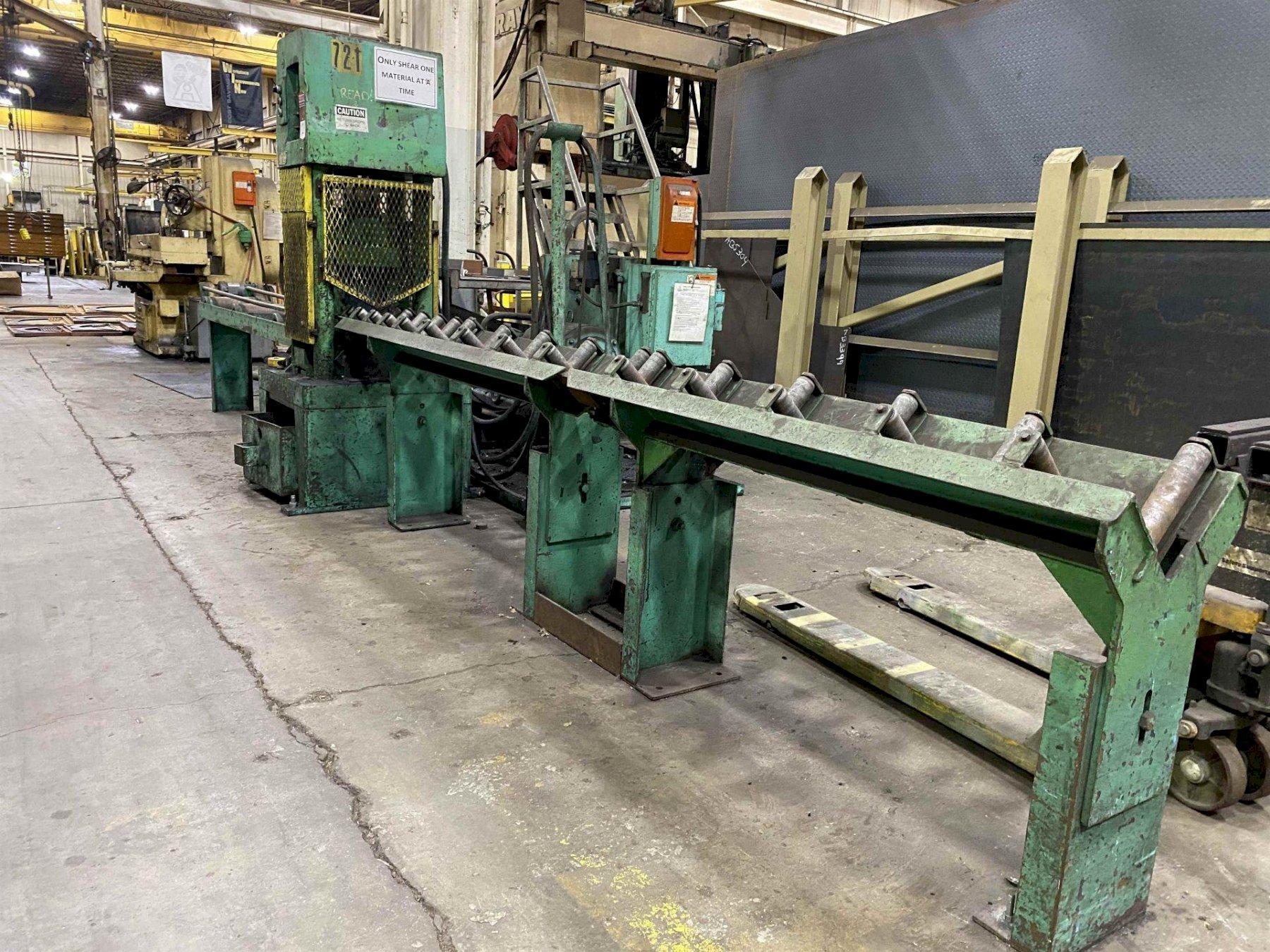

150 TON WA WHITNEY MODEL #765-000 HYDRAULIC ANGLE SHEAR: STOCK #14143

Stock #: 14143

Equipped With

SERIAL .......................... 15982
MODEL ........................... 765-000
CAPACITY ........................ 150 TONS
ANGLES (DOUBLE CUT) ............. 8" X 8" X 3/4"
FLATS ........................... 10" X 5/8" OR 8" X 3/4"
SQUARES ......................... 1-1/4"
ROUNDS .......................... 2-1/2"
OVERALL AREA OF BASE ............ 30" X 30"
DISTANCE BETWEEN COLUMNS ........ 14-1/2" X 9-1/2"
RAM FACE ........................ 12" X 8"
CYLINDER ROD DIAMETER ........... 6"
OPERATING PRESSURE .............. 5000 PSI
CYCLE TIME ...................... 2 TO 12 SECONDS
ELECTRIC FOOT TRIP .............. YES
HYDRAULIC UNIT .................. 30 HORSEPOWER


Buy Machines

150 TON WA WHITNEY MODEL #765-000 HYDRAULIC ANGLE SHEAR: STOCK #14143

Stock # 14143

Share Machine
Print Details

Machine Specifications

SERIAL .......................... 15982
MODEL ........................... 765-000
CAPACITY ........................ 150 TONS

ANGLES (DOUBLE CUT) ............. 8" X 8" X 3/4"
FLATS ........................... 10" X 5/8" OR 8" X 3/4"
SQUARES ......................... 1-1/4"
ROUNDS .......................... 2-1/2"
OVERALL AREA OF BASE ............ 30" X 30"
DISTANCE BETWEEN COLUMNS ........ 14-1/2" X 9-1/2"
RAM FACE ........................ 12" X 8"
CYLINDER ROD DIAMETER ........... 6"
OPERATING PRESSURE .............. 5000 PSI
CYCLE TIME ...................... 2 TO 12 SECONDS
ELECTRIC FOOT TRIP .............. YES
HYDRAULIC UNIT .................. 30 HORSEPOWER
