SERIAL ................... 8624
MODEL .................... 150PF-OBS
YEAR NEW ................. 1980
CAPACITY ................. 150 TON
STROKE ................... 10"
OPEN HEIGHT .............. 17-1/4"
CLOSED HEIGHT ............ 7-1/4"
BED ...................... 30" X 50"
THROAT ................... 16"
BETWEEN HOUSINGS ......... 31"
ADVANCE SPEED ............ 414 & 156 IPM
PRESS SPEED .............. 56 IPM
RETURN SPEED ............. 258 & 90 IPM
MAIN CYLINDER BORE ....... 12-1/2"
SLIDE BOLSTER ............ 4-1/2" X 24-1/2" X 34-1/2"
BED BOLSTER .............. 5" X 30-1/2" X 50-1/2"
VICKERS HYDRAULIC UNIT ... 3 SPEED
MOTOR .................... 30 HP
| Specifications | ||
|---|---|---|
| Tonnage | 150 tons | |
| Stroke | 10 inches | |
| Daylight | 17.25 inches | |
| Power | 30 horsepower | |
| Bed Width | 50.5 inches | |
| Bed Length | 30.5 inches | |
| IPM | 56 inches-per-minute | |

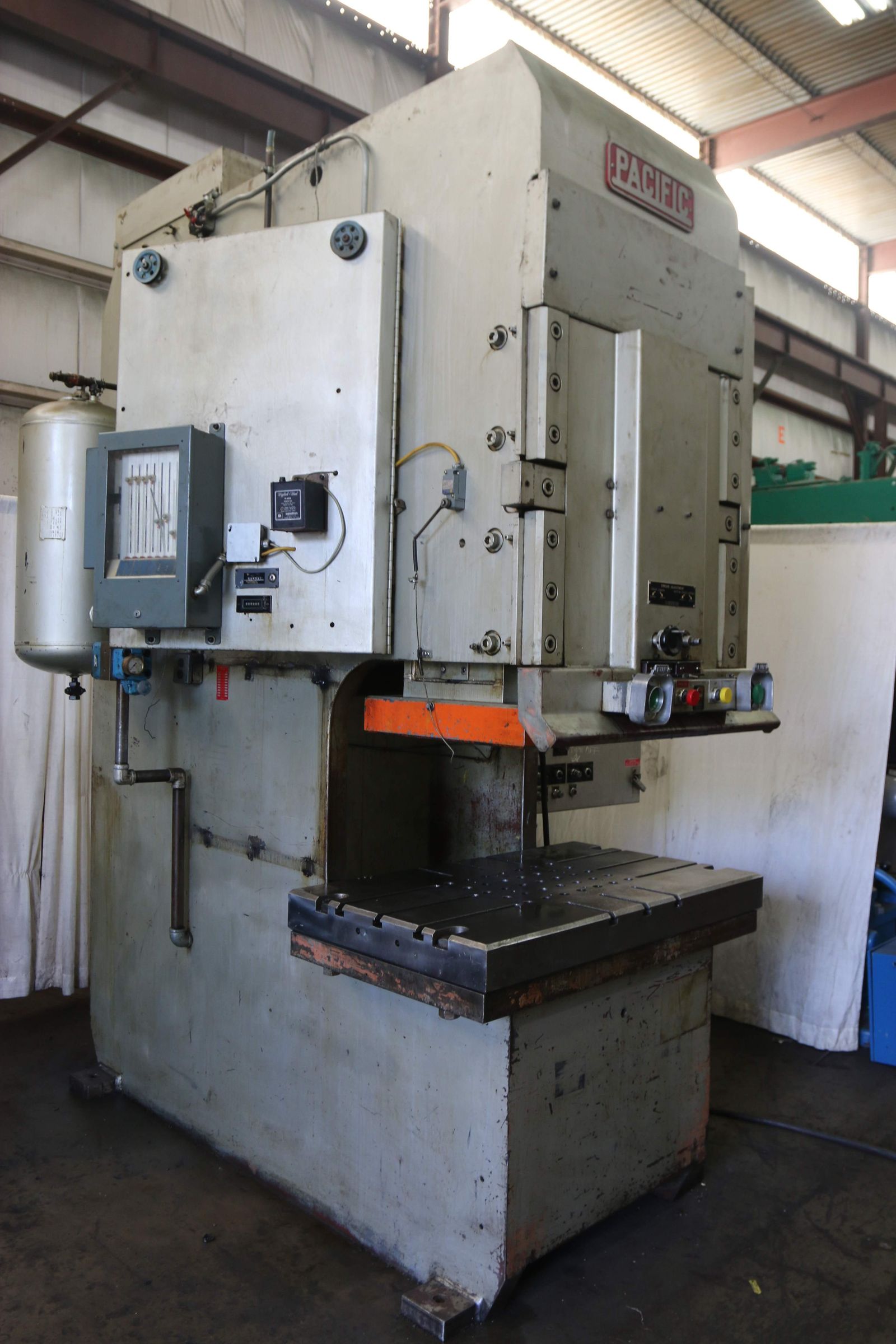

Brand
PACIFIC
Type
Presses, Hydraulic
Stock No.
10055
 |
419-269-2000 |
Stock #: 10055
SERIAL ................... 8624
MODEL .................... 150PF-OBS
YEAR NEW ................. 1980
CAPACITY ................. 150 TON
STROKE ................... 10"
OPEN HEIGHT .............. 17-1/4"
CLOSED HEIGHT ............ 7-1/4"
BED ...................... 30" X 50"
THROAT ................... 16"
BETWEEN HOUSINGS ......... 31"
ADVANCE SPEED ............ 414 & 156 IPM
PRESS SPEED .............. 56 IPM
RETURN SPEED ............. 258 & 90 IPM
MAIN CYLINDER BORE ....... 12-1/2"
SLIDE BOLSTER ............ 4-1/2" X 24-1/2" X 34-1/2"
BED BOLSTER .............. 5" X 30-1/2" X 50-1/2"
VICKERS HYDRAULIC UNIT ... 3 SPEED
MOTOR .................... 30 HP
