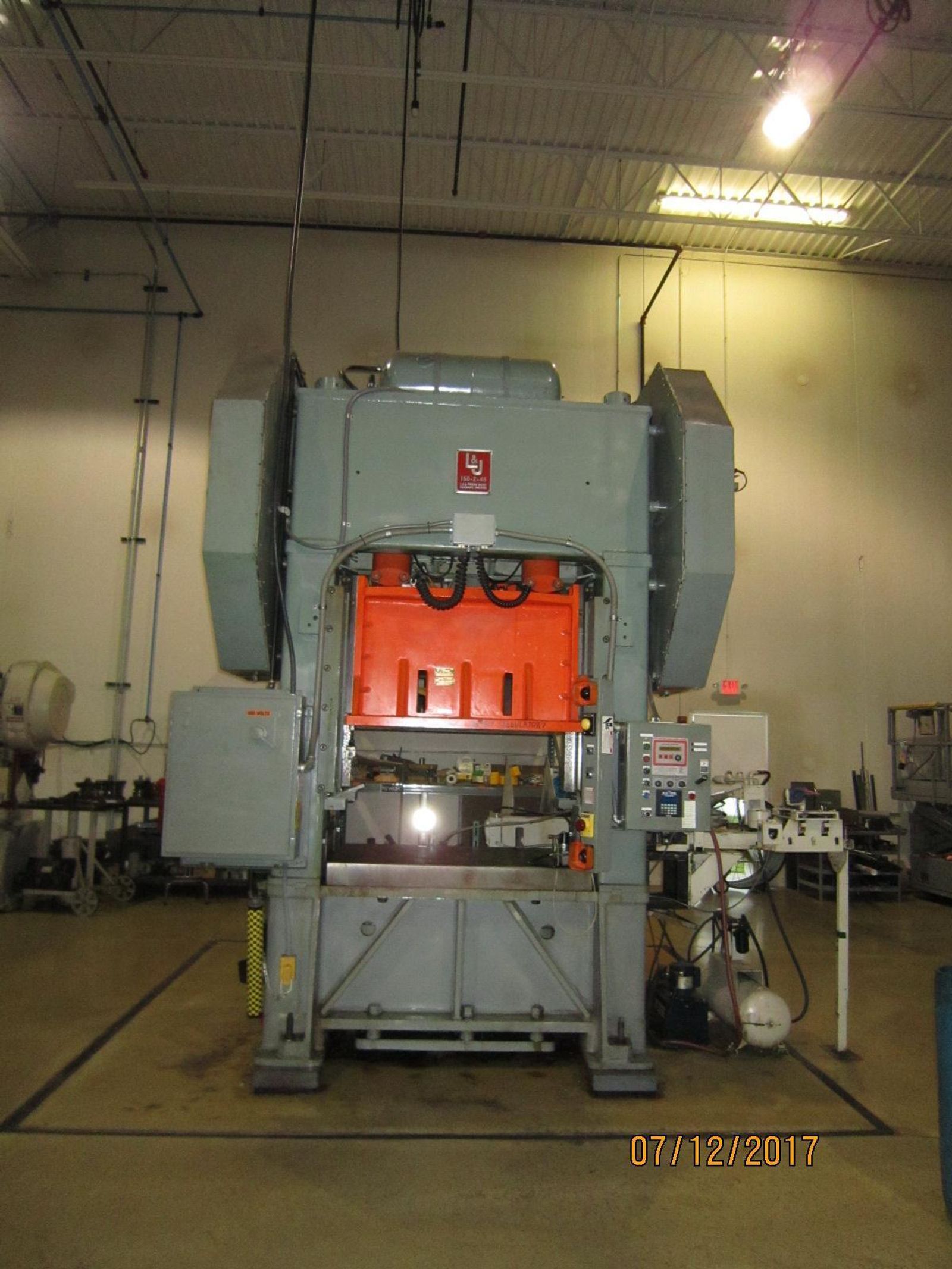

SERIAL ............................... 1502101-A
CAPACITY ............................. 150 TON
CRANKSHAFTER DIAMETER ................ 6.50" X 8.50" (MAIN BEARINGS & CRANK PINS)
SPEED ................................ 30 SPM
STROKE OF SLIDE ...................... 11.00"
ADJUSTMENT OF SLIDE .................. 4.00"
SLIDE AREA, R-L X F-B ................ 48" X 36"
BED AND BOLSTER AREA, R-L X F-B ...... 48" X 36"
BED OPENING UNDER BOLSTER, R-L X F-B . 40" X 21"
FLOOR TO TOP OF BED .................. 32.0"
CLEARANCE UNDER BED .................. 4.5"
DISTANCE BETWEEN GIBS, R-L ........... 48.0"
OPENING IN UPRIGHTS, F-B X T-B ....... 18" X 15" WINDOWS
BOLSTER PLATE THICKNESS, NOMINAL ..... 4.5"
SHUT HEIGHT, BED TO SLIDE FACE ....... 22.0" SDAU
NET DIE SPACE, BOLSTER TOP TO SLIDE .. 17.5" SDAU
MOTOR HORSEPOWER, SINGLE SPEED DRIVE . 20 HP
OVERALL HEIGHT ....................... 148"
OVERALL WEIGHT OF PRESS .............. 36,500 LBS
Brand
L&J
Type
Presses, Punch
Stock No.
19329
 |
419-269-2000 |
Stock #: 19329
SERIAL ............................... 1502101-A
CAPACITY ............................. 150 TON
CRANKSHAFTER DIAMETER ................ 6.50" X 8.50" (MAIN BEARINGS & CRANK PINS)
SPEED ................................ 30 SPM
STROKE OF SLIDE ...................... 11.00"
ADJUSTMENT OF SLIDE .................. 4.00"
SLIDE AREA, R-L X F-B ................ 48" X 36"
BED AND BOLSTER AREA, R-L X F-B ...... 48" X 36"
BED OPENING UNDER BOLSTER, R-L X F-B . 40" X 21"
FLOOR TO TOP OF BED .................. 32.0"
CLEARANCE UNDER BED .................. 4.5"
DISTANCE BETWEEN GIBS, R-L ........... 48.0"
OPENING IN UPRIGHTS, F-B X T-B ....... 18" X 15" WINDOWS
BOLSTER PLATE THICKNESS, NOMINAL ..... 4.5"
SHUT HEIGHT, BED TO SLIDE FACE ....... 22.0" SDAU
NET DIE SPACE, BOLSTER TOP TO SLIDE .. 17.5" SDAU
MOTOR HORSEPOWER, SINGLE SPEED DRIVE . 20 HP
OVERALL HEIGHT ....................... 148"
OVERALL WEIGHT OF PRESS .............. 36,500 LBS
