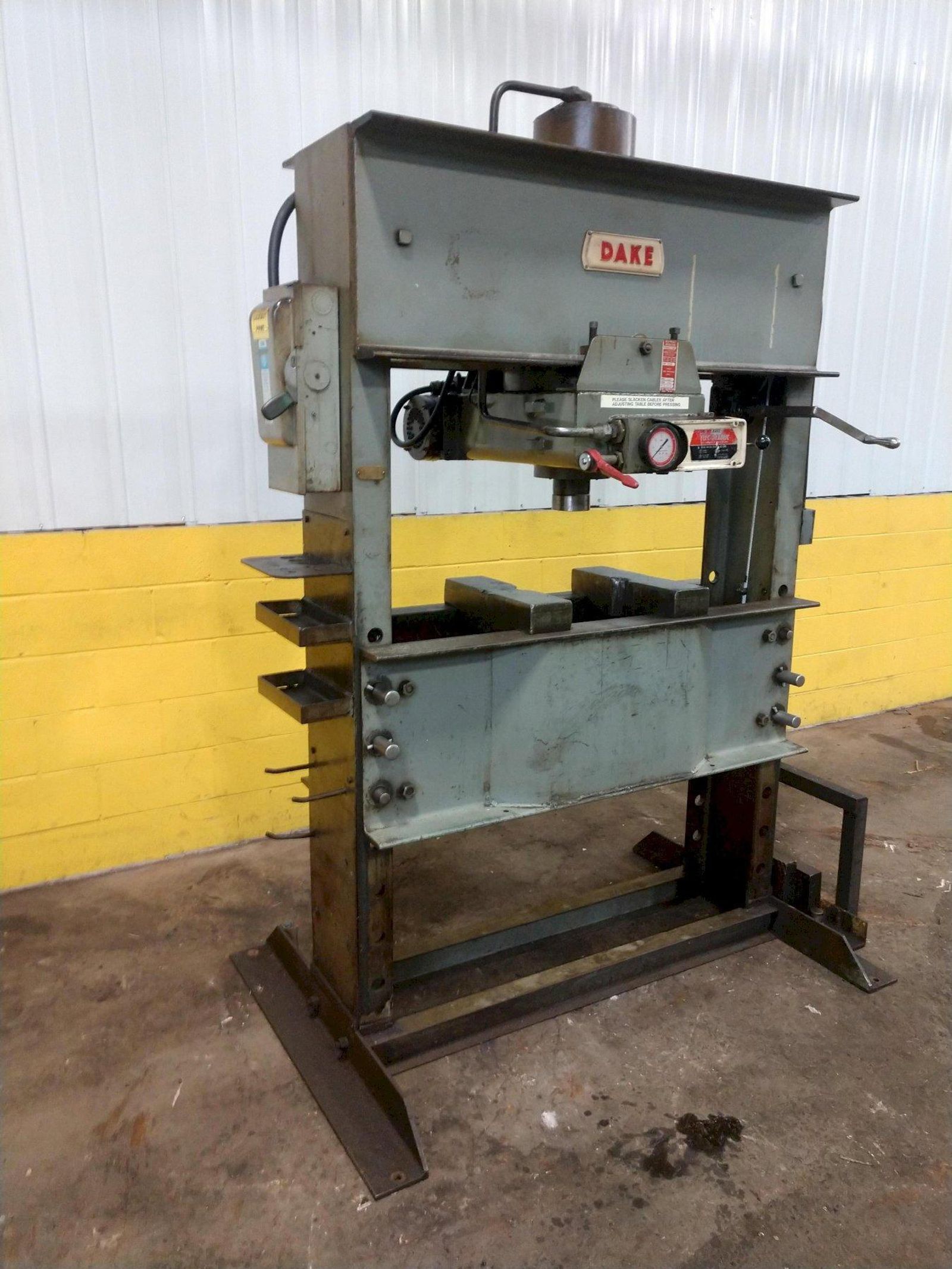

150 TON DAKE MODEL #5-151 HYDRAULIC SHOP PRESS: STOCK #13589

Stock #: 13589

Equipped With

SERIAL .............................. 170852

NEW ................................. 1976
ELEC-DRAULIC HEAD MODEL ............. 5-151
CAPACITY ............................ 150 TON
AREA OF BED ......................... 20" X 55"
DISTANCE BETWEEN UPRIGHTS ........... 48"
STROKE OF RAM ....................... 16"
DISTANCE RAM TO BED ................. 0" MINIMUM TO 30" MAXIMUM
HORIZONTAL HEAD TRAVEL .............. 24-3/4"
ADVANCE RAM SPEED ................... 16 IPM
PRESSING RAM SPEED .................. 2-3/4 IPM
DIAMETER OF RAM ..................... 8"
WIDTH OF BED CHANNELS ............... 20"
DISTANCE BETWEEN BED CHANNELS ....... 12-1/4"
ADJUSTABLE BED (5" CENTER HOLES) .... 20"
MOTOR ............................... 2 HORSEPOWER

150 TON DAKE MODEL #5-151 HYDRAULIC SHOP PRESS: STOCK #13589

Stock # 13589

Request a Quote

Share Machine

Print Details

Make an Offer

















Download Images

View All Images

Machine Specifications

SERIAL .............................. 170852

NEW ................................. 1976
ELEC-DRAULIC HEAD MODEL ............. 5-151

CAPACITY ............................ 150 TON

AREA OF BED ......................... 20" X 55"

DISTANCE BETWEEN UPRIGHTS ........... 48"

STROKE OF RAM ....................... 16"

DISTANCE RAM TO BED ................. 0" MINIMUM TO 30" MAXIMUM

HORIZONTAL HEAD TRAVEL .............. 24-3/4"

ADVANCE RAM SPEED ................... 16 IPM

PRESSING RAM SPEED .................. 2-3/4 IPM

DIAMETER OF RAM ..................... 8"

WIDTH OF BED CHANNELS ............... 20"

DISTANCE BETWEEN BED CHANNELS ....... 12-1/4"

ADJUSTABLE BED (5" CENTER HOLES) .... 20"

MOTOR ............................... 2 HORSEPOWER

Specifications
Dimensions	66 X 42 X 95" HIGH
Weight	3000 pounds
