Machine Information

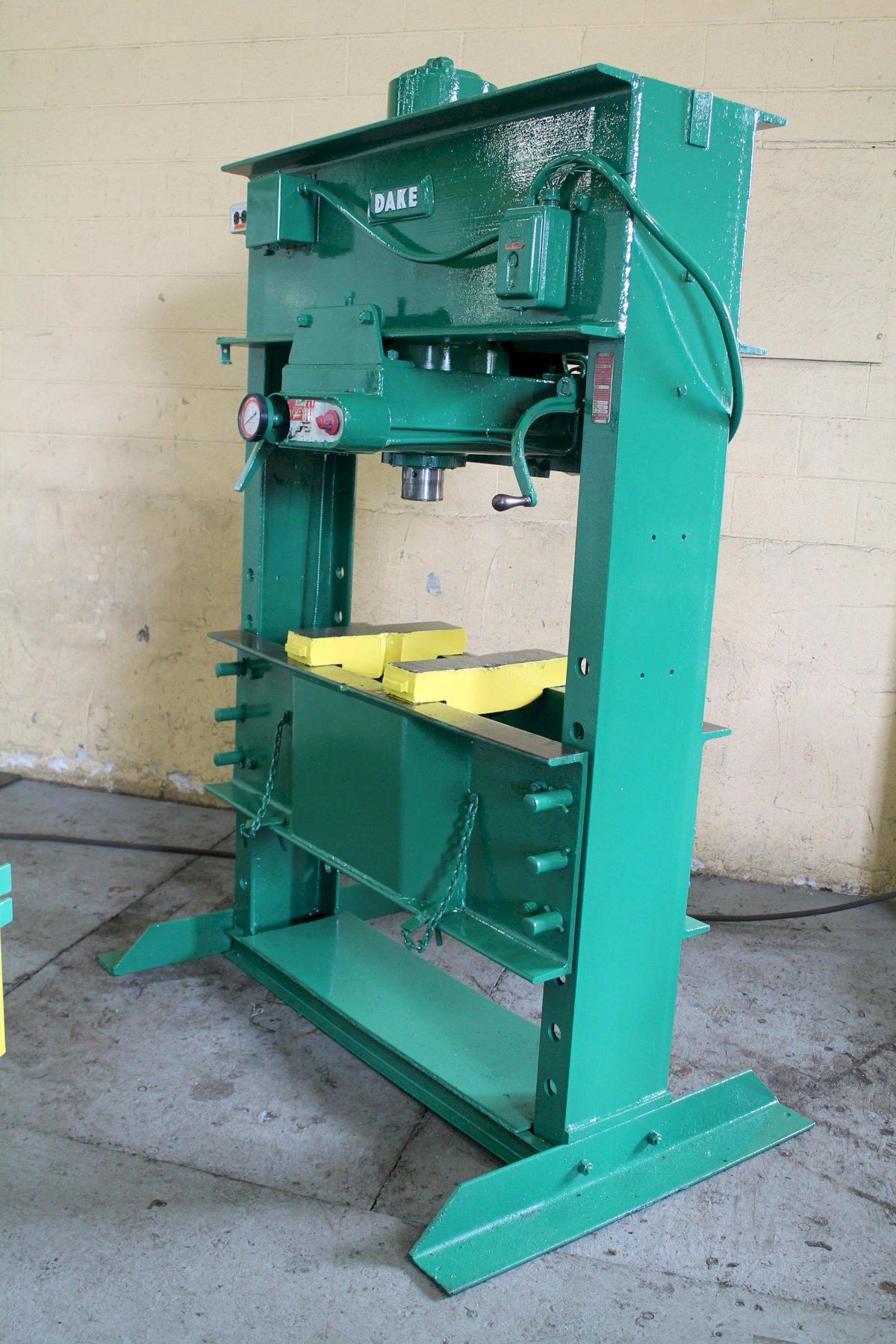

150 TON DAKE MODEL #5-150A ELEC-DRAULIC HYDRAULIC H FRAME PRESS: STOCK #12569

Stock #: 12569

Equipped With

SERIAL ............................. 150207
MODEL .............................. 5-150A
CAPACITY ........................... 150 TONS
STROKE ............................. 16"
DISTANCE RAM TO TABLE .............. 6" MINIMUM TO 36" MAXIMUM
RAM SPEEDS ADVANCED ................ 16 IPM
RAM SPEED PRESSING ................. 2-3/4 IPM
CYLINDER ROD DIAMETER .............. 4"
DISTANCE BETWEEN HOUSING ........... 48"
DISTANCE BETWEEN TABLE CHANNELS .... 12-1/4"
OVERALL TABLE AREA ................. 48" X 20"
ADJUSTABLE TABLE HEIGHTS ........... YES
SINGLE ACTING ELEC-DRAULIC HEAD .... YES
SINGLE HAND LEVER .................. YES
AUTOMATIC RAM RETURN ............... YES
HEAD TRAVELS LEFT & RIGHT .......... YES
MOTOR .............................. 2 HORSEPOWER
