Machine Information

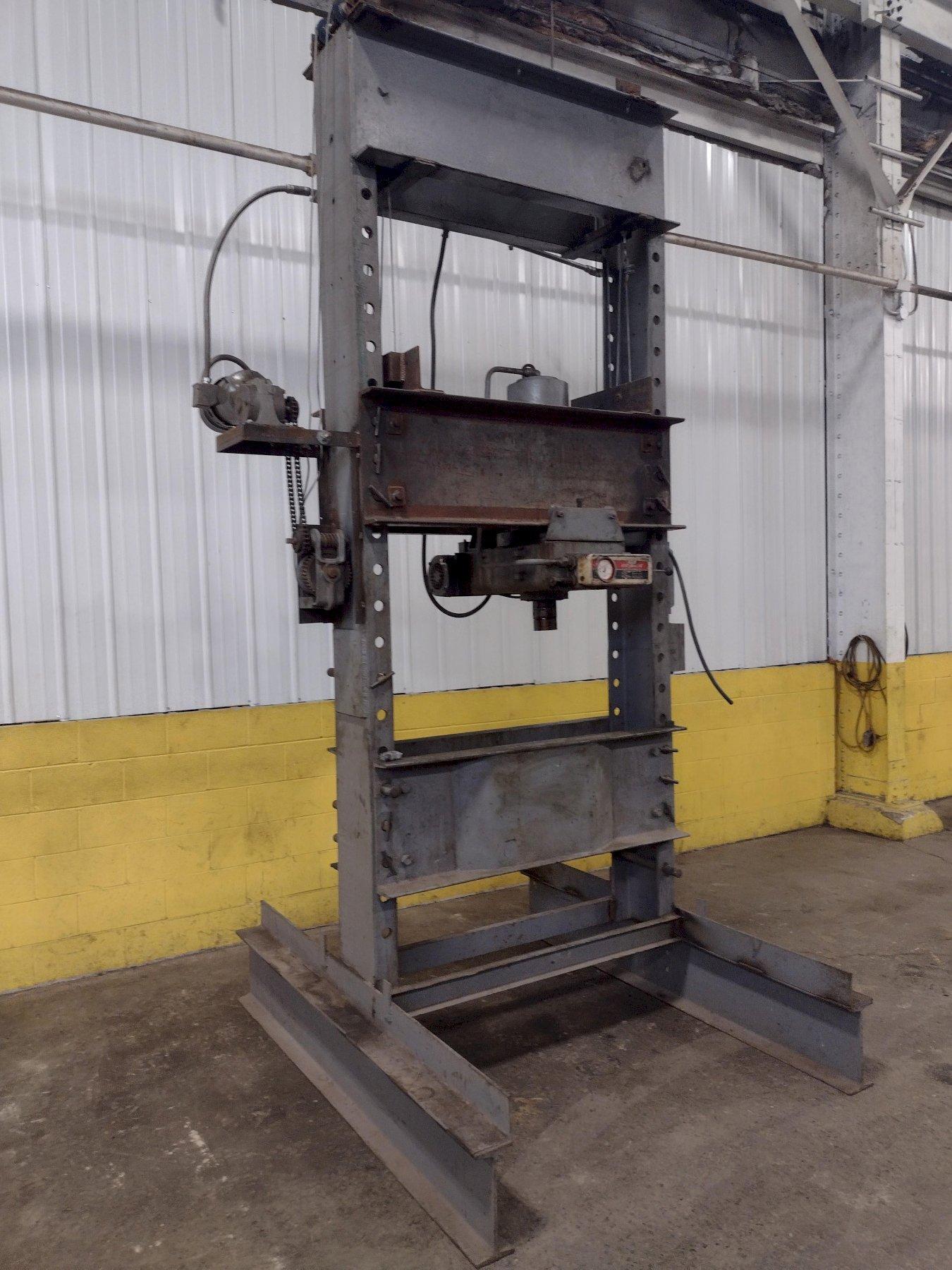

150 TON DAKE "ELEC-DRAULIC" EXTRA-HIGH HYDRAULIC H-FRAME PRESS: STOCK #15481

Stock #: 15481

Equipped With

SERIAL ............................. 2537
MODEL .............................. 50-101
CAPACITY ........................... 150 TON
BED AREA ........................... 21"FB X 48" LR
RAM TO BED, ADJUSTABLE FROM ........ 14" TO 64"
STROKE OF RAM ...................... 16"
DISTANCE BETWEEN BED CHANNELS ...... 12-1/4"
HORIZONTAL TRAVEL OF HEAD ON RAIL .. YES
ELECTRO-HYDRAULIC STYLE ............ YES
MOTOR, HORSEPOWER .................. 1 hp

Buy Machines

150 TON DAKE "ELEC-DRAULIC" EXTRA-HIGH HYDRAULIC H-FRAME PRESS: STOCK #15481

Stock # 15481

Share Machine
Print Details

Machine Specifications

SERIAL ............................. 2537
MODEL .............................. 50-101
CAPACITY ........................... 150 TON
BED AREA ........................... 21"FB X 48" LR
RAM TO BED, ADJUSTABLE FROM ........ 14" TO 64"
STROKE OF RAM ...................... 16"
DISTANCE BETWEEN BED CHANNELS ...... 12-1/4"
HORIZONTAL TRAVEL OF HEAD ON RAIL .. YES
ELECTRO-HYDRAULIC STYLE ............ YES
MOTOR, HORSEPOWER .................. 1 hp

Specifications
Weight 4200 pounds
