Overview

SERIAL ....................... 8C-3642

MODEL ........................ REGAL

SWING OVER WAYS .............. 15"

SWING OVER CROSS SLIDE ....... 9-1/2"

DISTANCE BETWEEN CENTERS ..... 30"

SPINDLE SPEEDS ............... (12) 45 TO 1800 RPM

FEEDS......................... (48) .0018 TO .104 IPR

THREADS (INCH) ............... (48) 4 TO 224 TPI

DIAMETER OF SPINDLE HOLE ..... 1-1/2"

CHUCK ........................ 10" 3 JAW

THREAD DIAL .................. YES

HARD WAYS .................... YES

SPINDLE FORWARD AND REVERSE .. YES

DIGITAL READ OUT ............. 2 AXIS

MOTOR ........................ 5 HORSEPOWER

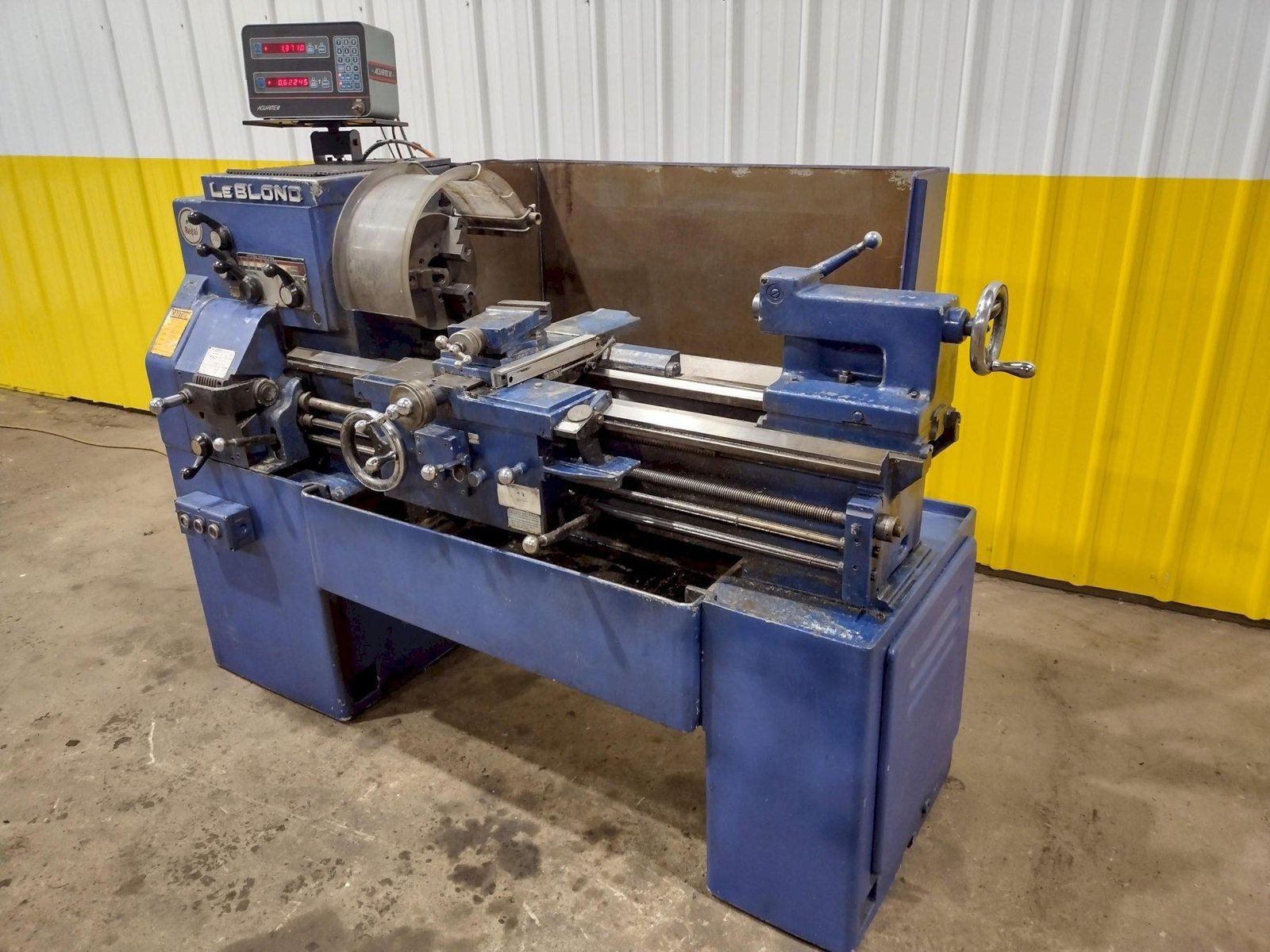

15" X 30" LEBLOND MODEL #8C ENGINE LATHE, 1.5" HOLE: STOCK #19330

Brand
LEBLOND

Type
Lathes, Engine

Stock No.
19330

Buy Now

Price: $7950.00

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

15" X 30" LEBLOND MODEL #8C ENGINE LATHE, 1.5" HOLE: STOCK #19330

Stock #: 19330

Equipped With

SERIAL ....................... 8C-3642
MODEL ........................ REGAL
SWING OVER WAYS .............. 15"
SWING OVER CROSS SLIDE ....... 9-1/2"
DISTANCE BETWEEN CENTERS ..... 30"
SPINDLE SPEEDS ............... (12) 45 TO 1800 RPM
FEEDS......................... (48) .0018 TO .104 IPR
THREADS (INCH) ............... (48) 4 TO 224 TPI
DIAMETER OF SPINDLE HOLE ..... 1-1/2"
CHUCK ........................ 10" 3 JAW
THREAD DIAL .................. YES
HARD WAYS .................... YES
SPINDLE FORWARD AND REVERSE .. YES
DIGITAL READ OUT ............. 2 AXIS
MOTOR ........................ 5 HORSEPOWER

Overview

15" X 30" LEBLOND MODEL #8C ENGINE LATHE, 1.5" HOLE: STOCK #19330
