| Specifications | ||
|---|---|---|
| Dimensions | 118” x 40” x 58” High | |
| Weight | 3700 pounds | |
Brand
CLAUSING NARDINI
Type
Lathes, Engine
Stock No.
19154
 |
419-269-2000 |

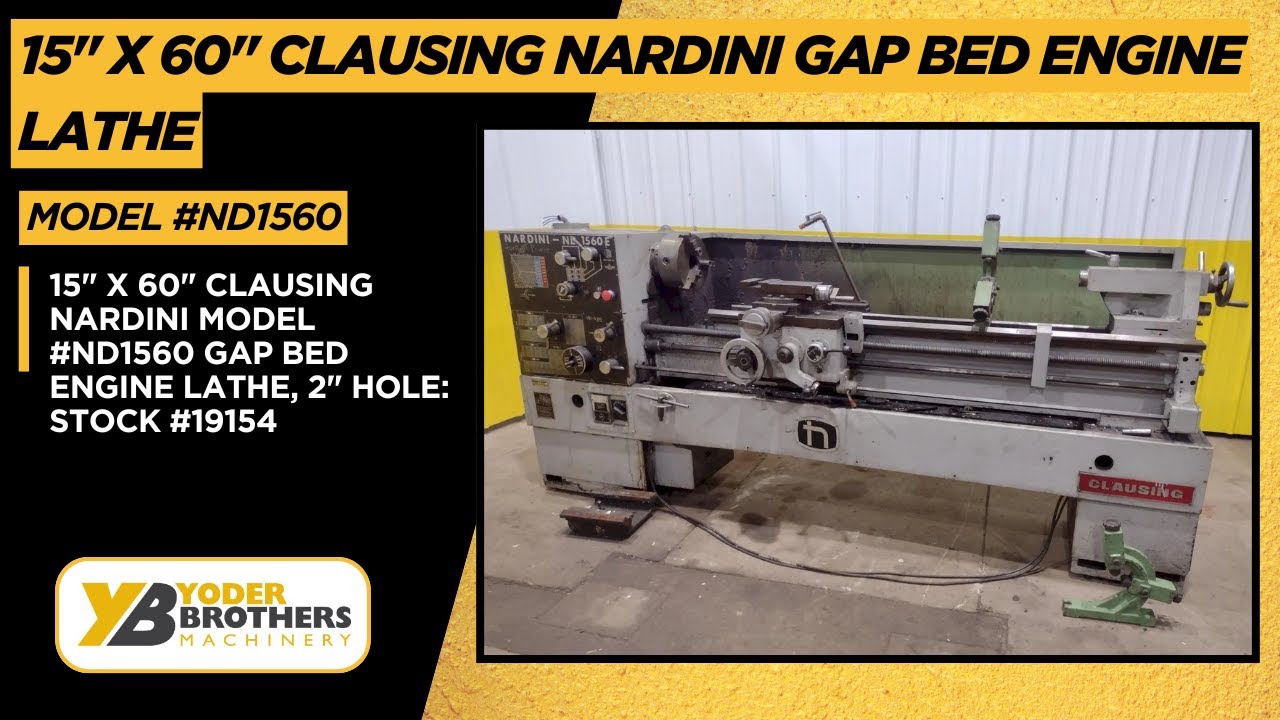

Stock #: 19154

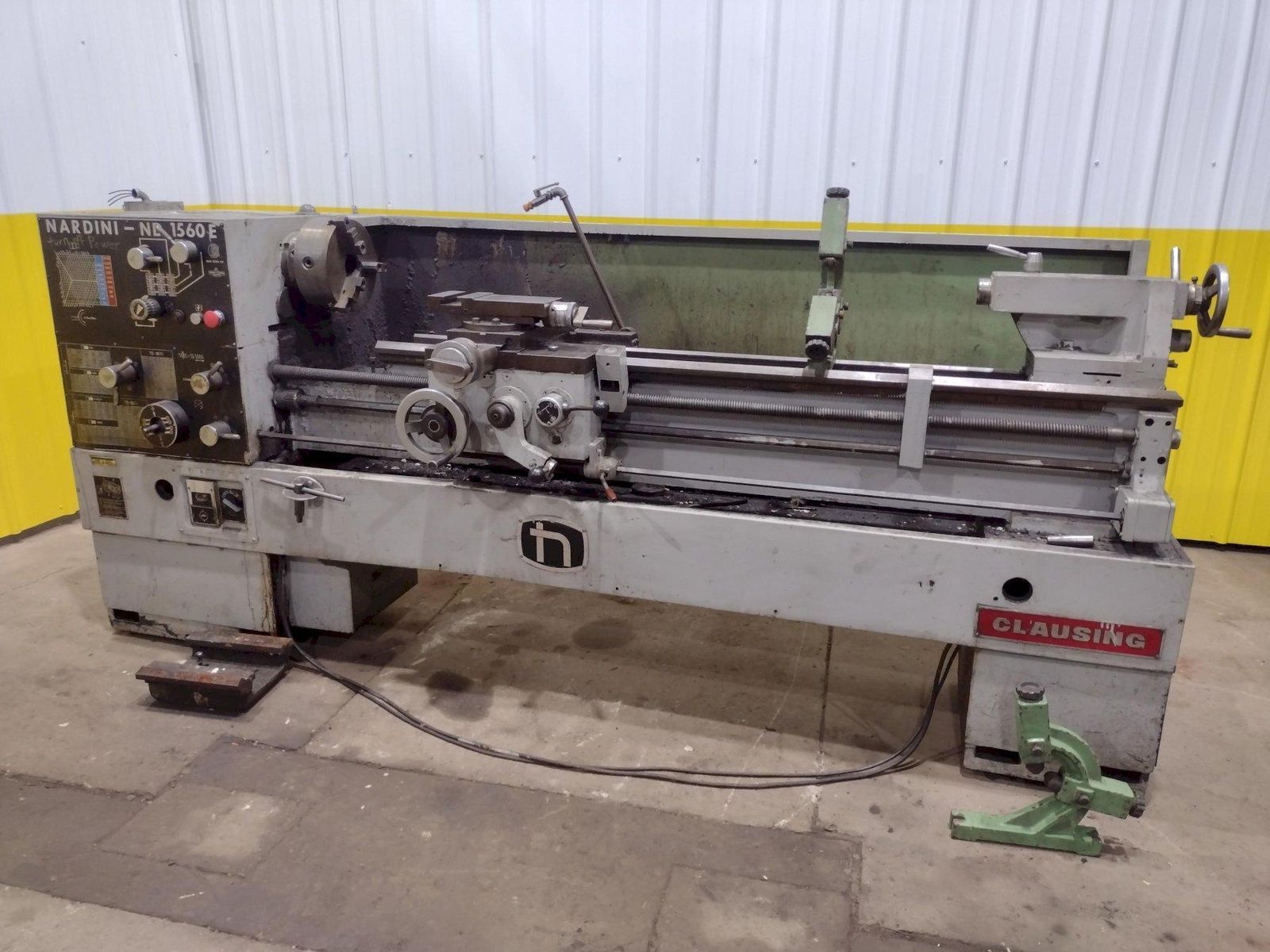

MODEL ............................... ND 1560ESwing Over Bed ...................... 15-3/8″Swing Over Carriage ................. 8-5/8″Swing In Gap ........................ 22.7"Gap Length In Front Of Face Plate ... 7-7/8"Spindle Bore ........................ 2-1/32″Between Centers ..................... 60″Tailstock, Spindle Travel ........... 8-1/2″Tailstock, Spindle Diameter ......... 2-3/8″Tailstock, Spindle Taper ............ #4MTSpindle Speeds ...................... (18) 25 to 2000 RPMSpindle Nose ........................ D1-6Metric Threads ...................... (54) 0.40 - 18.472Inch Threads ........................ (54) 42-2.3/4Module Threads ...................... (54) 0.2 - 3.5Diametral Pitch Threads ............. (54) 84-3Pitch of Leadscrew .................. 4 TPICross Feeds ......................... 0008-0.0406” / revLongitudinal Feeds .................. 0.0021-0.0976”/ revSpindle Horsepower .................. 7.5 HP
