Machine Information

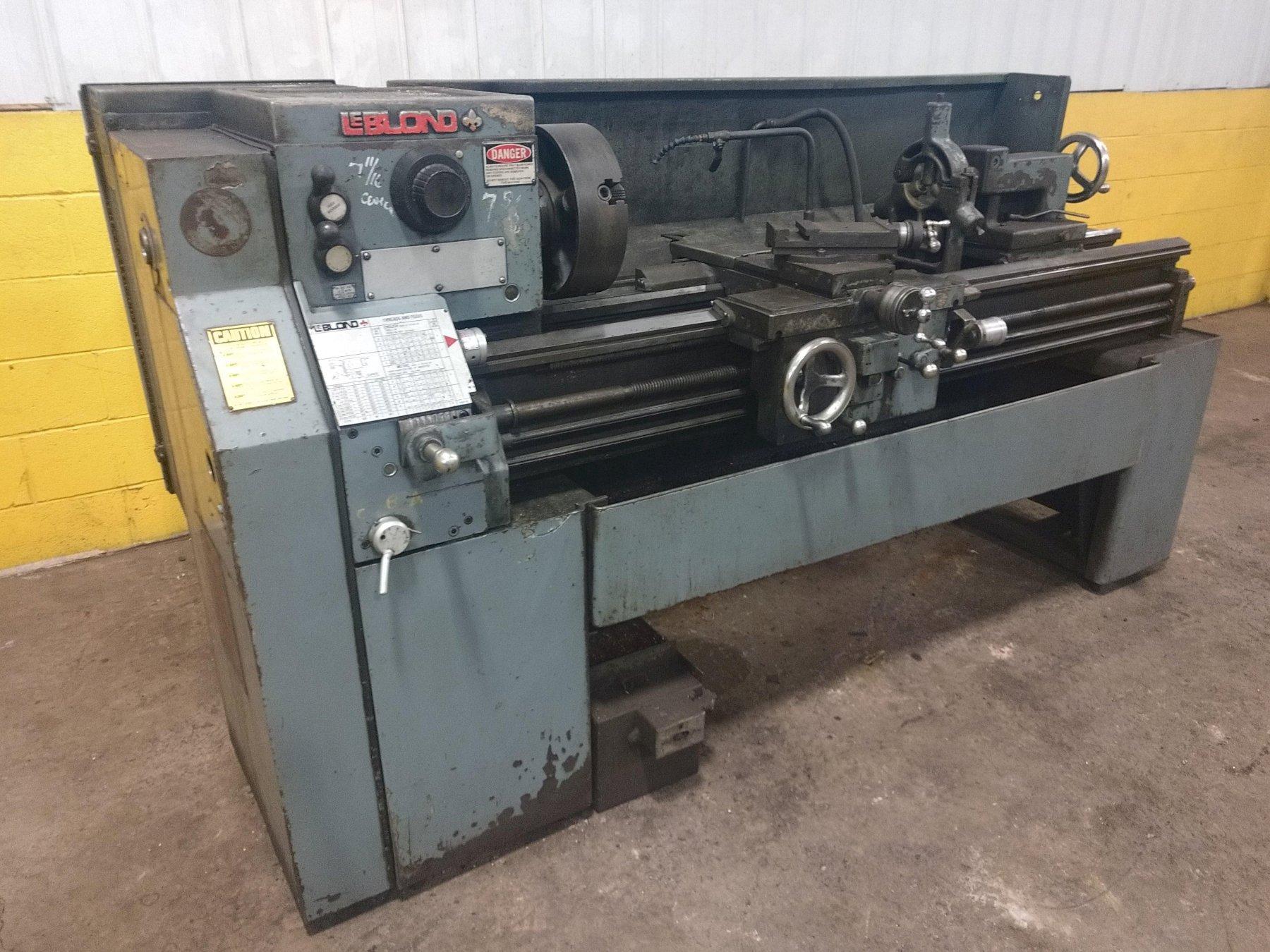

15" X 50" LEBLOND MODEL REGAL SERVO 10C WITH METRIC ENGINE LATHE: STOCK #14152

Stock #: 14152

Equipped With

SERIAL ...................... 10C416
MODEL ....................... REGAL SERVO 10C
SWING OVER WAYS ............. 15"
SWING OVER CROSS SLIDE ...... 10.25"
DISTANCE BETWEEN CENTERS .... 50"
BED LENGTH .................. 6'
SPINDLE SPEEDS............... (12) 45 TO 1800 RPM
4-JAW CHUCK ................. 12"
SPINDLE BORE ................ 2.5"
STANDARD THREADS ............ 3.5 TO 64 TPI
STANDARD FEEDS .............. .0032 TO .059 IPR
METRIC THREADS .............. .25 TO 12 MM
METRIC FEEDS ................ .045 TO 2.4 MMPR
TAPER ATTACHMENT ............ YES
STEADY REST ................. YES
CHIP PAN WITH COOLANT ....... YES
TAILSTOCK ................... YES
MOTOR ....................... 5 HP

Buy Machines

15" X 50" LEBLOND MODEL REGAL SERVO 10C WITH METRIC ENGINE LATHE: STOCK #14152

Stock # 14152

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 10C416
MODEL ....................... REGAL SERVO 10C
SWING OVER WAYS ............. 15"
SWING OVER CROSS SLIDE ...... 10.25"
DISTANCE BETWEEN CENTERS .... 50"
BED LENGTH .................. 6'
SPINDLE SPEEDS............... (12) 45 TO 1800 RPM
4-JAW CHUCK ................. 12"
SPINDLE BORE ................ 2.5"
STANDARD THREADS ............ 3.5 TO 64 TPI
STANDARD FEEDS .............. .0032 TO .059 IPR
METRIC THREADS .............. .25 TO 12 MM
METRIC FEEDS ................ .045 TO 2.4 MMPR
TAPER ATTACHMENT ............ YES
STEADY REST ................. YES
CHIP PAN WITH COOLANT ....... YES
TAILSTOCK ................... YES
MOTOR ....................... 5 HP
