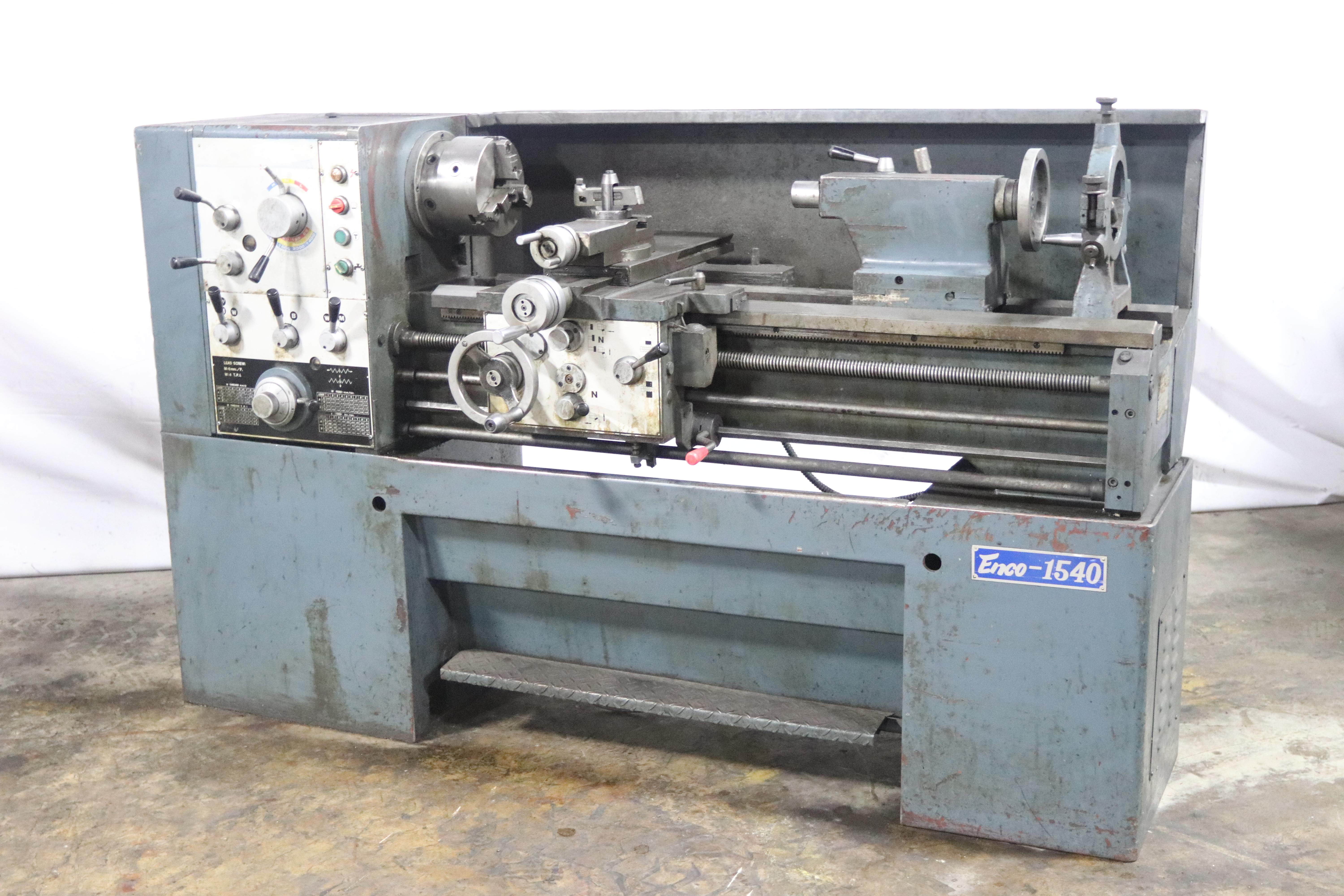

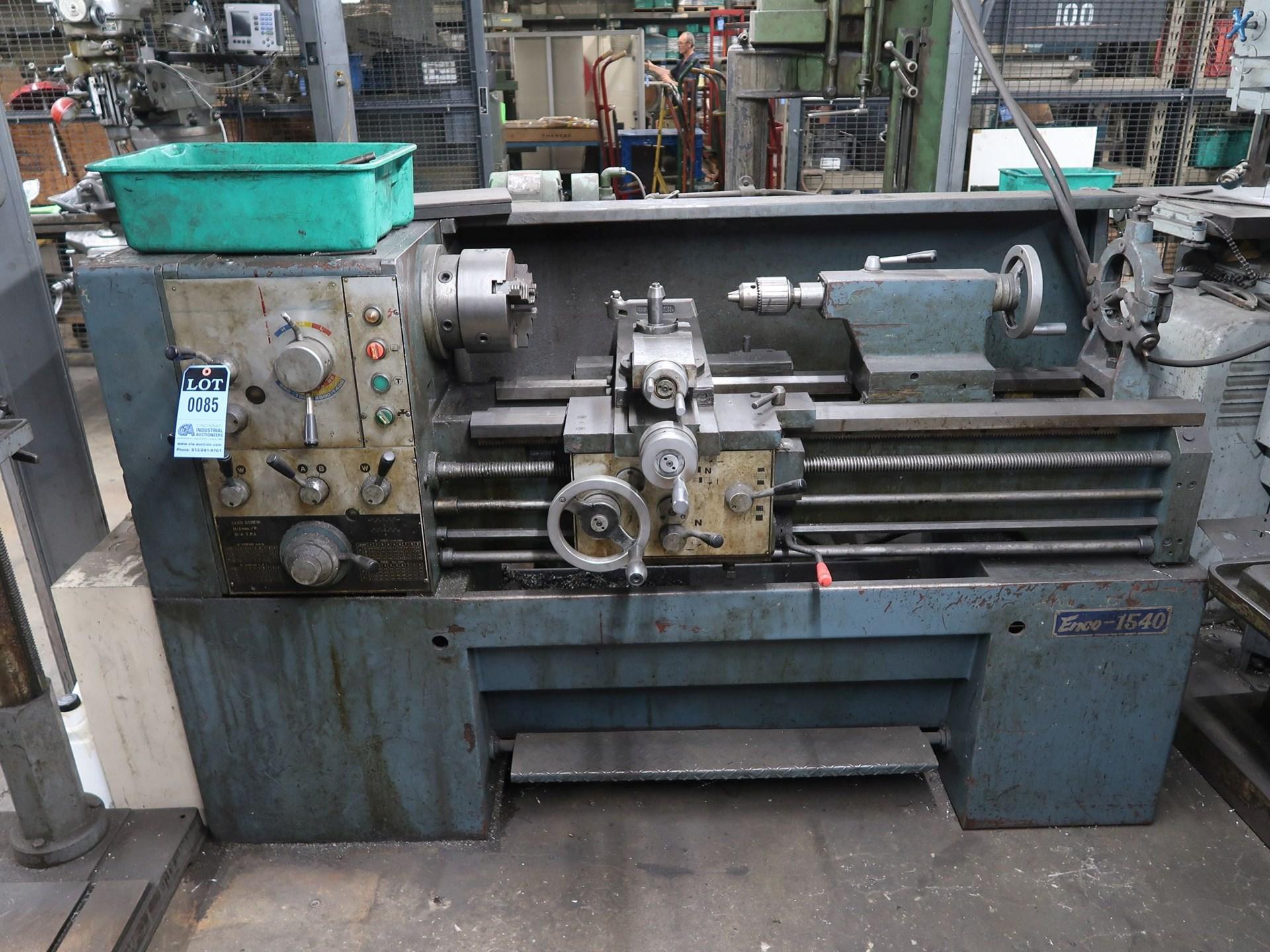

SERIAL ................... #5
MODEL .................... 111-1540
SWING .................... 15"
SWING IN GAP ............. 24"
SWING OVER CROSS SLIDE ... 9"
CENTERS .................. 40"
CHUCK .................... 8" 3 JAW
SPEEDS ................... (12) 45 TO 1500 RPM
SPINDLE HOLE ............. 2.125"
STANDARD THREADS ......... 4 TO 56 TPI
METRIC THREADS ........... .5 TO 7 MM
THREAD DIAL ............. YES
FEEDS .................... .002 TO .028 IPR
FEEDS, METRIC ............ .05 TO .70 MM PER REVOLUTION
STEADY REST .............. 5.5" 3 POINT
TAIL STOCK ............... #4 MORSE TAPER (1.23")
FOOT BRAKE ............... YES
MOTOR .................... 5 HP
| Specifications | ||
|---|---|---|
| Chuck Size | 8 inches | |
| RPM | 1500 | |
| Swing in Gap | 24 inches | |
| Spindle Speed RPM | 1500 | |
| Main Motor | 5 | |
| Swing | 15 inches | |
| Centers | 40 inches | |
| Spindle Bore | 2.125 inches | |
| Power | 5 horsepower | |
| Swing Over Cross Slide | 9 inches | |
Brand
ENCO
Type
Lathes, Engine
Stock No.
10747
 |
419-269-2000 |
Stock #: 10747
SERIAL ................... #5
MODEL .................... 111-1540
SWING .................... 15"
SWING IN GAP ............. 24"
SWING OVER CROSS SLIDE ... 9"
CENTERS .................. 40"
CHUCK .................... 8" 3 JAW
SPEEDS ................... (12) 45 TO 1500 RPM
SPINDLE HOLE ............. 2.125"
STANDARD THREADS ......... 4 TO 56 TPI
METRIC THREADS ........... .5 TO 7 MM
THREAD DIAL ............. YES
FEEDS .................... .002 TO .028 IPR
FEEDS, METRIC ............ .05 TO .70 MM PER REVOLUTION
STEADY REST .............. 5.5" 3 POINT
TAIL STOCK ............... #4 MORSE TAPER (1.23")
FOOT BRAKE ............... YES
MOTOR .................... 5 HP
