Machine Information

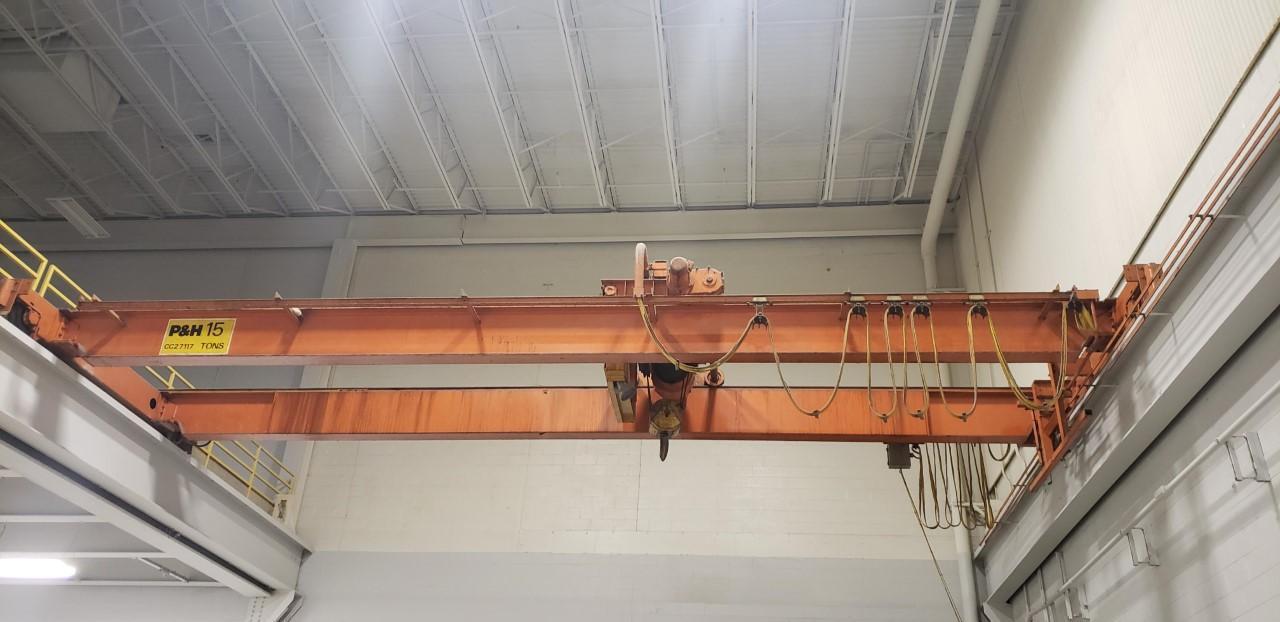

15 TON X 38'8" P & H LOW PROFILE DOUBLE GIRDER OVERHEAD BRIDGE CRANE: STOCK 14371

Stock #: 14371

Equipped With

SERIAL ....................... CC27117
CAPACITY ..................... 15 TON
SPAN ......................... 38'8"
LIFT ......................... 26'10"

CLASS ........................ C
SPREAD ....................... 7'
TOTAL WEIGHT ................. 17100 LBS

HOIST SPEED .................. 15/5 FPM
HOIST MOTOR .................. 15/5 HP

TROLLEY SPEED ................ 80 FPM VARIABLE
TROLLEY MOTOR ................ 1 HP
TROLLEY WHEELS ............... 4 @ 9" DIAMETER

BRIDGE SPEED ................. 120 FPM VARIABLE
BRIDGE MOTORS ................ (2) 1 HP EACH
BRIDGE WHEELS ................ 4 @ 13.5" DIAMETER
BRIDGE GIRDERS ............... W24

CONTROLS PENANT
ELECTRICAL CONTROLS FESTOONED

TOP OF CRANE TO BOTTOM OF WHEELS 3'9"

Buy Machines

15 TON X 38'8" P & H LOW PROFILE DOUBLE GIRDER OVERHEAD BRIDGE CRANE: STOCK 14371

Stock # 14371

Share Machine
Print Details

Machine Specifications

SERIAL ....................... CC27117
CAPACITY ..................... 15 TON
SPAN ......................... 38'8"
LIFT ......................... 26'10"

CLASS ........................ C
SPREAD ....................... 7'
TOTAL WEIGHT ................. 17100 LBS

HOIST SPEED .................. 15/5 FPM
HOIST MOTOR .................. 15/5 HP

TROLLEY SPEED ................ 80 FPM VARIABLE
TROLLEY MOTOR ................ 1 HP
TROLLEY WHEELS ............... 4 @ 9" DIAMETER

BRIDGE SPEED ................. 120 FPM VARIABLE
BRIDGE MOTORS ................ (2) 1 HP EACH
BRIDGE WHEELS ................ 4 @ 13.5" DIAMETER
BRIDGE GIRDERS ............... W24

CONTROLS PENANT
ELECTRICAL CONTROLS FESTOONED

TOP OF CRANE TO BOTTOM OF WHEELS 3'9"

Specifications
Tonnage 15 tons
Length of Span 38 feet
