Overview

SERIAL ...................... 6/0015/06802

SWING OVER BED .............. 15-14"

SWING OVER CROSS SLIDE ...... 9-1/2"

DISTANCE BETWEEN CENTERS .... 50"
SPINDLE HOLE ................ 2-3/16"

SPINDLE SPEEDS .............. (16) 25 TO 2000 RPM

THREADS ENGLISH ............. (45) 2 TO 72

THREADS, METRIC ............. (39) .2 TO 14

LONGITUDINAL FEEDS .......... .0015" TO .040"

CROSS FEEDS ................. .00075" TO .020"

CHUCK ....................... 10" 3 JAW

THREAD DIAL ................. YES

TRAVEL DIAL ................. YES

FOOT BRAKE .................. YES

HARD WAYS ................... YES

MAIN MOTOR .................. 7-1/2 HORSEPOWER

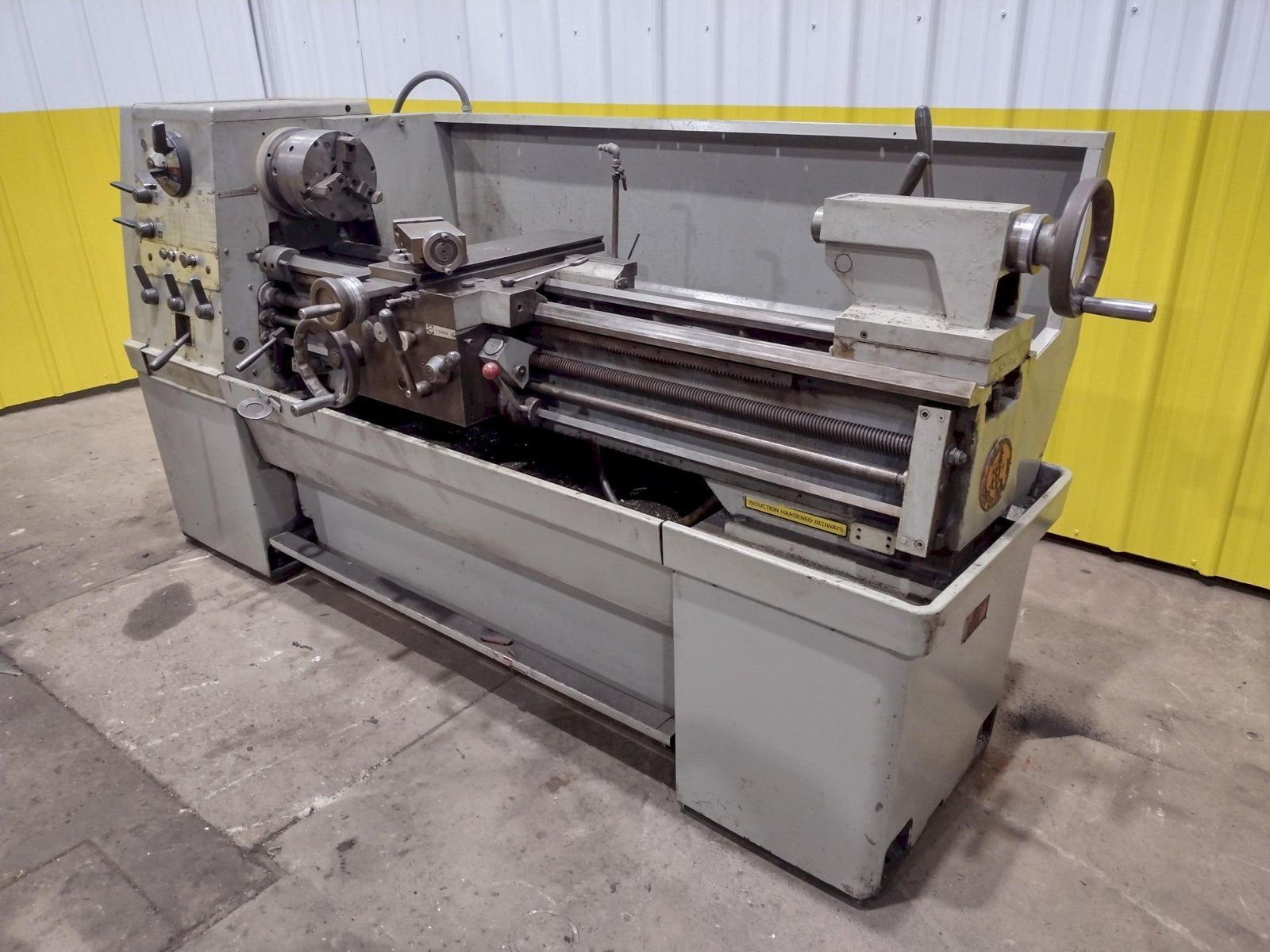

15" X 50" CLAUSING COLCHESTER MODEL #15 ENGINE LATHE, 2-3/16" HOLE: STOCK #19155

Brand
CLAUSING

Type
Lathes, Engine

Stock No.
19155

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

15" X 50" CLAUSING COLCHESTER MODEL #15 ENGINE LATHE, 2-3/16" HOLE: STOCK #19155

Stock #: 19155

Equipped With

SERIAL ...................... 6/0015/06802
SWING OVER BED .............. 15-14"
SWING OVER CROSS SLIDE ...... 9-1/2"
DISTANCE BETWEEN CENTERS .... 50"
SPINDLE HOLE ................ 2-3/16"
SPINDLE SPEEDS .............. (16) 25 TO 2000 RPM
THREADS ENGLISH ............. (45) 2 TO 72
THREADS, METRIC ............. (39) .2 TO 14
LONGITUDINAL FEEDS .......... .0015" TO .040"
CROSS FEEDS ................. .00075" TO .020"
CHUCK ....................... 10" 3 JAW
THREAD DIAL ................. YES
TRAVEL DIAL ................. YES
FOOT BRAKE .................. YES
HARD WAYS ................... YES
MAIN MOTOR .................. 7-1/2 HORSEPOWER

Overview

15" X 50" CLAUSING COLCHESTER MODEL #15 ENGINE LATHE, 2-3/16" HOLE: STOCK #19155
