Machine Information

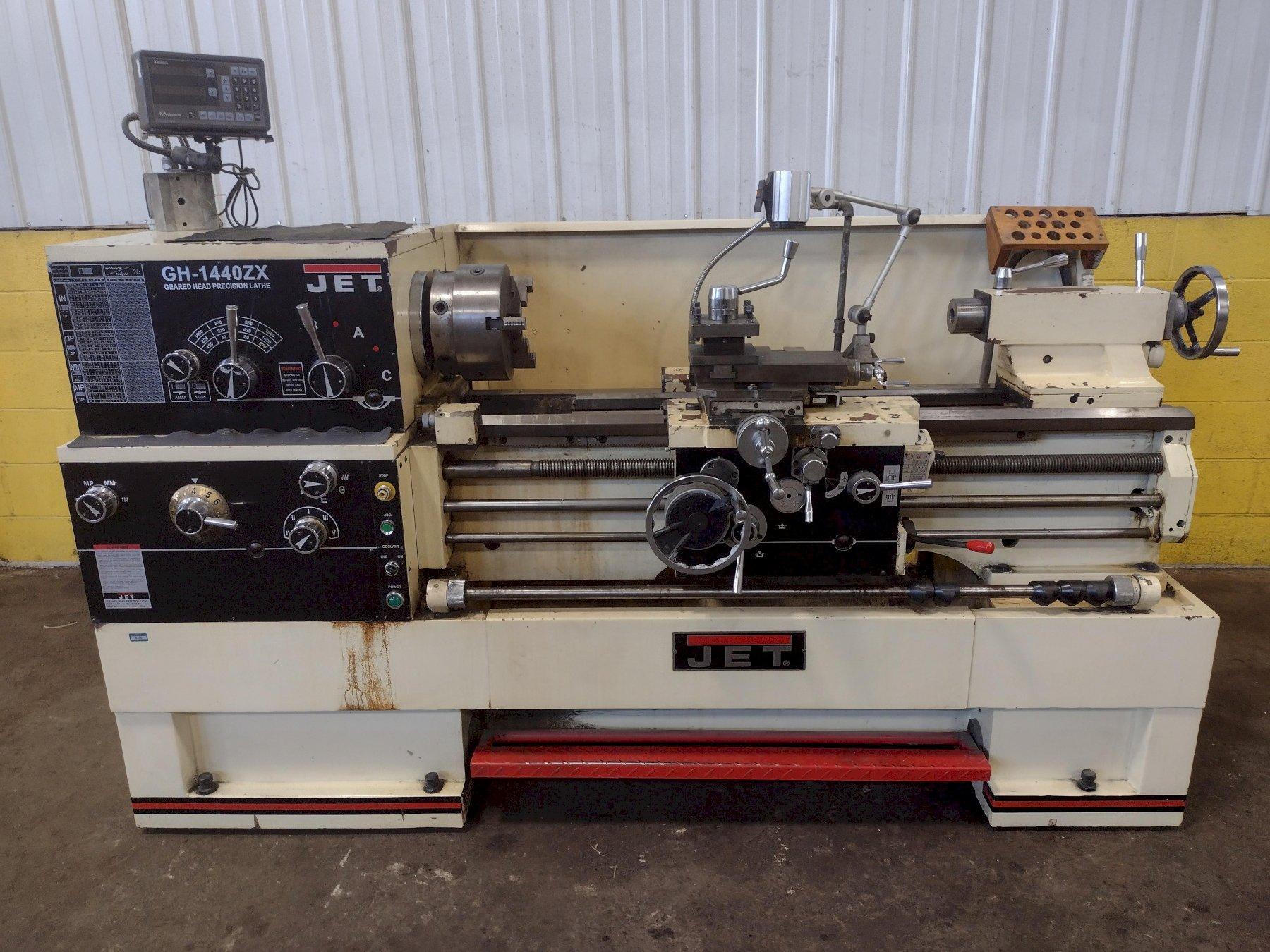

14" X 40" JET MODEL #GH-1440ZX GAP BED ENGINE LATHE, 3-1/8" HOLE: STOCK #15069

Stock #: 15069

Equipped With

MODEL ..................... GH-1440ZX
SIZE ...................... 14 x 40
SWING OVER BED ............ 14"
SWING OVER CROSS .......... 7-5/8"
SWING IN GAP .............. 23-5/8"
LENGTH OF GAP ............. 12"
SPINDLE HOLE BORE ......... 3-1/8"
SPINDLE SPEEDS ............ (12) 42 TO 1800 RPM
LONGITUDINAL FEED RATES ...
.0015 - .0900 IPR
CROSS FEED RATES ..........
.0006 - .0360 IPR
INCH THREADS .............. (61) 1-5/8 TO 72 TPI
METRIC THREADS ............ (24) .05 TO 20
CHUCK MOUNT ............... D1-8
CHUCK ..................... YES
COMPOUND SLIDE TRAVEL ..... 5-1/8"
CROSS SLIDE TRAVEL ........ 9"
CARRIAGE TRAVEL ...........
36-9/16"
TAILSTOCK SPINDLE TRAVEL .. 6"
WIDTH OF BED .............. 13-3/8"
DIGITAL READ OUT .......... 2 AXIS
FOOT BRAKE ................ YES
MOTOR .....................
7-1/2 HP

Buy Machines

14" X 40" JET MODEL #GH-1440ZX GAP BED ENGINE LATHE, 3-1/8" HOLE: STOCK #15069

Stock # 15069

Share Machine
Print Details

Machine Specifications

MODEL ..................... GH-1440ZX

SIZE ...................... 14 x 40
SWING OVER BED ............ 14"
SWING OVER CROSS .......... 7-5/8"
SWING IN GAP .............. 23-5/8"
LENGTH OF GAP ............. 12"
SPINDLE HOLE BORE ......... 3-1/8"
SPINDLE SPEEDS ............ (12) 42 TO 1800 RPM
LONGITUDINAL FEED RATES ...
.0015 - .0900 IPR
CROSS FEED RATES ..........
.0006 - .0360 IPR
INCH THREADS .............. (61) 1-5/8 TO 72 TPI
METRIC THREADS ............ (24) .05 TO 20
CHUCK MOUNT ............... D1-8
CHUCK ..................... YES
COMPOUND SLIDE TRAVEL ..... 5-1/8"
CROSS SLIDE TRAVEL ........ 9"
CARRIAGE TRAVEL ...........
36-9/16"
TAILSTOCK SPINDLE TRAVEL .. 6"
WIDTH OF BED .............. 13-3/8"
DIGITAL READ OUT .......... 2 AXIS
FOOT BRAKE ................ YES
MOTOR .....................
7-1/2 HP

Specifications
Dimensions 96 x 44 x 66
Weight 5187 pounds
