Machine Information

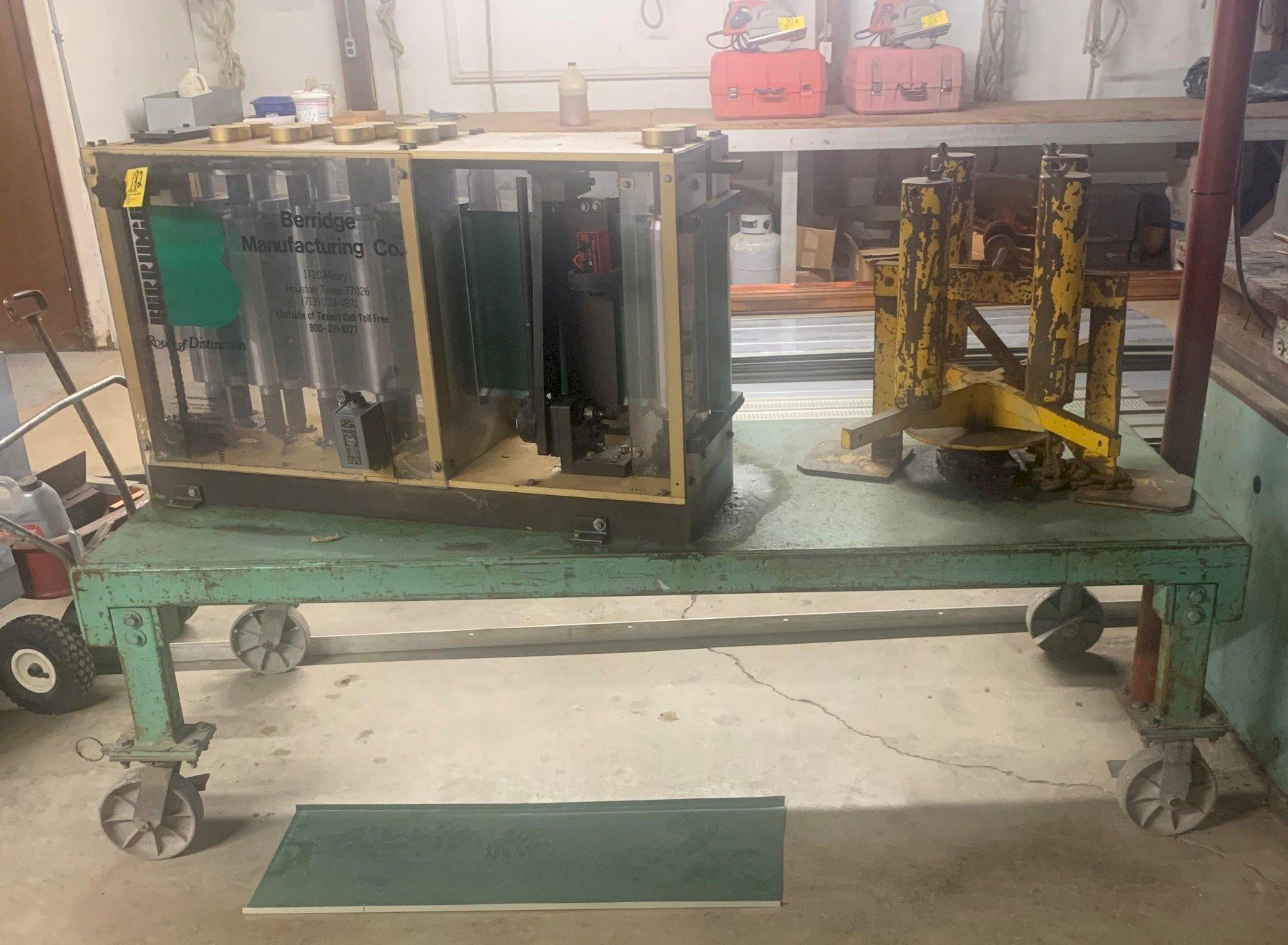

14" X 24 GA BERRIDGE MODEL SS-14 TEE-PANEL ROOF ROLLFORMER MACHINE: STOCK #18067

Stock #: 18067

Equipped With

The Berridge Model SS-14 Portable Roll-Former forms continuous length, eave-to-ridge straight Berridge Tee-Panels, and Curved Tee-Panels.  The Berridge Model SS14 Portable Roll Former also curves the factory-formed seam caps.

MODEL:  SS-14 TEE-PANEL

MATERIAL:
24 GA Galvalume

COIL & COVERAGE:
Coil Size: Nominal 14” (13 7/8”)
Coil Quantity: Requires 109.80 SF of coil per square of coverage
Snap-on Seams: Requires 94.12 LF of seams per square of coverage (Factory Formed)

MINIMUM CURVING RADII:
Convex: 4’
Concave: 6’

ACCESSORIES:
Tee-Clips: 80 clips per square (use typically at 20” o.c.)
Use 24 GA clip with Galvalume® Panels or Stainless clip with Aluminum or Copper Panels
Folding Tee-Clips: 80 clips per square (use typically at 20" o.c.)
Use with curved panels, 28 Gauge material

SPECIFICATIONS:
Mounted on heavy duty 4-wheel table
Width: 35”
Length: 88”
Height: 53”
Weight: 1,470 lbs with shipping cover
2 HP electric motor - 110V single-phase current
High Speed - 45’ per minute
Built-in uncoiler (up to 2,000 lb coil)
Stainless steel heat-treated, hardened rollers
Unique side production for ease of operation
Mechanical slitter shear
Accurate-length gauge (computer optional)
Forms continuous-length panels
All sealed bearings
Coil handling apparatus included
Curves panels and seams
