Machine Information

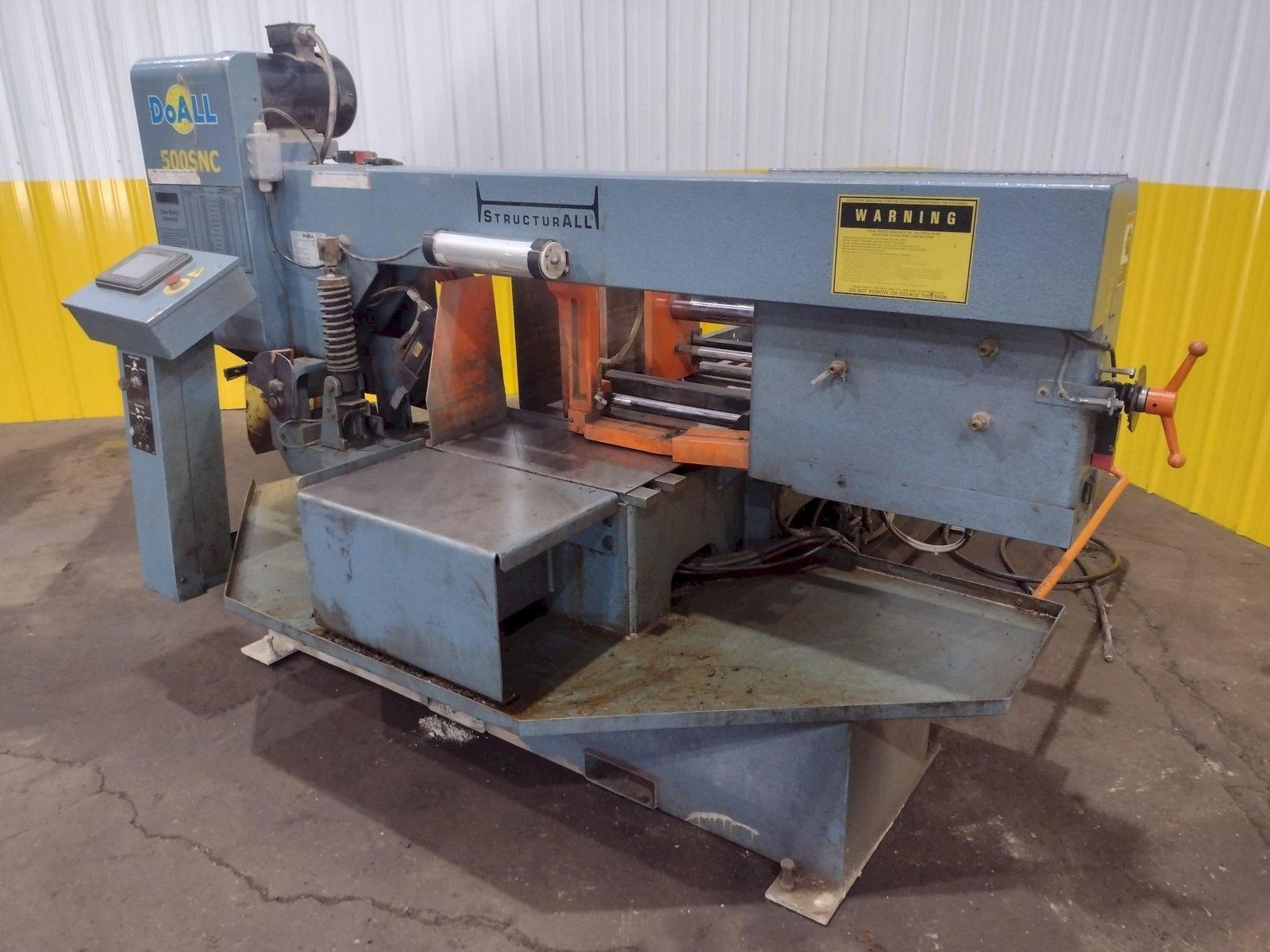

14" X 20" DOALL MODEL #500SNC 60 DEGREE MITER AUTOMATIC HORIZONTAL BAND SAW: STOCK #19150

Stock #: 19150

Equipped With

SERIAL .......................... 592-13171
MODEL ........................... #500 SNC
NEW ............................. 2013


ROUND CUTTING CAPACITY AT 90° ... 14" DIA
ROUND CUTTING CAPACITY AT 45°.... 13" DIA
RECTANGLE CAPACITY .............. 14"H X 13"W


ROUND CUTTING CAPACITY AT 60° ... 10"
RECTANGLE CAPACITY .............. 14"H x 8"W

MAX BUNDLE CAPACITY ............. 14"H X 20"W
MIN BUNDLE CAPACITY ............. 1/4"H X 6"W

HEAD SWIVEL ..................... 60"

INFINITELY VARIABLE BLADE SPEED . 50-400FPM / 15-120MPM)
MAX AUTO INDEX LENGTH ........... .25-40MM
MIN AUTO INDEX LENGTH ........... 6.35-1,016MM
MIN BUTT END IN AUTOMATIC ....... 18"
BLADE WHEEL DIAMETER ............ 20"

BLADE SIZES:
1-1/4"W X .042"THICK X 197"L
32"W X 1.1"THICK X 5,003"L

MATERIAL PASS LINGE HEIGHT ...... 29"

VISE HYDRAULIC:
INDEX ROLLER LOAD CAPACITY ...... 750 LBS
TABLE LOAD CAPACITY ............. 1800 LBS

MAIN MOTOR ...................... 5 HP
HYDRAULIC MOTOR ................. 2 HP
HYDRAULIC SYSTEM CAPACITY ....... 12 GALLONS
