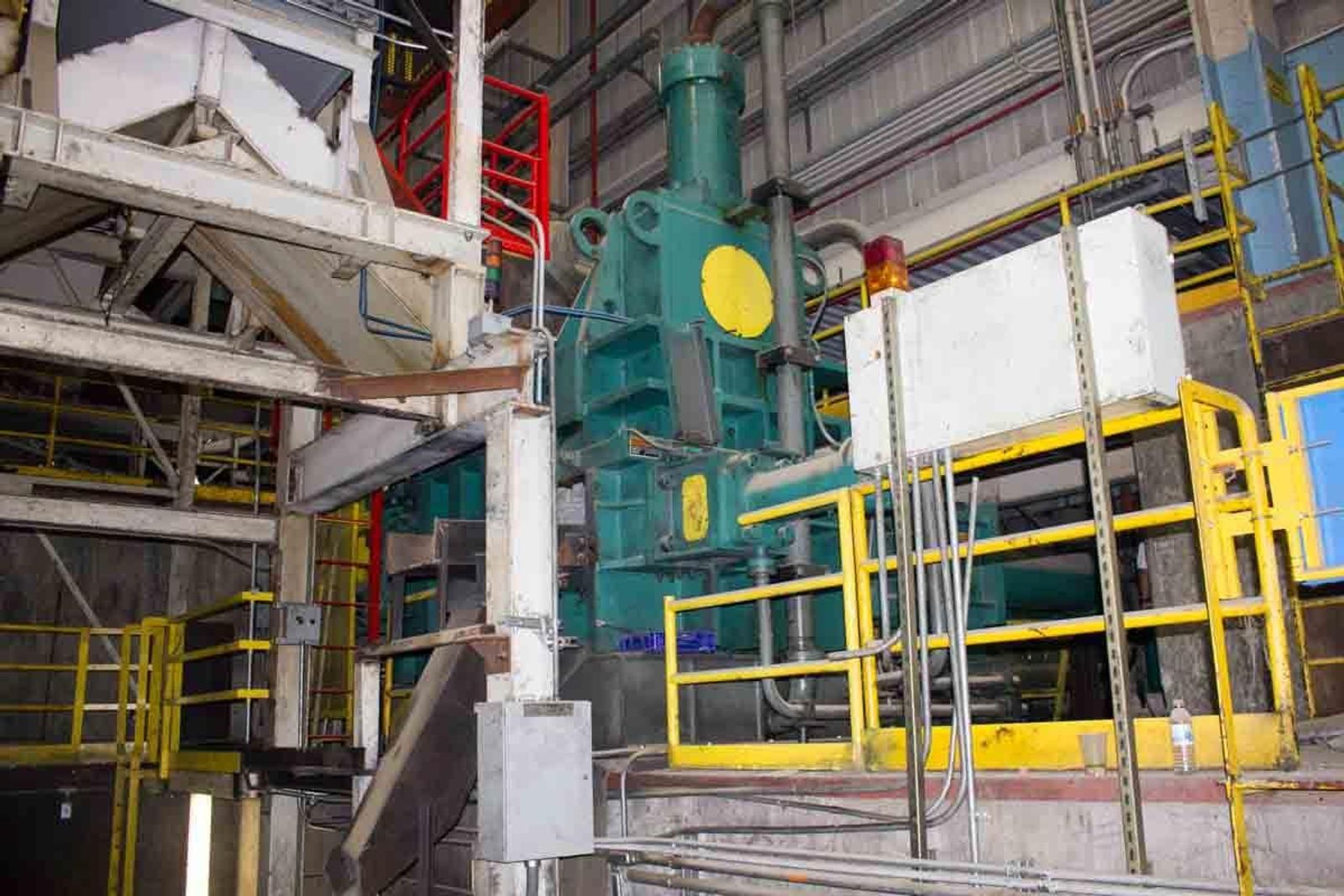

SERIAL ......................... 980629 MODEL .......................... TGS-101A YEAR ........................... 1998 PRESS BOX DIMENSIONS ........... 40"W X 36"D X 100"L CHARGING BOX OPENING ........... 38"W X 73"L BALE WEIGHT: STEEL CLIPS .................... 215 LBS COOPER WIRE & SHEET ............ 300 LBS ALUMINUM SCALPINGS ............. 100 LBS BALE SIZE ...................... 14"W X 14"D X 14"H BALING CYCLE ................... 28 SECONDS (130 CYCLES/HR) HYDRAULIC SYSTEM: CYLINDERS: FIRST COMPRESSION .............. 9" BORE/102 TONS SECOND COMPRESSION ............. 14" BORE/246 TONS THIRD COMPRESSION .............. 14"BORE/246 TONS BALE DOOR ...................... 7" BORE/62 TONS PUMPS: (4) MAIN PUMPS ................. 52 GPM @ 3,200 PSI (4) MAIN PUMPS ................. 33 GPM @ 2,200 PSI PILOT PUMP ..................... 18/8 GPM @2,000/900 PSI FILTER PUMP .................... 120 GPM @ 40 PSI COOLANT PUMP ................... 120 GPM @40 PSI ELECTRIC MOTORS: MAIN SYSTEM .................... (2) 100 HP @1,750 RPM PILOT SYSTEM ................... 25 HP @ 1,750 RPM FILTER SYSTEM .................. 7-1/2 HP @ 3,500 RPM COOLING SYSTEM ................. 7-1/2 HP @ 3,500 RPM EQUIPPED WITH: DIGIGAL PROGRAMMABLE CONTROL STATION (NEMA XII) DOUBLE ACTING TEFLON PROTECTED CYLINDERS, THREE COMPRESSIONS 4 EDGE SHEARING KNIVES IN PRESS FRAME & FIRST COMPRESSION RAM PRESS BOX, BAILING CHAMBER & RAM WEAR SURFACES ARE FITTED WITH REPLACEABLE WEAR PLATES OF HEAT TREATED ALLOY STEEL AIR COOLED OIL HEAT EXCHANGER FILTERING & COOLING BY COMBINATION PF SCREENS, TANK MAGNETS & REPLACEABLE CARTRIDGE TYPE MICRO FILTERS INDIVIDUAL OVERLOAD PRESSURE RELIEF VALVES ON PUMPS MANUAL/SEMI- AUTOMATIC & AUTOMATIC OPERATION MODES HUGE ASSORTMENT OF EXTRA PARTS & CYLINDER
| Specifications | ||
|---|---|---|
| Bale Size (L) | 14 inches | |
| Bale Size (W) | 14 inches | |
| Bale Size (H) | 14 inches | |
Brand
HARRIS
Type
Balers
Stock No.
10126
 |
419-269-2000 |
Stock #: 10126
SERIAL ......................... 980629 MODEL .......................... TGS-101A YEAR ........................... 1998 PRESS BOX DIMENSIONS ........... 40"W X 36"D X 100"L CHARGING BOX OPENING ........... 38"W X 73"L BALE WEIGHT: STEEL CLIPS .................... 215 LBS COOPER WIRE & SHEET ............ 300 LBS ALUMINUM SCALPINGS ............. 100 LBS BALE SIZE ...................... 14"W X 14"D X 14"H BALING CYCLE ................... 28 SECONDS (130 CYCLES/HR) HYDRAULIC SYSTEM: CYLINDERS: FIRST COMPRESSION .............. 9" BORE/102 TONS SECOND COMPRESSION ............. 14" BORE/246 TONS THIRD COMPRESSION .............. 14"BORE/246 TONS BALE DOOR ...................... 7" BORE/62 TONS PUMPS: (4) MAIN PUMPS ................. 52 GPM @ 3,200 PSI (4) MAIN PUMPS ................. 33 GPM @ 2,200 PSI PILOT PUMP ..................... 18/8 GPM @2,000/900 PSI FILTER PUMP .................... 120 GPM @ 40 PSI COOLANT PUMP ................... 120 GPM @40 PSI ELECTRIC MOTORS: MAIN SYSTEM .................... (2) 100 HP @1,750 RPM PILOT SYSTEM ................... 25 HP @ 1,750 RPM FILTER SYSTEM .................. 7-1/2 HP @ 3,500 RPM COOLING SYSTEM ................. 7-1/2 HP @ 3,500 RPM EQUIPPED WITH: DIGIGAL PROGRAMMABLE CONTROL STATION (NEMA XII) DOUBLE ACTING TEFLON PROTECTED CYLINDERS, THREE COMPRESSIONS 4 EDGE SHEARING KNIVES IN PRESS FRAME & FIRST COMPRESSION RAM PRESS BOX, BAILING CHAMBER & RAM WEAR SURFACES ARE FITTED WITH REPLACEABLE WEAR PLATES OF HEAT TREATED ALLOY STEEL AIR COOLED OIL HEAT EXCHANGER FILTERING & COOLING BY COMBINATION PF SCREENS, TANK MAGNETS & REPLACEABLE CARTRIDGE TYPE MICRO FILTERS INDIVIDUAL OVERLOAD PRESSURE RELIEF VALVES ON PUMPS MANUAL/SEMI- AUTOMATIC & AUTOMATIC OPERATION MODES HUGE ASSORTMENT OF EXTRA PARTS & CYLINDER
