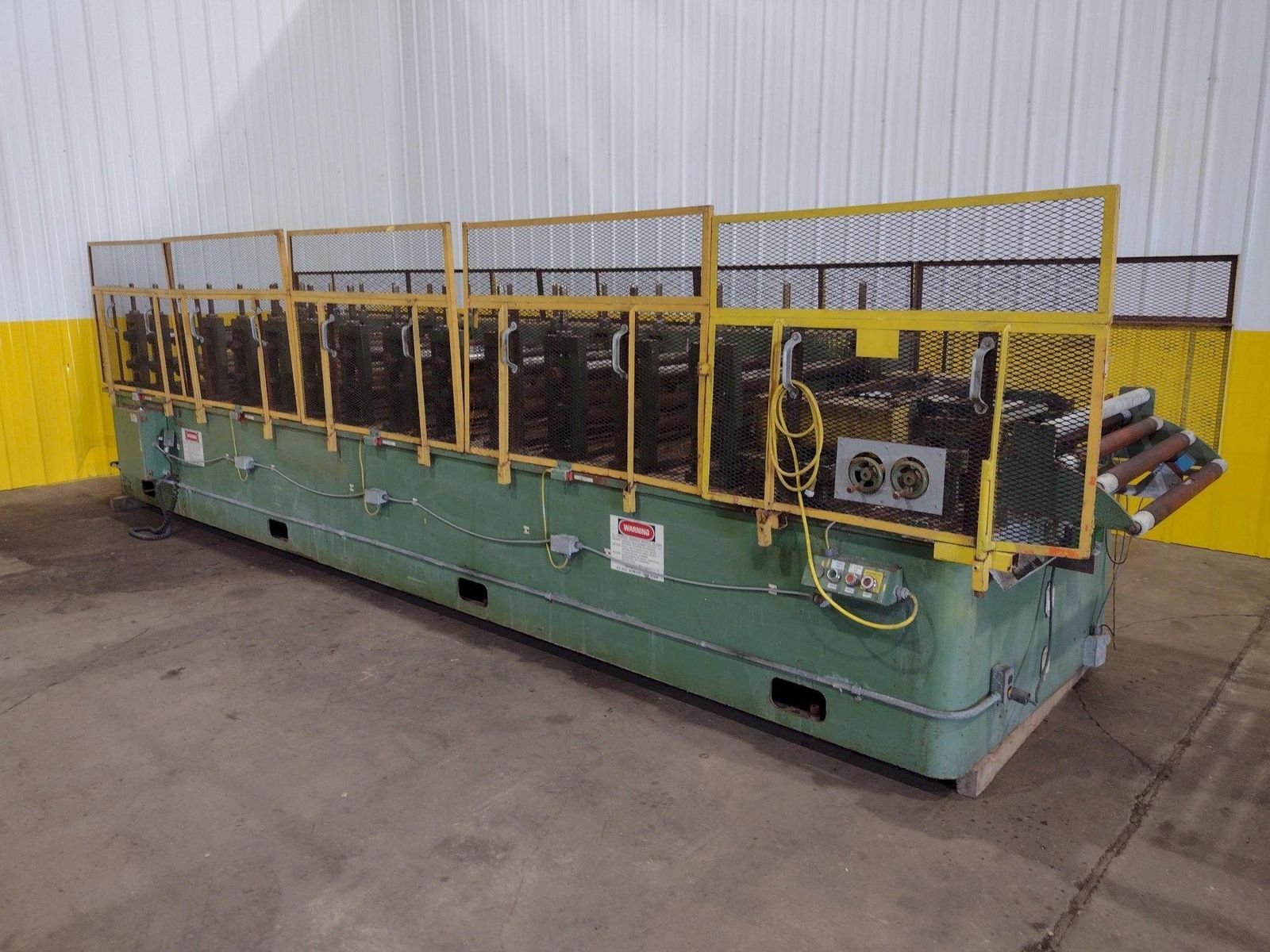

Stock #: 18117
SERIAL ...................... 12604
MODEL ....................... MC1.5-36-14
NUMBER OF STANDS ............ 14
ARBOR DIAMETER .............. 3"
ARBOR KEY ................... 1/2"
ROLL SPACING ................ 36"
HORIZONTAL CENTERS .......... 15"
VERTICAL ADJUSTMENT ......... 4" TO 7-1/2"
BASE TO BOTTOM OF SPINDLE ... 6"
DRIVE GEAR BOX .............. 10:1 RATIO
ENTRY GUIDE ................. YES
FLOOR TO BASE ............... 28.5"
Stock # 18117
SERIAL ...................... 12604
MODEL ....................... MC1.5-36-14
NUMBER OF STANDS ............ 14
ARBOR DIAMETER .............. 3"
ARBOR KEY ................... 1/2"
ROLL SPACING ................ 36"
HORIZONTAL CENTERS .......... 15"
VERTICAL ADJUSTMENT ......... 4" TO 7-1/2"
BASE TO BOTTOM OF SPINDLE ... 6"
DRIVE GEAR BOX .............. 10:1 RATIO
ENTRY GUIDE ................. YES
FLOOR TO BASE ............... 28.5"
| Specifications | ||
|---|---|---|
| Dimensions | 252 LONG x 103 WIDE (WITH MOTOR) x 69" HIGH | |
| Weight | 15500 pounds | |
