Brand
CIDAN
Type
Cut To Length Lines
Stock No.
21287
 |
419-269-2000 |
Stock #: 21287

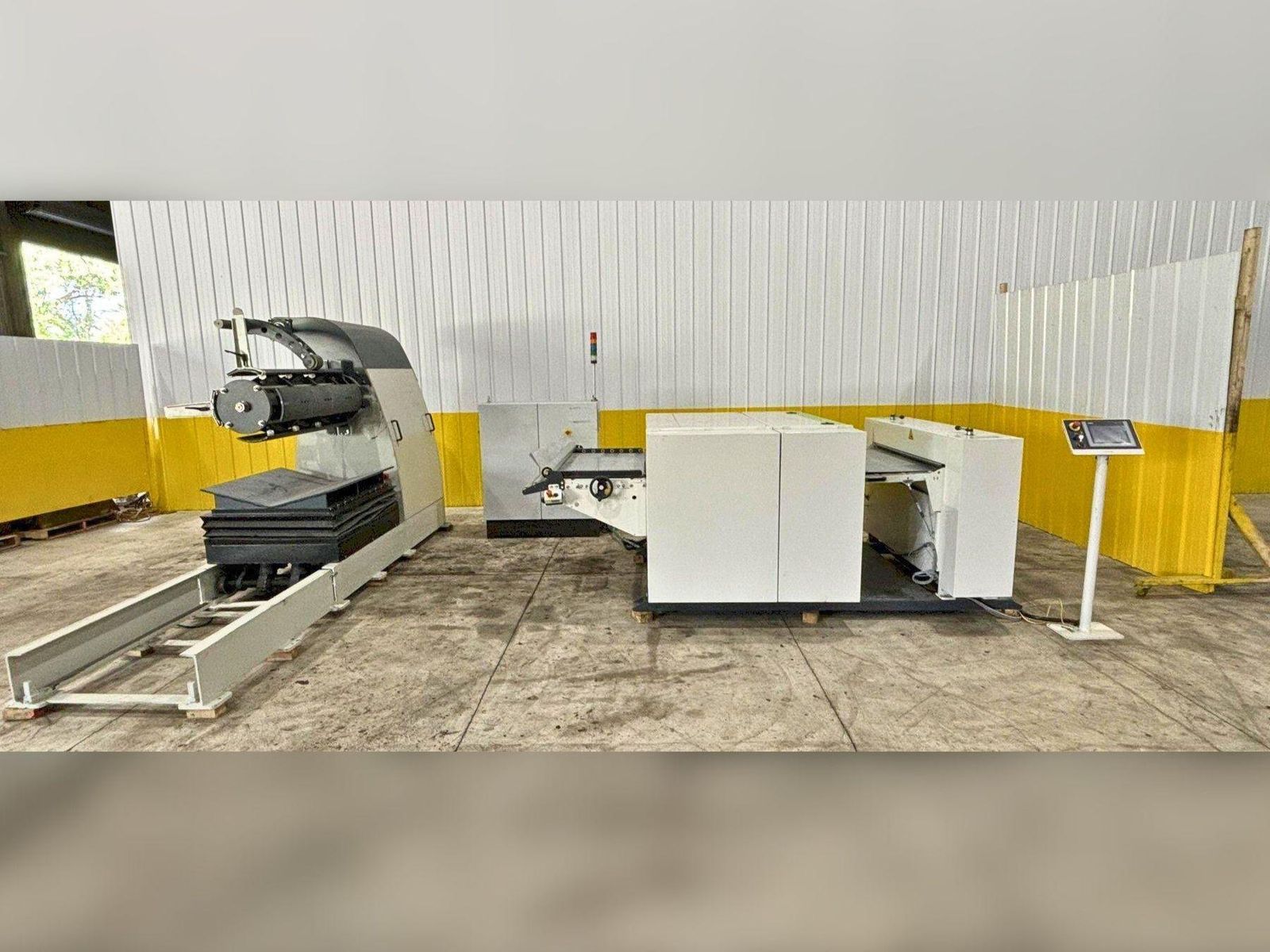

14 GA X 50" X 16,000 LBS FORSTNER (NEW 2022) COMPACT PRO SLIT & CTL AUTOMATIC SLEAR LINE: STOCK #21287CIDEN UNCOILER:
YEAR NEW .............. 2020
CONDITION ............. EXCELLENT
SERIAL ................ 12280-20
MODEL ................. QXS16C
CAPACITY .............. 16,000 LBS
COIL WIDTH ............ 51"
MANDREL EXPANSION ..... HYDRAULIC
MANDREL I.D. RANGE .... 18.3" TO 20.2"
COIL DIAMETER MAX ..... 51"
FEEDING SPEED ......... 145 FPM
SPEED CONTROLLER ...... YES
OVERARM HOLD DOWN ..... YES
ROTATION MOTOR ........ 5.5 HP
CIDAN COIL CAR:
CAPACITY .............. 16,000 LBS
IN / OUT DISTANCE ..... 51"
VERTICAL STROKE ....... 13.75"
COIL CAR MOTOR ........ 4 HP
FORSTNER SLEAR LINE:
YEAR NEW .............. 2022
CONDITION ............. EXCELLENT
SERIAL ................ 60880-10
MODEL ................. POWER COMPACT ACCESS PRO
CONTROLLER ............ FORSTNER F3
MILD STEEL THICKNESS .. 14 GA (2 mm or .078")
STAINLESS THINKNESS ... 17 GA (1.35mm or .053")
MATERIAL WIDTH ........ 15.7" TO 50" (400 TO 1270mm)
SPEED ................. 82 FPM (25 M/MIN)
STRAIGHTENING ROLLS ... 6
ROLLER DIAMETER ....... 4.33"
SLITTING SHAFT DIA .... 5.5"
SLITTING KNIVES ....... 5
SLITTING CAPACITY ..... 4 CUTS @ 12 GA
..... 5 CUTS @ 14 GA
..... 7 CUTS @ 16 GA
..... 8 CUTS @ 18 GA
..... 9 CUTS @ 20 GA
SHEARING CAPACITY ..... 12 GA
MOTOR ................. 7 HP
