Machine Information

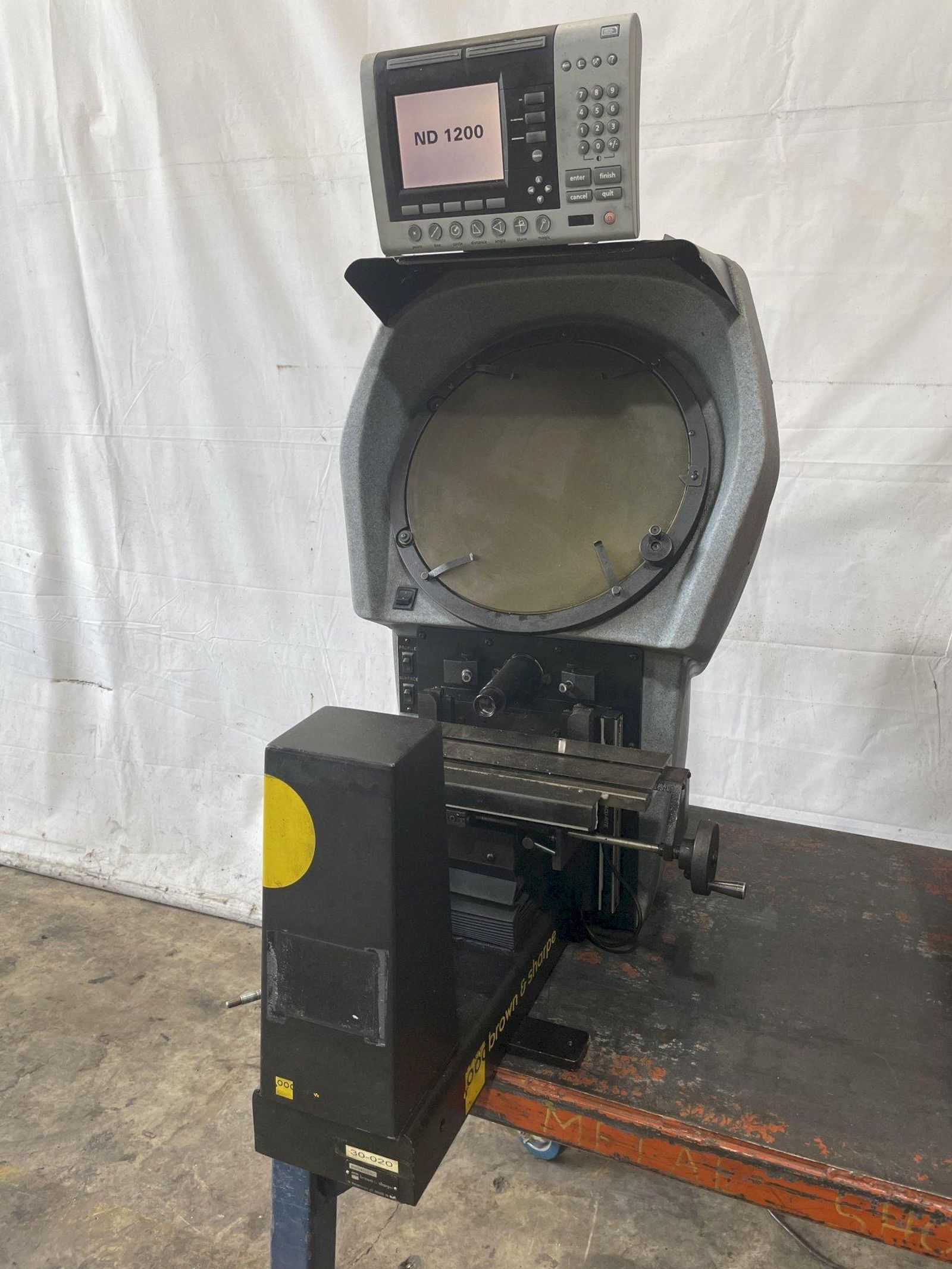

14" BROWN & SHARPE MODEL #32-3552 OPTICAL COMPARATOR WITH HEIDENHAIN QUADRA-CHEK READ OUT: STOCK 14867

Stock #: 14867

Equipped With

14" BROWN & SHARPE OPTICAL COMPARATOR
   HORIZONTAL PROJECTION BENCH TYPE

HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

MODEL: 32-3552

SCREEN DIAMETER ................... 14"
TABLE SIZE ........................ 16" X 5"
WEIGHT CAPACITY ON TABLE .......... 50 LBS.
HORIZONTAL TRAVEL ................. 7"
VERTICAL TRAVEL ................... 4"
FOCUS ............................. 2.5"
HELIX ANGLE ....................... +/- 6 DEG.

APPROXIMATE DIMS. OF MACHINE ...... 21.5W" x 53"L x 41.8"H
APPROX. MACHINE WEIGHT ............ 170 LBS.

HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY
 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS
SCALE RESOLUTION IS 0.00005"
PROTRACTOR RESOLUTION:
  VERNIER ....... 5 MINUTE
  DIGITAL ....... 1 MINUTE
FIBER OPTIC SURFACE ILLUMINATION
DIGITAL DISPLAY FOR ANGLE ADJUSTMENT OF SCREEN
FLOATING TYPE STAGE FOR EFFORTLESS MOVEMENT
HELIX ADJUSTMENT
PROFILE ILLUMINATION LAMP:  24 VOLT, 150 WATT
SURFACE ILLUMINATION LAMP:  12 VOLT, 100 WATT
(1) LENS, 20X MAGNIFICATION
115 VOLT/1 PHASE ELECTRICS
