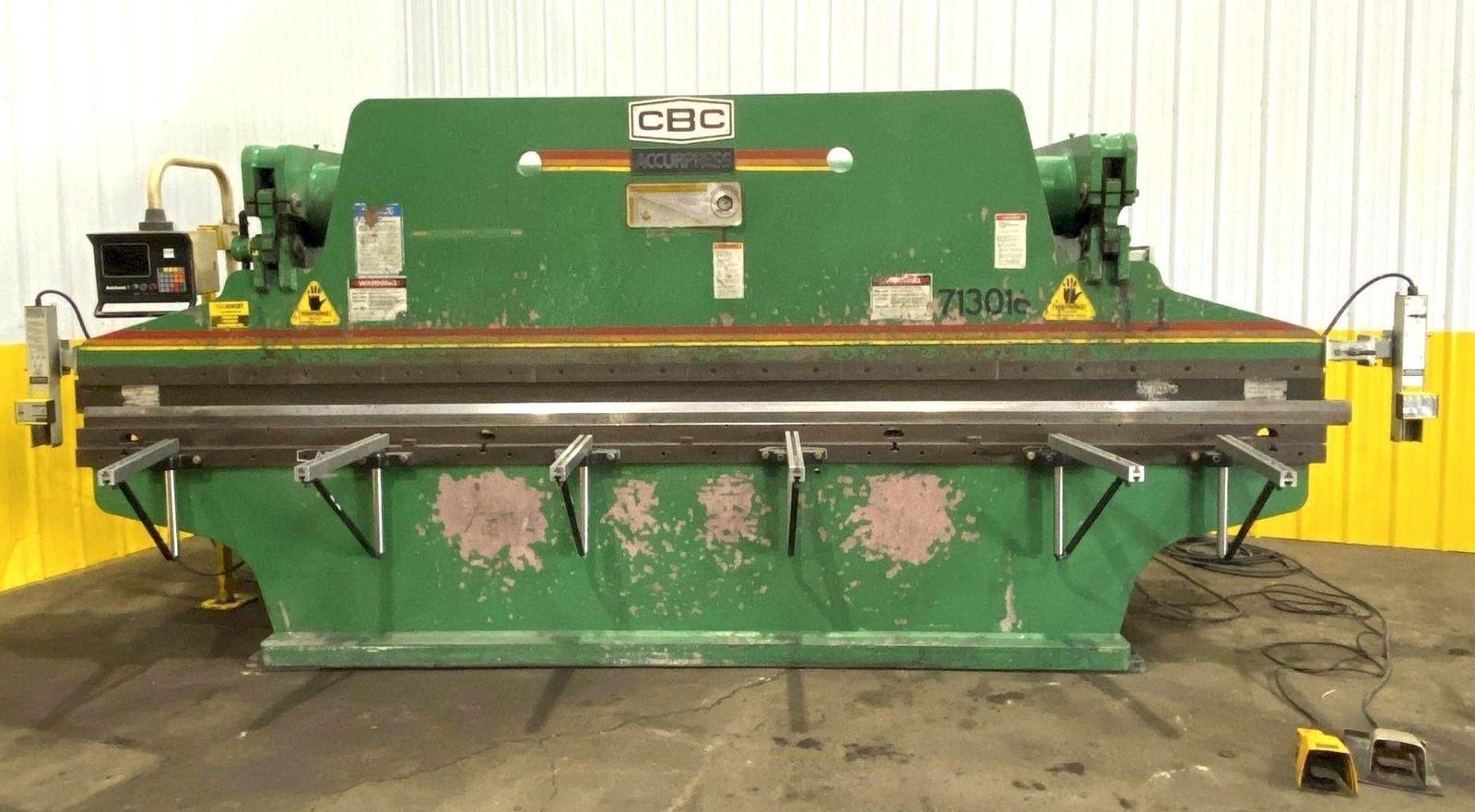

Stock #: 19172
SERIAL ........................ 683MODEL ......................... 713016YEAR NEW ...................... 1985CAPACITY ...................... 130 TONOVERALL LENGTH OF BED ......... 16' (192")DISTANCE BETWEEN HOUSING ...... 14'3" (172")STROKE ........................ 8"OPEN HEIGHT ................... 14"CLOSED HEIGHT ................. 6"
APPROACH SPEED ................ 115 IPM
BEND SPEED .................... 24 IPM
RETURN SPEED .................. 180 IPM
CYCLES PER MINUTE ............. 15
BED HEIGHT .................... 34"
TOP BED WITH .................. 6"
THROAT CLEARANCE .............. 10"POWERED BACKGUAGE ............. 36"
CONTROLS ...................... HURCO AUTOBEND 7
ELECTRIC FOOT PEDALS .......... YESLIGHT CURTAINS ................ YESMAIN MOTOR .................... 20 HP
Stock # 19172
SERIAL ........................ 683
MODEL ......................... 713016
YEAR NEW ...................... 1985
CAPACITY ...................... 130 TON
OVERALL LENGTH OF BED ......... 16' (192")
DISTANCE BETWEEN HOUSING ...... 14'3" (172")
STROKE ........................ 8"
OPEN HEIGHT ................... 14"
CLOSED HEIGHT ................. 6"
APPROACH SPEED ................ 115 IPM
BEND SPEED .................... 24 IPM
RETURN SPEED .................. 180 IPM
CYCLES PER MINUTE ............. 15
BED HEIGHT .................... 34"
TOP BED WITH .................. 6"
THROAT CLEARANCE .............. 10" POWERED BACKGUAGE ............. 36"
CONTROLS ...................... HURCO AUTOBEND 7
ELECTRIC FOOT PEDALS .......... YESLIGHT CURTAINS ................ YES
MAIN MOTOR .................... 20 HP
| Specifications | ||
|---|---|---|
| Dimensions | 192" X 56" X 94" HIGH | |
| Weight | 25000 pounds | |
