| Specifications | ||
|---|---|---|
| Weight | 1100 pounds | |
Brand
VICTOR
Type
Lathes, Engine
Stock No.
20342
 |
419-269-2000 |
Stock #: 20342

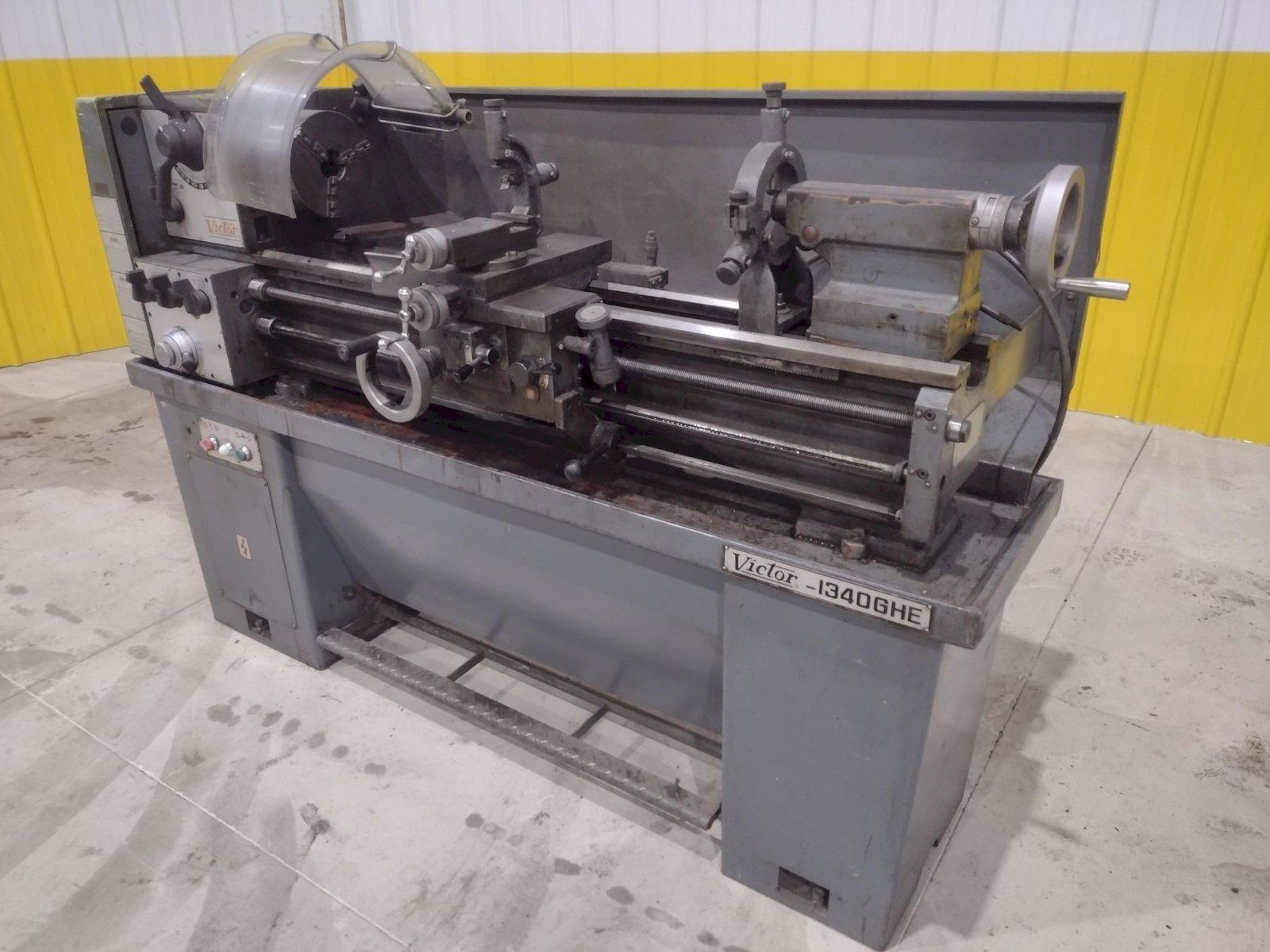

SERIAL ........................... 085-11-428
NEW .............................. 1985MODEL ............................ 1340 GHESWING OVER WAYS .................. 13"SWING IN GAP ..................... 18-3/4"DISTANCE BETWEEN CENTERS ......... 40"SWING OVER CROSS SLIDE ........... 7-3/4"SPINDLE SPEEDS ................... (8) 70 TO 2000 RPMLONGITUDINAL FEEDS ............... (32) .0019 TO.0273 IPRCROSS FEEDS ...................... (32) .0007 TO .0094 IPRTHREADS .......................... 8 TO 112 TPIMETRIC THREADS ................... .02 TO 5 MM PITCHDIAMETER OF SPINDLE HOLE ......... 1-1/2"THREAD DIAL ...................... YESREMOVABLE GAP .................... YESHARD WAYS ........................ YESCOOLANT .......................... YES
FOOT BRAKE ....................... YES
STEADY REST ...................... 4.25"
FOLLOW REST ...................... YES
CHUCK ............................ 7.5" 3 JAWSPINDLE MOTOR, HORSEPOWER ........ 3
